MCH6122 Series

Bipolar Transistor, -30V, -3A, Low VCE(sat), PNP Single MCPH6

Catalog

Bipolar Transistor, -30V, -3A, Low VCE(sat), PNP Single MCPH6

Part	Mounting Type	Supplier Device Package	Operating Temperature	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	Transistor Type	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic

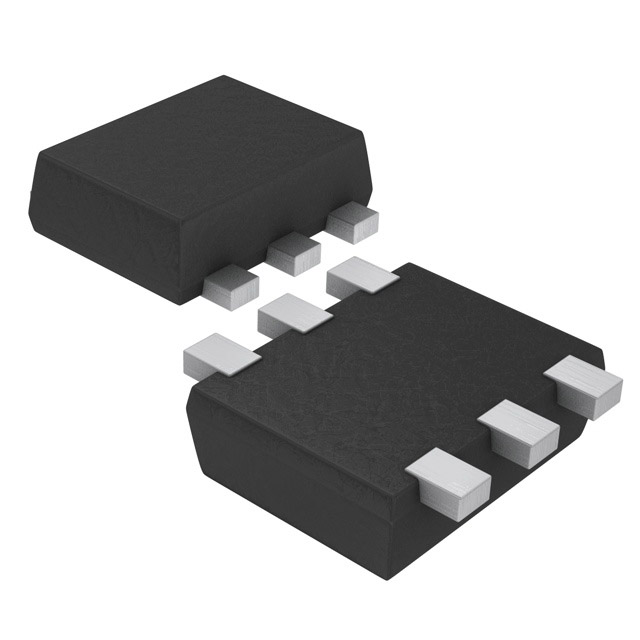

ON Semiconductor MCH6122-TL-E	Surface Mount	6-MCPH	150 °C	6-SMD Flat Leads	200	3 A	1 W	30 V	400 MHz	PNP	100 nA	180 mV

Bipolar Transistor, -30V, -3A, Low VCE(sat), PNP Single MCPH6

• Adoption of MBIT process

• Large current capacity

• Low collector-to-emitter saturation voltage

• High speed switching

• Ultrasmall-sized package permitting applied sets to be made small and slim (0.85mm)

• High allowable power dissipation

• Halogem free compliance

MCH6122 is Bipolar Transistor, -30V, -3A, Low VCE(sat), PNP Single MCPH6 for Relay drivers, lamp drivers, motor drivers, charger circuit Application.
