FKCVW Series

Pluggable Terminal Blocks 8 pos 5.08mm pitch Plug 24-12AWG Spring

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 8 pos 5.08mm pitch Plug 24-12AWG Spring

Catalog

Pluggable Terminal Blocks 8 pos 5.08mm pitch Plug 24-12AWG Spring

Part	Insulation Height	Insulation Height	Wire Strip Length	Material Flammability Rating	Housing Material	Pitch	Pitch	Mounting Type	Type	Voltage - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Current - IEC	Contact Mating Finish	Number of Positions	Positions Per Level	Color	Current - UL	Features	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Plug Wire Entry [custom]	Number of Levels	Termination Style	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Positions Per Level [custom]
Phoenix Contact 1873867	16.8 mm	0.661 "	10 mm	UL94 V-0	Polyamide (PA) Nylon	5.08 mm	0.2 in	Free Hanging (In-Line)	Plug Female Sockets	630 V	12 AWG	26 AWG	300 V	12 A	Tin	8	8	Green	10 A	Mating Flange Retention Latches (Non-Wire Side)	2.5 mm²	0.2 mm²	270 °	1	Push-In Spring Screwless - Leg Spring

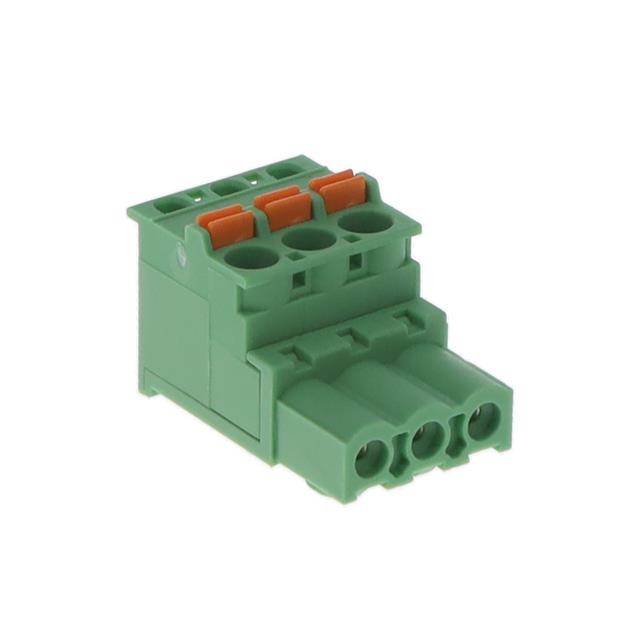

Phoenix Contact 1873663	16.8 mm	0.661 "	10 mm	UL94 V-0	Polyamide (PA) Nylon	5.08 mm	0.2 in	Free Hanging (In-Line)	Plug Female Sockets	630 V	12 AWG	26 AWG	300 V	12 A	Tin		3	Green	10 A		2.5 mm²	0.2 mm²	270 °	1	Push-In Spring Screwless - Leg Spring

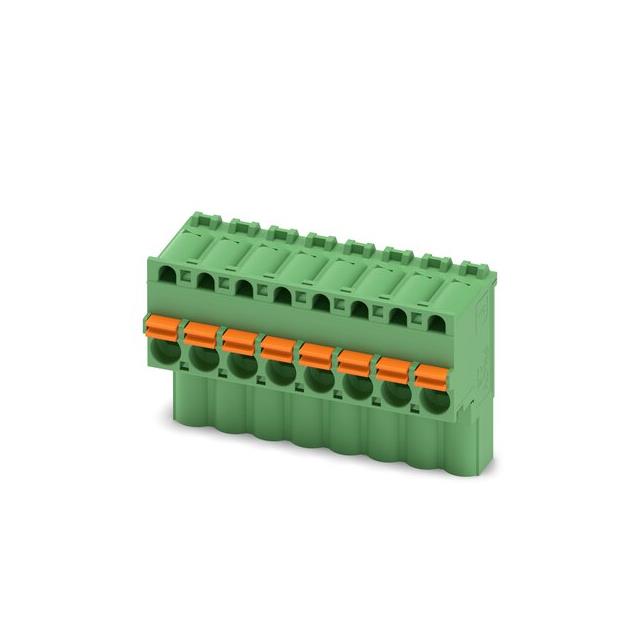

Phoenix Contact 1910092	16.8 mm	0.661 "	10 mm	UL94 V-0	Polyamide (PA) Nylon	5 mm	0.197 in	Free Hanging (In-Line)	Plug Female Sockets	630 V	12 AWG	26 AWG	300 V	12 A	Tin	8	8	Green	10 A		2.5 mm²	0.2 mm²	270 °	1	Push-In Spring Screwless - Leg Spring	2.5 mm˛	0.2 mm˛
Phoenix Contact 1873650	16.8 mm	0.661 "	10 mm	UL94 V-0	Polyamide (PA) Nylon	5.08 mm	0.2 in	Free Hanging (In-Line)	Plug Female Sockets	630 V	12 AWG	26 AWG	300 V	12 A	Tin	2	2	Green	10 A		2.5 mm²	0.2 mm²	270 °	1	Push-In Spring Screwless - Leg Spring	2.5 mm˛	0.2 mm˛
Phoenix Contact 1910089	16.8 mm	0.661 "	10 mm	UL94 V-0	Polyamide (PA) Nylon	5 mm	0.197 in	Free Hanging (In-Line)	Plug Female Sockets	630 V	12 AWG	26 AWG	300 V	12 A	Tin	7		Green	10 A		2.5 mm²	0.2 mm²	270 °	1	Push-In Spring Screwless - Leg Spring	2.5 mm˛	0.2 mm˛	7
Phoenix Contact 1873825	16.8 mm	0.661 "	10 mm	UL94 V-0	Polyamide (PA) Nylon	5.08 mm	0.2 in	Free Hanging (In-Line)	Plug Female Sockets	630 V	12 AWG	26 AWG	300 V	12 A	Tin	4	4	Green	10 A	Mating Flange Retention Latches (Non-Wire Side)	2.5 mm²	0.2 mm²	270 °	1	Push-In Spring Screwless - Leg Spring	2.5 mm˛	0.2 mm˛

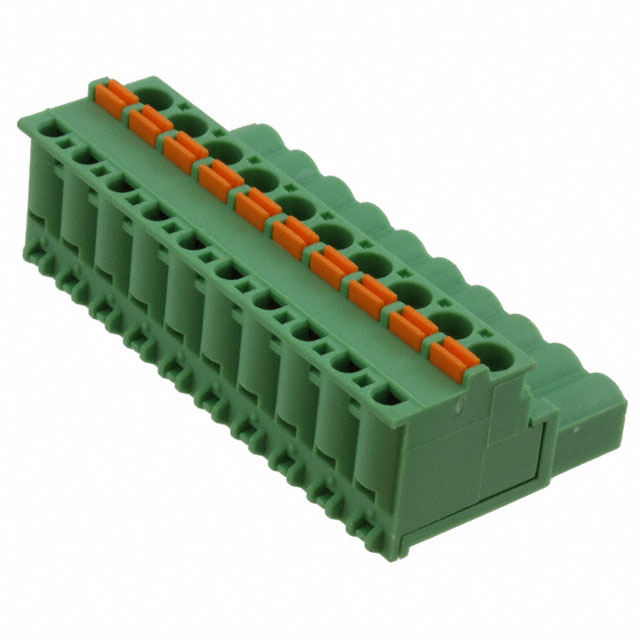

Phoenix Contact 1873731	16.8 mm	0.661 "	10 mm	UL94 V-0	Polyamide (PA) Nylon	5.08 mm	0.2 in	Free Hanging (In-Line)	Plug Female Sockets	630 V	12 AWG	26 AWG	300 V	12 A	Tin	10	10	Green	10 A		2.5 mm²	0.2 mm²	270 °	1	Push-In Spring Screwless - Leg Spring	2.5 mm˛	0.2 mm˛
Phoenix Contact 1873870	16.8 mm	0.661 "	10 mm	UL94 V-0	Polyamide (PA) Nylon	5.08 mm	0.2 in	Free Hanging (In-Line)	Plug Female Sockets	630 V	12 AWG	26 AWG	300 V	12 A	Tin	9	9	Green	10 A	Mating Flange Retention Latches (Non-Wire Side)	2.5 mm²	0.2 mm²	270 °	1	Push-In Spring Screwless - Leg Spring

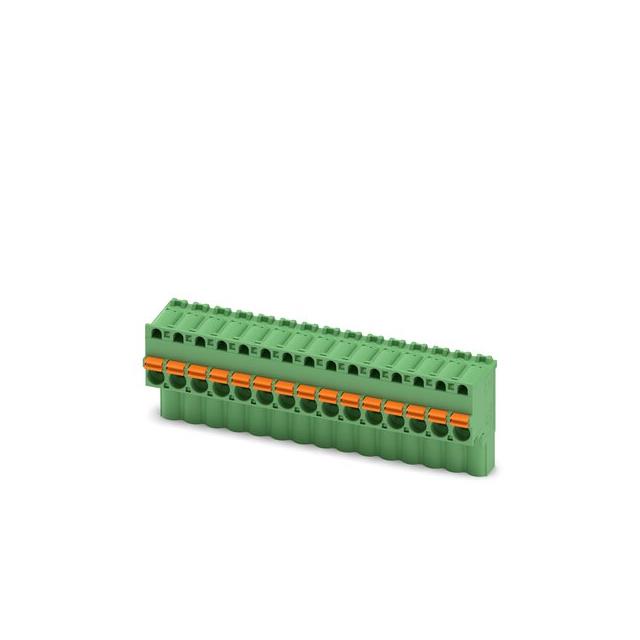

Phoenix Contact 1910160	16.8 mm	0.661 "	10 mm	UL94 V-0	Polyamide (PA) Nylon	5 mm	0.197 in	Free Hanging (In-Line)	Plug Female Sockets	630 V	12 AWG	26 AWG	300 V	12 A	Tin	15	15	Green	10 A		2.5 mm²	0.2 mm²	270 °	1	Push-In Spring Screwless - Leg Spring
