D4B-2 Series

Manufacturer: Omron Automation and Safety

Catalog

LIMIT SWITCHES SAFETY LMT SWITCH G1/2 2NC

Part	Mounting Type	Voltage Rating - AC	Operating Force	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Type	Ingress Protection	Voltage Rating - DC	Electrical Life	Pretravel	Switch Function	Operating Position	Current Rating (Amps)	Release Force	Circuit	Overtravel [custom]	Features	Operating Position	Overtravel	Overtravel	Pretravel

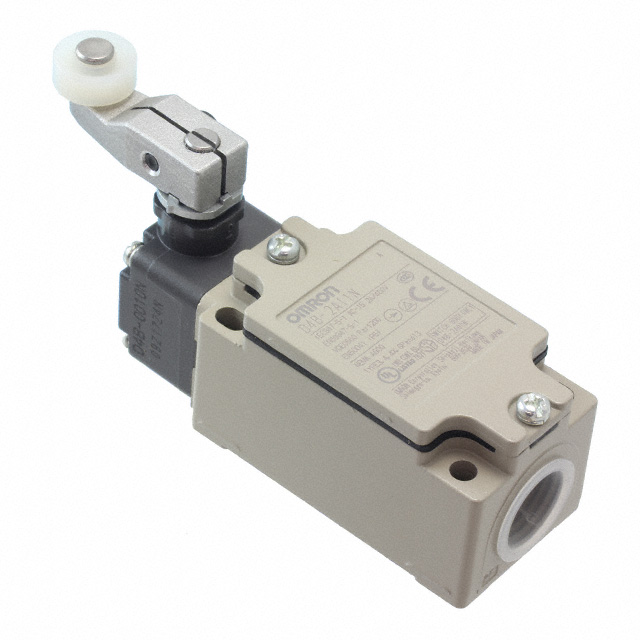

Omron Automation and Safety D4B-2A11N	Chassis Mount	120 V	960 gf	10000000 Cycles	80 °C	-40 C	Screw Terminal	Roller Side Rotary	IP67 - Dust Tight Waterproof	30 V	500000 Cycles	21 °	On-Mom	21 °	6 A 10 A	150 gf	DPST-NC	50 °
Omron Automation and Safety D4B-2A17N	Chassis Mount	120 V	216 gf	10000000 Cycles	80 °C	-40 C	Screw Terminal	Side Rotary Adjustable Rod	IP67 - Dust Tight Waterproof	30 V	500000 Cycles	21 °	On-Mom	21 °	6 A 10 A	30 gf	DPST-NC	50 °
Omron Automation and Safety D4B-2A16N	Chassis Mount	120 V	960 gf	10000000 Cycles	80 °C	-40 C	Screw Terminal	Side Rotary Adjustable Roller	IP67 - Dust Tight Waterproof	30 V	500000 Cycles	21 °	On-Mom	21 °	6 A 10 A	150 gf	DPST-NC	50 °

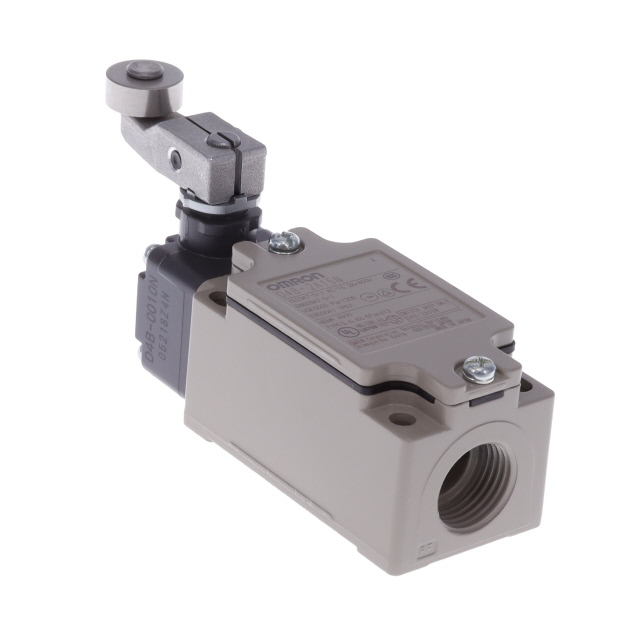

Omron Automation and Safety D4B-2A15N	Chassis Mount	120 V	960 gf	10000000 Cycles	80 °C	-40 C	Screw Terminal	Roller Side Rotary	IP67 - Dust Tight Waterproof	30 V	500000 Cycles	21 °	On-Mom	21 °	6 A 10 A	150 gf	DPST-NC	50 °	Stainless Steel Roller

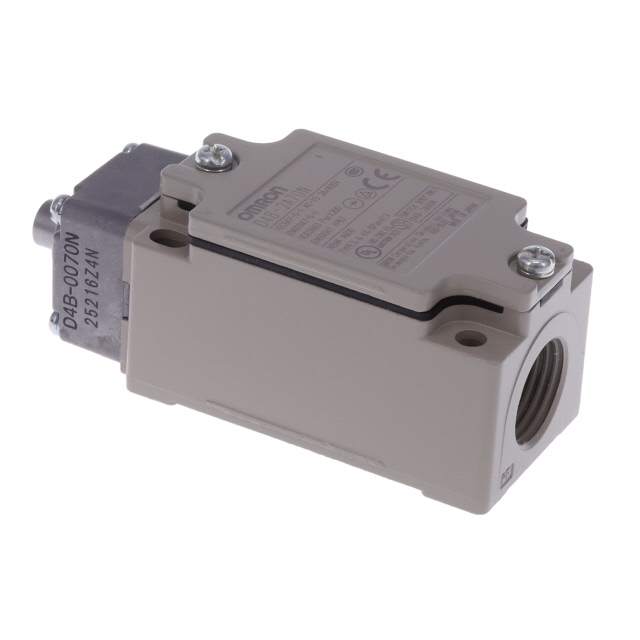

Omron Automation and Safety D4B-2A70N	Chassis Mount	120 V	1900 gf	10000000 Cycles	80 °C	-40 C	Screw Terminal	Round (Pin Plunger)	IP67 - Dust Tight Waterproof	30 V	500000 Cycles	0.08 in	On-Mom	1.38 in	6 A 10 A	200 gf	DPST-NC			35 mm	0.197 "	5 mm	2 mm
Omron Automation and Safety D4B-2A71N	Chassis Mount	120 V	1900 gf	10000000 Cycles	80 °C	-40 C	Screw Terminal	Roller Plunger	IP67 - Dust Tight Waterproof	30 V	500000 Cycles	0.08 in	On-Mom	1.89 in	6 A 10 A	200 gf	DPST-NC			48 mm	0.197 "	5 mm	2 mm
