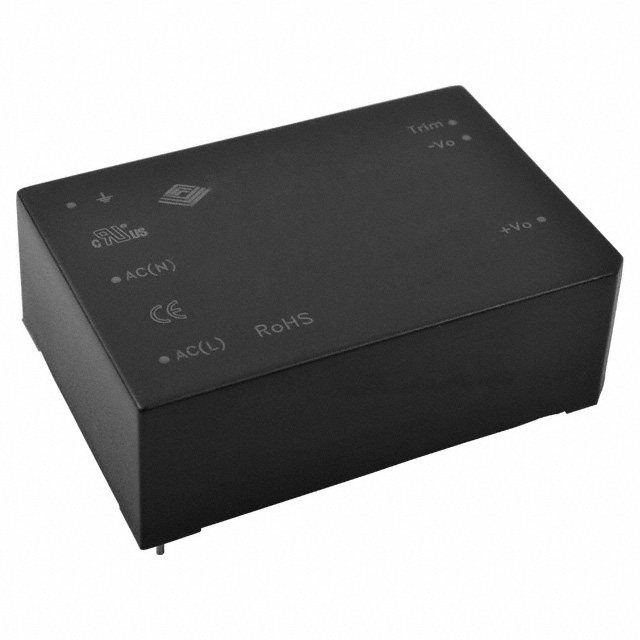

VSK-S20 Series

Manufacturer: CUI Inc.

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 5V 3.5A 17.5W 8-PIN

Part	Current - Output 1	Efficiency	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Type	Features	Mounting Type	Power (Watts)	Number of Outputs	Applications	Approval Agency	Load Regulation	Weight [custom]	Weight [custom]	Current - Output (Max) [Max]	Line Regulation	Standard Number	Package / Case

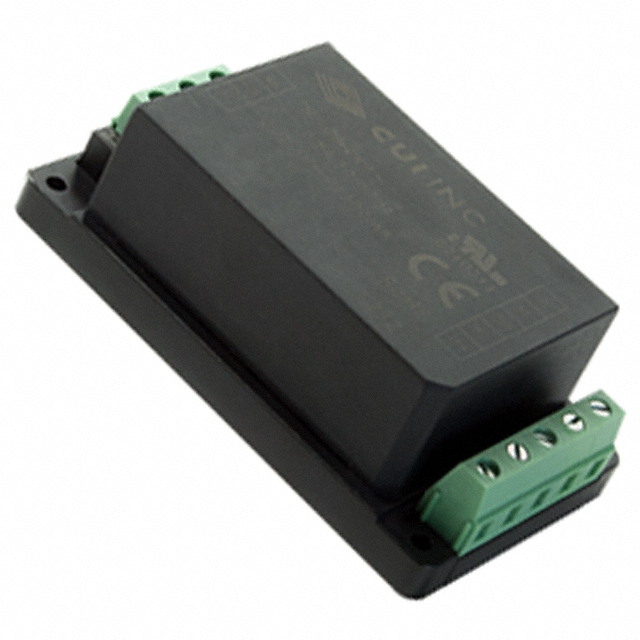

CUI Inc. VSK-S20-5U-T	3.5 A	75 %	3000 V	70 °C	-40 C	5 V	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	Enclosed	Universal Input	Chassis Mount	20 W	1	ITE (Commercial)	CE cURus
CUI Inc. VSK-S20-3R3U		73 %				3.3 V							Enclosed	Universal Input	Through Hole	20 W	1	ITE (Commercial)	CB Scheme EN IEC UL	±1%	0.265 lb	120.2 g	4.1 A	0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	6-DIP Module
CUI Inc. VSK-S20-12U		81 %				12 V							Enclosed	Universal Input	Through Hole	20 W	1	ITE (Commercial)	CB Scheme EN IEC UL	±1%	0.265 lb	120.2 g	1.6 A	0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	6-DIP Module

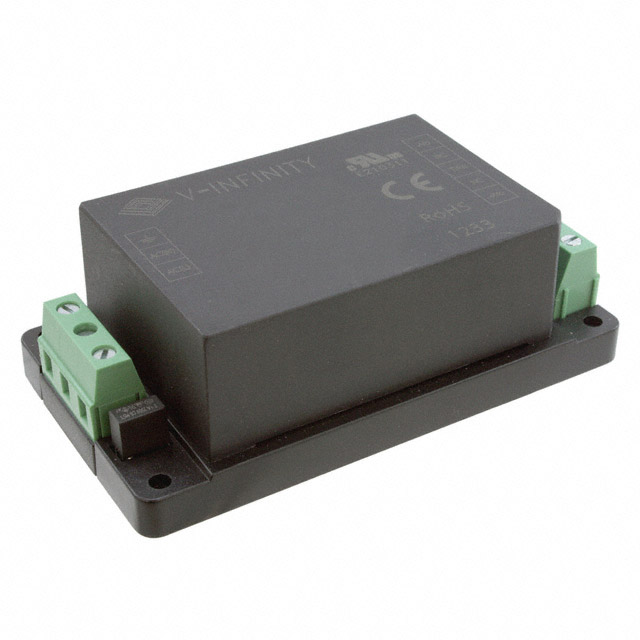

CUI Inc. VSK-S20-9U-T	2.1 A	77 %	3000 V	70 °C	-40 C	9 V	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	Enclosed	Universal Input	Chassis Mount	20 W	1	ITE (Commercial)	CE cURus
CUI Inc. VSK-S20-9U		77 %				9 V							Enclosed	Universal Input	Through Hole	20 W	1	ITE (Commercial)	CB Scheme EN IEC UL	±1%	0.265 lb	120.2 g	2.1 A	0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	6-DIP Module
CUI Inc. VSK-S20-24U		85 %				24 V							Enclosed	Universal Input	Through Hole	20 W	1	ITE (Commercial)	CB Scheme EN IEC UL	±1%	0.265 lb	120.2 g	850 mA	0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	6-DIP Module
CUI Inc. VSK-S20-24U-T	850 mA	85 %	3000 V	70 °C	-40 C	24 V	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	Enclosed	Universal Input	Chassis Mount	20 W	1	ITE (Commercial)	CE cURus
CUI Inc. VSK-S20-12U-T	1.6 A	81 %	3000 V	70 °C	-40 C	12 V	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	Enclosed	Universal Input	Chassis Mount	20 W	1	ITE (Commercial)	CE cURus
CUI Inc. VSK-S20-15U		83 %				15 V							Enclosed	Universal Input	Through Hole	20 W	1	ITE (Commercial)	CB Scheme EN IEC UL	±1%	0.265 lb	120.2 g	1.3 A	0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	6-DIP Module
