SG73P2B Series
Manufacturer: KOA Speer Electronics, Inc.
Beta
⌘K

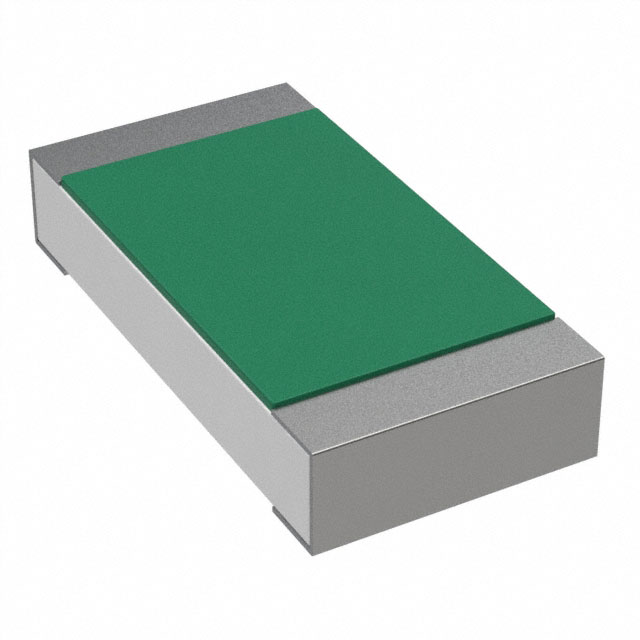

RES 86.6K OHM 1% 3/4W 1206
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Composition | Features | Resistance | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Supplier Device Package | Number of Terminations [custom] | Temperature Coefficient | Ratings | Package / Case | Power (Watts) | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KOA Speer Electronics, Inc. | 155 C | -55 C | Thick Film | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 86.6 kOhms | 1 % | 0.7 mm | 0.028 " | 1206 | 2 | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 3/4W | 0.75 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
 KOA Speer Electronics, Inc. | 155 C | -55 C | Thick Film | Automotive AEC-Q200 Pulse Withstanding | 1.54 kOhms | 0.5 % | 0.7 mm | 0.028 " | 1206 | 2 | 100 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 3/4W | 0.75 W 1 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
KOA Speer Electronics, Inc. | 155 C | -55 C | Thick Film | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 845 Ohms | 1 % | 0.7 mm | 0.028 " | 1206 | 2 | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 3/4W | 0.75 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
KOA Speer Electronics, Inc. | 155 C | -55 C | Thick Film | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 590 Ohms | 0.5 % | 0.7 mm | 0.028 " | 1206 | 2 | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 3/4W | 0.75 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
KOA Speer Electronics, Inc. | 155 C | -55 C | Thick Film | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 36.5 Ohms | 1 % | 0.7 mm | 0.028 " | 1206 | 2 | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 3/4W | 0.75 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
KOA Speer Electronics, Inc. | 155 C | -55 C | Thick Film | Automotive AEC-Q200 Pulse Withstanding | 102 kOhms | 1 % | 0.7 mm | 0.028 " | 1206 | 2 | 100 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 3/4W | 0.75 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
KOA Speer Electronics, Inc. | 155 C | -55 C | Thick Film | Automotive AEC-Q200 Pulse Withstanding | 158 Ohms | 0.5 % | 0.7 mm | 0.028 " | 1206 | 2 | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 3/4W | 0.75 W 1 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
KOA Speer Electronics, Inc. | 155 C | -55 C | Thick Film | Automotive AEC-Q200 Pulse Withstanding | 137 Ohms | 1 % | 0.7 mm | 0.028 " | 1206 | 2 | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 3/4W | 0.75 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
KOA Speer Electronics, Inc. | 155 C | -55 C | Thick Film | Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding | 68100 Ohms | 0.5 % | 0.7 mm | 0.028 " | 1206 | 2 | 200 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 3/4W | 0.75 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
KOA Speer Electronics, Inc. | 155 C | -55 C | Thick Film | Automotive AEC-Q200 Pulse Withstanding | 976 Ohms | 1 % | 0.7 mm | 0.028 " | 1206 | 2 | 100 ppm/°C | AEC-Q200 | 1206 (3216 Metric) | 3/4W | 0.75 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
