MMI-M1FG Series
Manufacturer: Adam Tech
Beta
⌘K

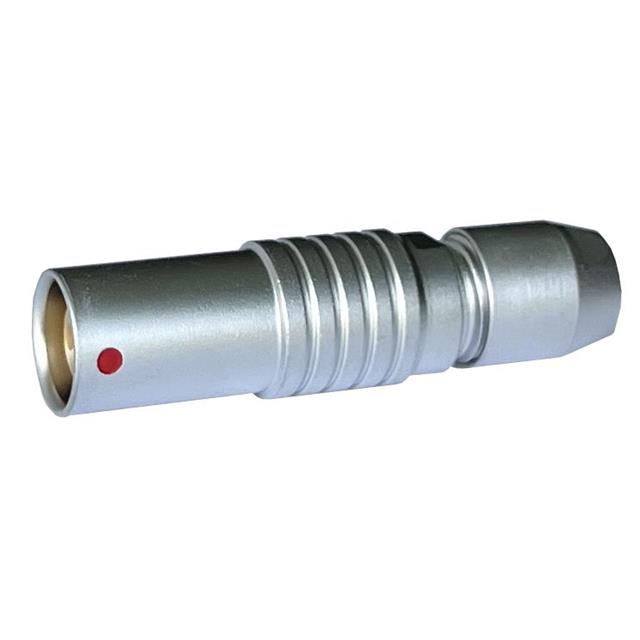

CONN PLUG FMALE 8P GOLD SLDR CUP
| Part | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Current Rating (Amps) | Color | Voltage Rating | Fastening Type | Ingress Protection | Cable Opening | Cable Opening | Contact Material | Number of Positions | Connector Type | Shell Material | Orientation [custom] | Mounting Type | Primary Material | Shielding | Contact Finish - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Polyetheretherketone (PEEK) | -55 C | 150 °C | Chrome | 5 A | Silver | 200 V | Push-Pull | IP50 - Dust Protected | 11.3 mm | 0.445 " | Brass | 8 | Plug Female Sockets | Brass | G | Free Hanging (In-Line) | Metal | Unshielded | Gold | |
Adam Tech | Polyetheretherketone (PEEK) | -55 C | 150 °C | Chrome | 2 A | Silver | 200 V | Push-Pull | IP50 - Dust Protected | 11.3 mm | 0.445 " | Brass | 10 | Plug Female Sockets | Brass | G | Free Hanging (In-Line) | Metal | Unshielded | Gold | |
Adam Tech | Polyetheretherketone (PEEK) | -55 C | 150 °C | Chrome | 7 A | Silver | 250 V | Push-Pull | IP50 - Dust Protected | 11.3 mm | 0.445 " | Brass | 5 | Plug Female Sockets | Brass | G | Free Hanging (In-Line) | Metal | Unshielded | Gold | |
Adam Tech | Polyetheretherketone (PEEK) | -55 C | 150 °C | Chrome | 8 A | Silver | 250 V | Push-Pull | IP50 - Dust Protected | 11.3 mm | 0.445 " | Brass | 4 | Plug Female Sockets | Brass | G | Free Hanging (In-Line) | Metal | Unshielded | Gold | |
 Adam Tech | Polyetheretherketone (PEEK) | -55 C | 150 °C | Chrome | 9 A | Silver | 300 VDC | Push-Pull | IP67 - Dust Tight Waterproof | Brass | 2 | Plug Female Sockets | Brass | G | Free Hanging (In-Line) | Metal | Unshielded | Gold | |||
Adam Tech | Polyetheretherketone (PEEK) | -55 C | 150 °C | Chrome | 9 A | Silver | 300 VDC | Push-Pull | IP50 - Dust Protected | 11.3 mm | 0.445 " | Brass | 2 | Plug Female Sockets | Brass | G | Free Hanging (In-Line) | Metal | Unshielded | Gold | |
 Adam Tech | Polyphenylene Sulfide (PPS) | -55 C | 150 °C | Chrome | 8 A | Silver | 250 V | Push-Pull | IP50 - Dust Protected | 11.3 mm | 0.445 " | Brass | 4 | Plug Female Sockets | Brass | G | Free Hanging (In-Line) | Metal | Unshielded | Gold | Backshell |
 Adam Tech | Polyphenylene Sulfide (PPS) | -55 C | 150 °C | Chrome | 7 A | Silver | 250 V | Push-Pull | IP67 - Dust Tight Waterproof | Brass | 5 | Plug Female Sockets | Brass | G | Free Hanging (In-Line) | Metal | Unshielded | Gold | Backshell Strain Relief | ||
Adam Tech | Polyetheretherketone (PEEK) | -55 C | 150 °C | Chrome | 5 A | Silver | 200 V | Push-Pull | IP50 - Dust Protected | 11.3 mm | 0.445 " | Brass | 6 | Plug Female Sockets | Brass | G | Free Hanging (In-Line) | Metal | Unshielded | Gold | |
Adam Tech | Polyphenylene Sulfide (PPS) | -55 C | 150 °C | Chrome | 9 A | Silver | 300 VDC | Push-Pull | IP50 - Dust Protected | 11.3 mm | 0.445 " | Brass | 2 | Plug Female Sockets | Brass | G | Free Hanging (In-Line) | Metal | Unshielded | Gold | Backshell |
