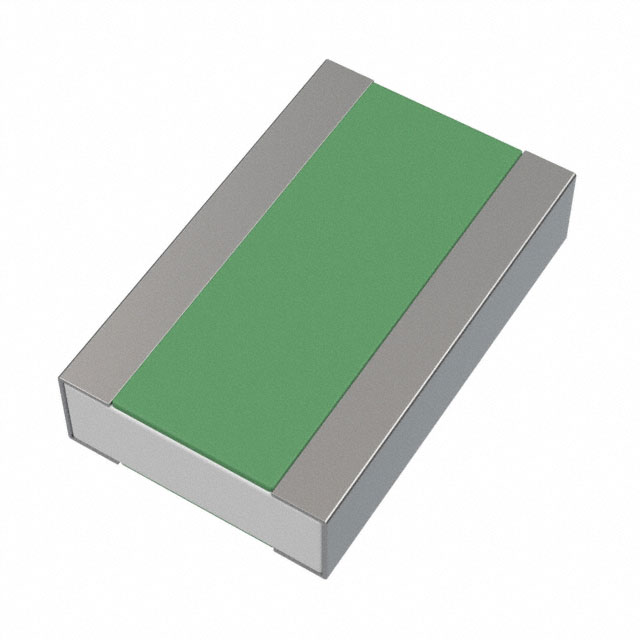

RLW-2012 Series

Catalog

RES 0.01 OHM 1% 1/3W 0805

Part	Composition	Supplier Device Package	Temperature Coefficient [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Number of Terminations [custom]	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Power (Watts)	Power (Watts)
Delta Electronics/Cyntec RLW-2012-F-R010-FNH	Metal Film	0508	200 ppm/°C	Current Sense	-55 C	125 °C	1.3 mm	0.051 "	2 mm	0.079 in	0508 Wide 0805 (2012 Metric)	2	10 mOhms	0.7 mm	0.028 "	1 %	0.3333333333333333 W	0.333 W
Delta Electronics/Cyntec RLW-2012-4-R020-FNH	Metal Film	0508	200 ppm/°C	Current Sense	-55 C	125 °C	1.3 mm	0.051 "	2 mm	0.079 in	0508 Wide 0805 (2012 Metric)	2	0.02 Ohms	0.7 mm	0.028 "	1 %	0.5 W	0.5 W
Delta Electronics/Cyntec RLW-2012-4-R010-FNH	Metal Film	0508	200 ppm/°C	Current Sense	-55 C	125 °C	1.3 mm	0.051 "	2 mm	0.079 in	0508 Wide 0805 (2012 Metric)	2	10 mOhms	0.7 mm	0.028 "	1 %	0.5 W	0.5 W
Delta Electronics/Cyntec RLW-2012-6-R020-FNH	Metal Film	0508	200 ppm/°C	Current Sense	-55 C	125 °C	1.3 mm	0.051 "	2 mm	0.079 in	0508 Wide 0805 (2012 Metric)	2	0.02 Ohms	0.7 mm	0.028 "	1 %		1 W
Delta Electronics/Cyntec RLW-2012-4-R005-FNH	Metal Film	0508	200 ppm/°C	Current Sense	-55 C	125 °C	1.3 mm	0.051 "	2 mm	0.079 in	0508 Wide 0805 (2012 Metric)	2	5 mOhms	0.7 mm	0.028 "	1 %	0.5 W	0.5 W
Delta Electronics/Cyntec RLW-2012-F-R005-FNH	Metal Film	0508	200 ppm/°C	Current Sense	-55 C	125 °C	1.3 mm	0.051 "	2 mm	0.079 in	0508 Wide 0805 (2012 Metric)	2	5 mOhms	0.7 mm	0.028 "	1 %	0.3333333333333333 W	0.333 W
Delta Electronics/Cyntec RLW-2012-4-R017-FNH	Metal Film	0508	200 ppm/°C	Current Sense	-55 C	125 °C	1.3 mm	0.051 "	2 mm	0.079 in	0508 Wide 0805 (2012 Metric)	2	17 mOhms	0.7 mm	0.028 "	1 %	0.5 W	0.5 W
Delta Electronics/Cyntec RLW-2012-6-R005-FNH	Metal Film	0508	200 ppm/°C	Current Sense	-55 C	125 °C	1.3 mm	0.051 "	2 mm	0.079 in	0508 Wide 0805 (2012 Metric)	2	5 mOhms	0.7 mm	0.028 "	1 %		1 W
Delta Electronics/Cyntec RLW-2012-F-R017-FNH	Metal Film	0508	200 ppm/°C	Current Sense	-55 C	125 °C	1.3 mm	0.051 "	2 mm	0.079 in	0508 Wide 0805 (2012 Metric)	2	17 mOhms	0.7 mm	0.028 "	1 %	0.3333333333333333 W	0.333 W
Delta Electronics/Cyntec RLW-2012-F-R020-FNH	Metal Film	0508	200 ppm/°C	Current Sense	-55 C	125 °C	1.3 mm	0.051 "	2 mm	0.079 in	0508 Wide 0805 (2012 Metric)	2	0.02 Ohms	0.7 mm	0.028 "	1 %	0.3333333333333333 W	0.333 W
