622-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

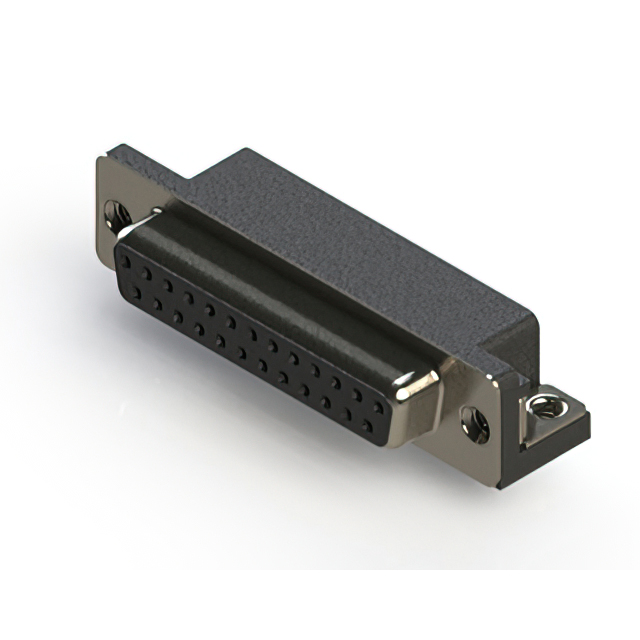

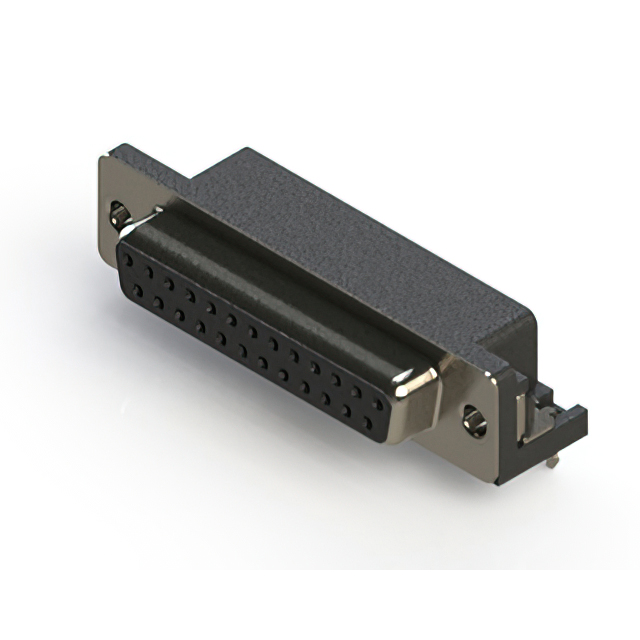

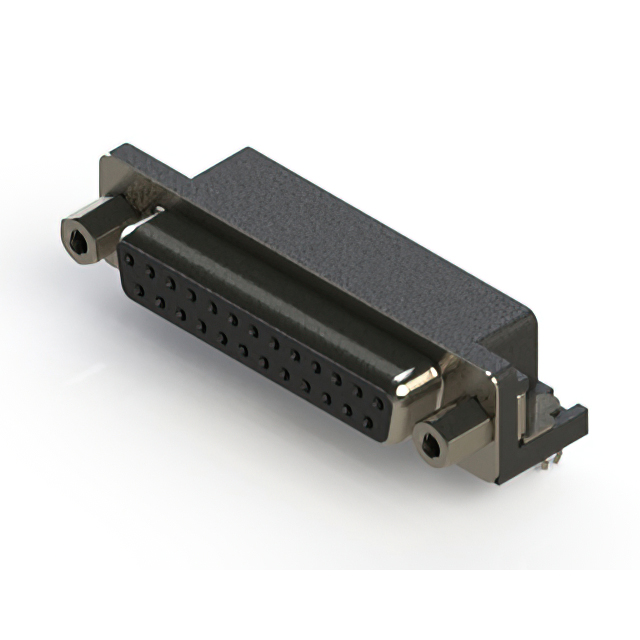

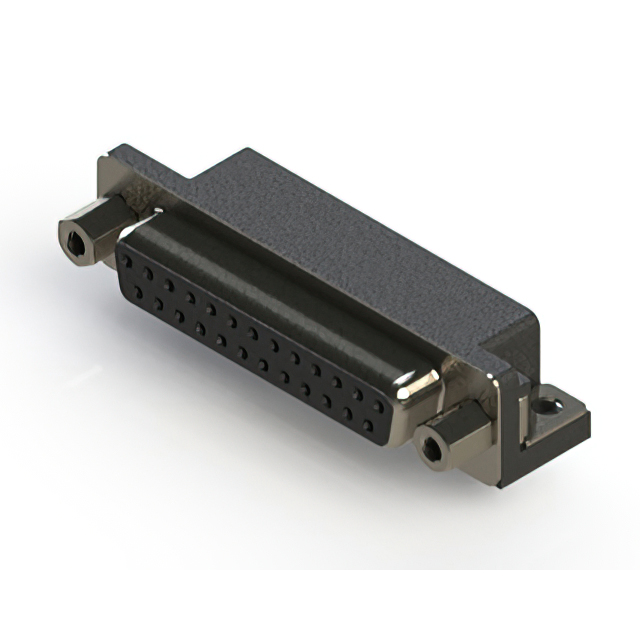

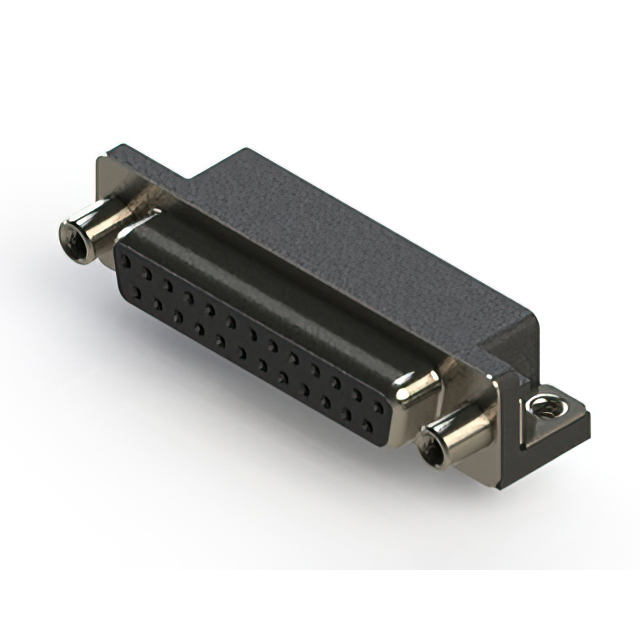

EDAC STANDARD RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions | Number of Rows [custom] | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Backset Spacing | Backset Spacing | Contact Finish | Termination | Connector Style | Connector Type | Current Rating (Amps) | Shell Material, Finish | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Type | Features | Material Flammability Rating | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 25 | 2 | Housing/Shell | 4-40 | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | Gold | Solder | D-Sub | Receptacle Female Sockets | 3 A | Nickel Plated Steel | B DB | 3 | Signal | Mounting Brackets Shielded | UL94 V-0 | |
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 25 | 2 | Housing/Shell (Unthreaded) | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | Gold | Solder | D-Sub | Receptacle Female Sockets | 3 A | Nickel Plated Steel | B DB | 3 | Signal | Mounting Brackets Shielded | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 25 | 2 | Housing/Shell (M3) | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | Gold | Solder | D-Sub | Receptacle Female Sockets | 3 A | Nickel Plated Steel | B DB | 3 | Signal | Filter Mounting Brackets Shielded | UL94 V-0 | Flash | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 25 | 2 | 4-40 Mating Side Female Screwlock | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | Gold | Solder | D-Sub | Receptacle Female Sockets | 3 A | Nickel Plated Steel | B DB | 3 | Signal | Filter Mounting Brackets Shielded | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 25 | 2 | Housing/Shell (M3) | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | Gold | Solder | D-Sub | Receptacle Female Sockets | 3 A | Nickel Plated Steel | B DB | 3 | Signal | Board Lock Mounting Brackets Shielded | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 25 | 2 | Mating Side Female Screwlock (M3) | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | Gold | Solder | D-Sub | Receptacle Female Sockets | 3 A | Nickel Plated Steel | B DB | 3 | Signal | Mounting Brackets Shielded | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 25 | 2 | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | Gold | Solder | D-Sub | Receptacle Female Sockets | 3 A | Nickel Plated Steel | B DB | 3 | Signal | Filter Mounting Brackets Shielded | UL94 V-0 | Flash | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 25 | 2 | Mating Side Female Screwlock (M3) | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | Gold | Solder | D-Sub | Receptacle Female Sockets | 3 A | Nickel Plated Steel | B DB | 3 | Signal | Board Lock Mounting Brackets Shielded | UL94 V-0 | Flash | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 25 | 2 | Housing/Shell (Unthreaded) | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | Gold | Solder | D-Sub | Receptacle Female Sockets | 3 A | Nickel Plated Steel | B DB | 3 | Signal | Board Lock Mounting Brackets Shielded | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 25 | 2 | Mating Side Female Screwlock (M3) | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | 8.08 mm | 0.318 " | Gold | Solder | D-Sub | Receptacle Female Sockets | 3 A | Nickel Plated Steel | B DB | 3 | Signal | Filter Mounting Brackets Shielded | UL94 V-0 |
