EL1116 Series

Catalog

OPTOISO 5KV TRANS W/BASE 5SOP

Part	Voltage - Forward (Vf) (Typ)	Mounting Type	Current Transfer Ratio (Max) [Max]	Rise / Fall Time (Typ)	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min) [Min]	Output Type	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Number of Channels [custom]	Vce Saturation (Max) [Max]	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Package / Case [y]	Package / Case	Package / Case [y]	Current - Output / Channel [custom]
Everlight Electronics Co Ltd EL1116(TA)-G	1.5 V	Surface Mount	300 %	2 µs 3 µs	60 mA	100 %	Transistor with Base	DC	-55 C	110 °C	5-SOP	1	400 mV	4 µs	3 µs	7.5 mm	5 Leads 6-SOIC	0.295 in	50 mA

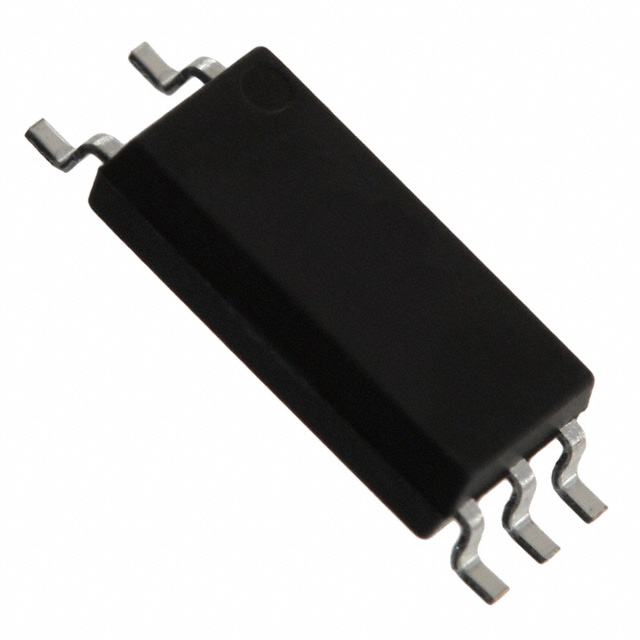

Everlight Electronics Co Ltd EL1116(TA)-VG	1.5 V	Surface Mount	300 %	2 µs 3 µs	60 mA	100 %	Transistor with Base	DC	-55 C	110 °C	5-SOP	1	400 mV	4 µs	3 µs	7.5 mm	5 Leads 6-SOIC	0.295 in	50 mA
Everlight Electronics Co Ltd EL1116-G	1.5 V	Surface Mount	300 %	2 µs 3 µs	60 mA	100 %	Transistor with Base	DC	-55 C	110 °C	5-SOP	1	400 mV	4 µs	3 µs	7.5 mm	5 Leads 6-SOIC	0.295 in	50 mA
