BNT11 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TOGGLE SPDT 3A 120V
| Part | Electrical Life | Actuator Material | Panel Cutout Dimensions [diameter] | Mounting Type | Illumination | Bushing Thread | Voltage Rating - DC | Current Rating (Amps) | Switch Function | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Termination Style | Actuator Length [x] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

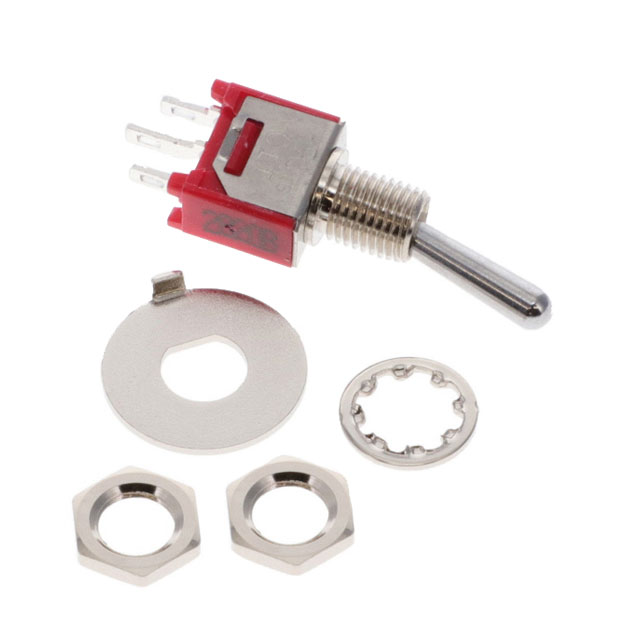

 CIT Relay and Switch | 30000 Cycles | Brass Chrome Plated | 4.95 mm | Panel Mount | Non-Illuminated | 10-48 | 28 V | 3 A | On-On | 120 V | 85 °C | -40 C | SPDT | Solder Lug | 9.4 mm | Standard Round |

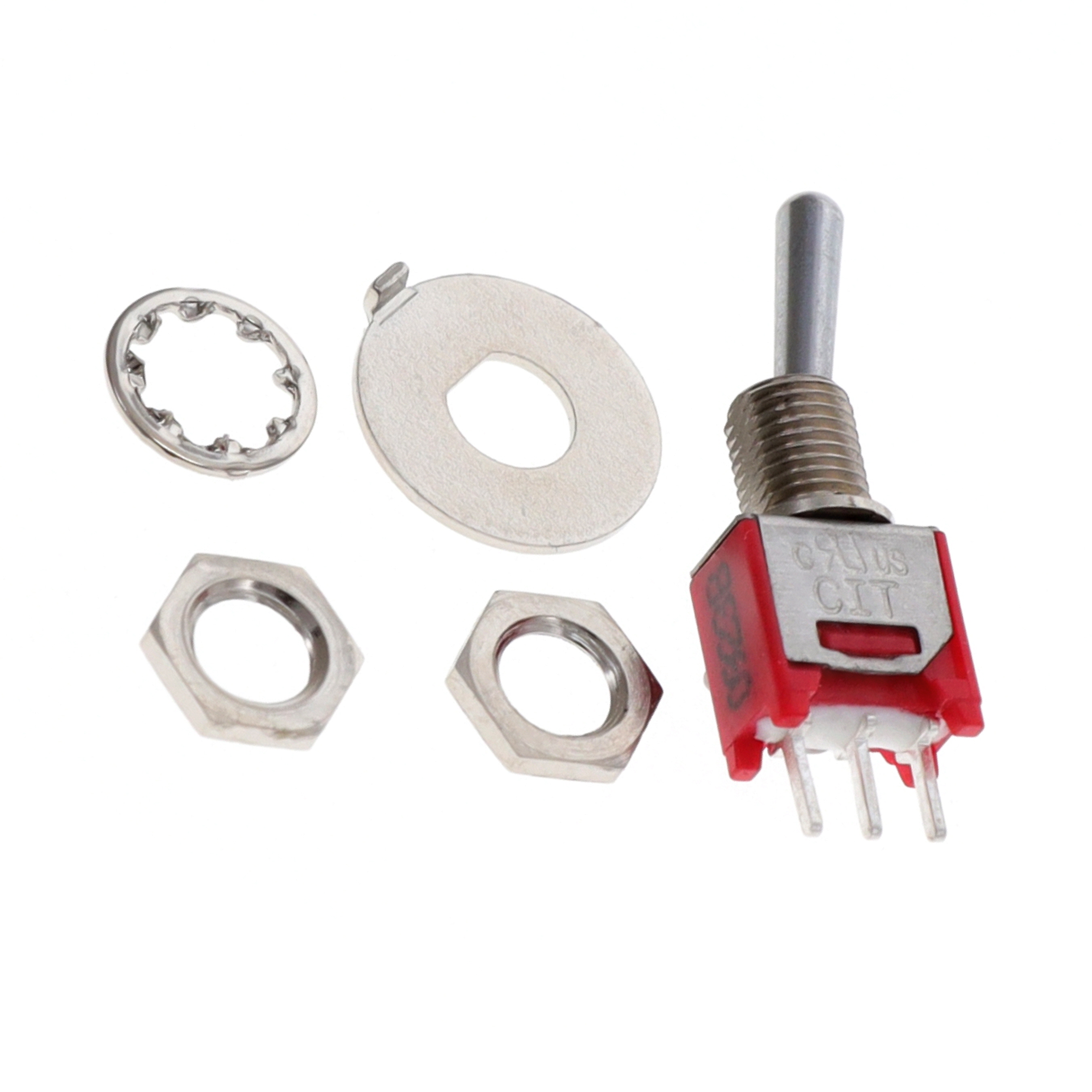

 CIT Relay and Switch | 30000 Cycles | Brass Chrome Plated | 4.95 mm | Through Hole | Non-Illuminated | 10-48 | 28 V | 3 A | On-On | 120 V | 85 °C | -40 C | SPDT | PC Pin | 9.4 mm | Standard Round |
