T530Y Series
Manufacturer: KEMET
Catalog

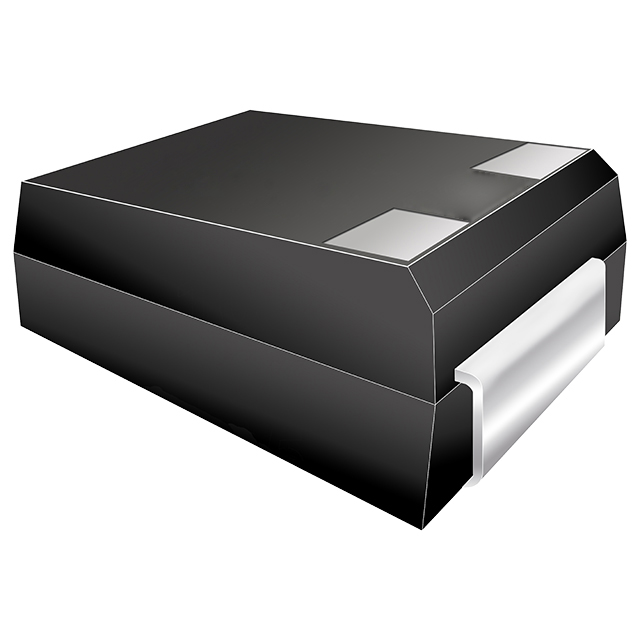

CAP, 470UF, 6.3V, TANT, POLYMER, Y ROHS COMPLIANT: YES
| Part | Manufacturer Size Code | Features | Height - Seated (Max) | Height - Seated (Max) [Max] | Mounting Type | ESR (Equivalent Series Resistance) | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Capacitance | Type | Lifetime @ Temp. | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Y | General Purpose | 4 mm | 0.157 in | Surface Mount | 5 mOhm | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 470 µF | Molded | 2000 Hrs | 20 % | -55 C | 125 °C | 6.3 VDC |
KEMET | Y | General Purpose | 4 mm | 0.157 in | Surface Mount | 6 mOhm | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 1000 µF | Molded | 2000 Hrs | 20 % | -55 C | 125 °C | 2.5 V |
KEMET | Y | General Purpose | 4 mm | 0.157 in | Surface Mount | 5 mOhm | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 1000 µF | Molded | 2000 Hrs | 20 % | -55 C | 125 °C | 2.5 V |
KEMET | Y | General Purpose | 4 mm | 0.157 in | Surface Mount | 5 mOhm | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 680 µF | Molded | 2000 Hrs | 20 % | -55 C | 125 °C | 4 V |
 KEMET | Y | General Purpose | 4 mm | 0.157 in | Surface Mount | 5 mOhm | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 680 µF | Molded | 2000 Hrs | 20 % | -55 C | 125 °C | 2.5 V |
