XZVG55 Series

Manufacturer: SunLED

Catalog

LED GREEN CLEAR 2SMD BOTTOM ENT

Part	Lens Style	Voltage - Forward (Vf) (Typ)	Current - Test	Height (Max) [z]	Mounting Type	Supplier Device Package	Lens Color	Viewing Angle	Millicandela Rating	Color	Lens Size [x]	Lens Size [y]	Package / Case	Wavelength - Dominant	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Configuration	Height (Max) [Max] [z]	Lens Size [diameter]

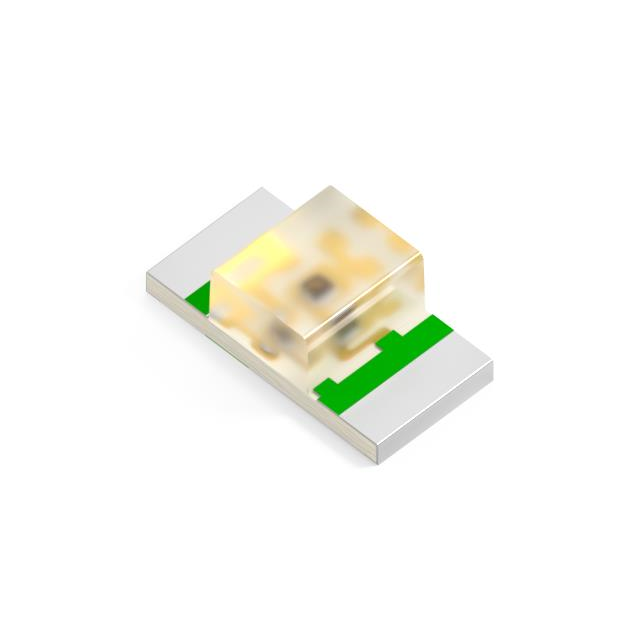

SunLED XZVG55W-2	Rectangle with Flat Top	2.1 V	20 mA	1.05 mm	Surface Mount Bottom Entry	2-SMD	Colorless	120 °	49 mcd	Green	1.4 mm	1.6 mm	1206 (3216 Metric)	570 nm	Clear	1.6 mm	3.2 mm	Standard
SunLED XZVG55W-3	Round with Domed Top	2.1 V	20 mA		Surface Mount	Chip LED	Colorless	35 °		Green			1206 (3216 Metric)	570 nm	Clear	1.6 mm	3.2 mm	Standard	1.8 mm	1.6 mm

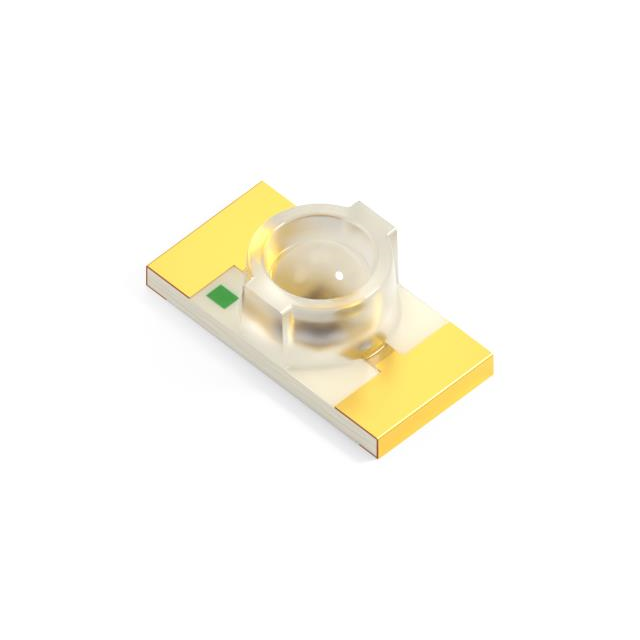

SunLED XZVG55W-A2RT	Round with Flat Top	2.1 V	20 mA		Surface Mount Bottom Entry	2-SMD	Colorless	70 °	98 mcd	Green			1206 (3216 Metric)	570 nm	Clear	1.6 mm	3.2 mm	Standard	1.2 mm	1.1 mm
