725-048 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 48POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Number of Positions	Gender	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Material	Contact Type	Termination	Number of Rows [custom]	Card Type	Color	Termination Rows	Number of Rows

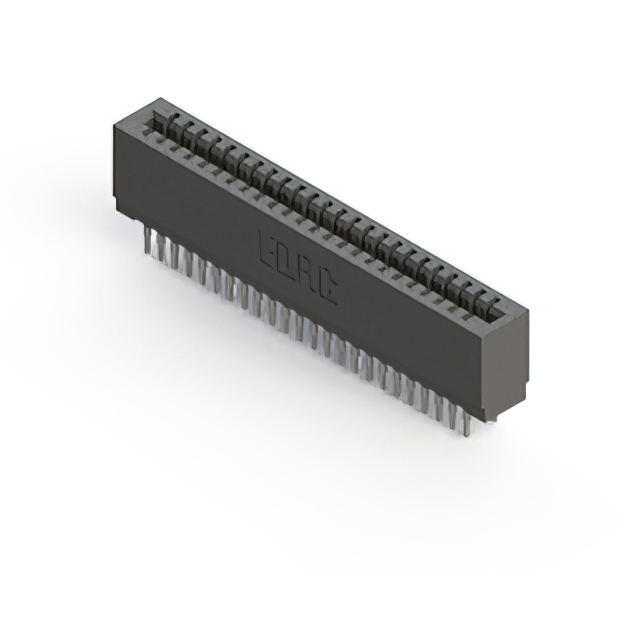

EDAC Inc. 725-048-541-201	2	Polyester Thermoplastic	0.1 "	2.54 mm	48	Female	24	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Copper Alloy	Cantilever	Press-Fit Wire Wrap	2	Non Specified - Dual Edge	Black

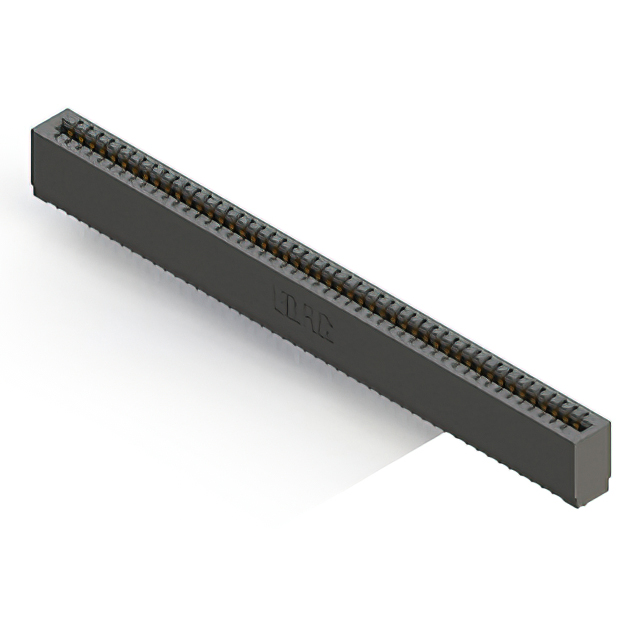

EDAC Inc. 725-048-525-101		Polyester Thermoplastic	0.1 "	2.54 mm	48	Female	48	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	Single	Copper Alloy	Cantilever	Press-Fit		Non Specified - Single Edge	Black	1	1

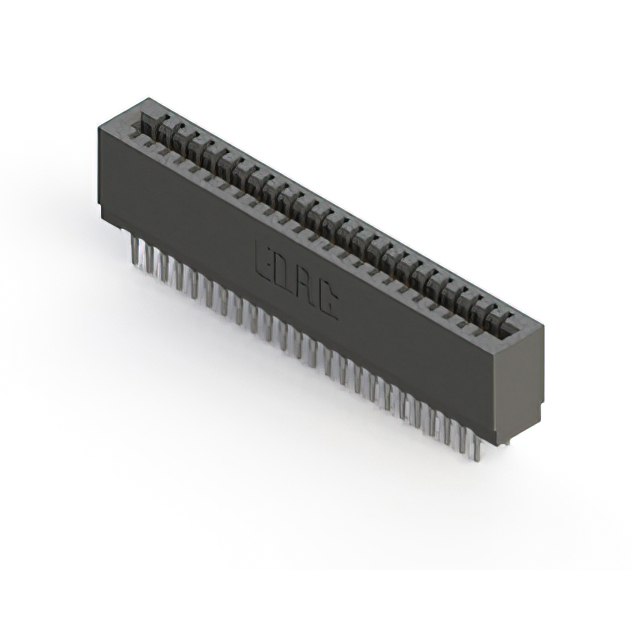

EDAC Inc. 725-048-540-201	2	Polyester Thermoplastic	0.1 "	2.54 mm	48	Female	24	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Copper Alloy	Cantilever	Press-Fit Wire Wrap	2	Non Specified - Dual Edge	Black
EDAC Inc. 725-048-520-101		Polyester Thermoplastic	0.1 "	2.54 mm	48	Female	48	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	Single	Copper Alloy	Cantilever	Press-Fit		Non Specified - Single Edge	Black	1	1
EDAC Inc. 725-048-545-201	2	Polyester Thermoplastic	0.1 "	2.54 mm	48	Female	24	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Copper Alloy	Cantilever	Press-Fit Wire Wrap	2	Non Specified - Dual Edge	Black
EDAC Inc. 725-048-541-101		Polyester Thermoplastic	0.1 "	2.54 mm	48	Female	48	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	Single	Copper Alloy	Cantilever	Press-Fit Wire Wrap		Non Specified - Single Edge	Black	1	1

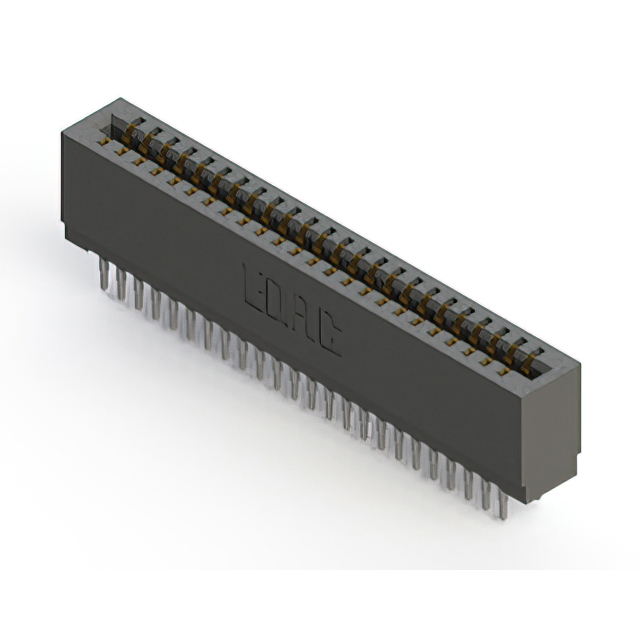

EDAC Inc. 725-048-560-201	2	Polyester Thermoplastic	0.1 "	2.54 mm	48	Female	24	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	Dual	Copper Alloy	Cantilever Make Before Break	Press-Fit	2	Non Specified - Dual Edge	Black
EDAC Inc. 725-048-540-101		Polyester Thermoplastic	0.1 "	2.54 mm	48	Female	48	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	Single	Copper Alloy	Cantilever	Press-Fit Wire Wrap		Non Specified - Single Edge	Black	1	1

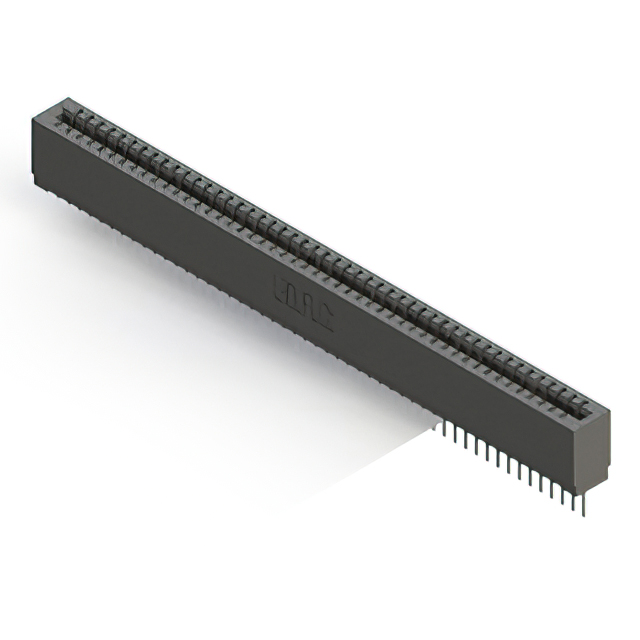

EDAC Inc. 725-048-522-101		Polyester Thermoplastic	0.1 "	2.54 mm	48	Female	48	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	Single	Copper Alloy	Cantilever	Press-Fit		Non Specified - Single Edge	Black	1	1
EDAC Inc. 725-048-545-101		Polyester Thermoplastic	0.1 "	2.54 mm	48	Female	48	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	Single	Copper Alloy	Cantilever	Press-Fit Wire Wrap		Non Specified - Single Edge	Black	1	1
