1586495 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HEADER VERT 18POS 4.2MM
| Part | Style | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Number of Positions | Mounting Type | Contact Finish - Post | Insulation Material | Number of Positions Loaded | Contact Shape | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post | Contact Type | Fastening Type | Insulation Color | Connector Type | Pitch - Mating | Pitch - Mating | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows [custom] | Termination | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

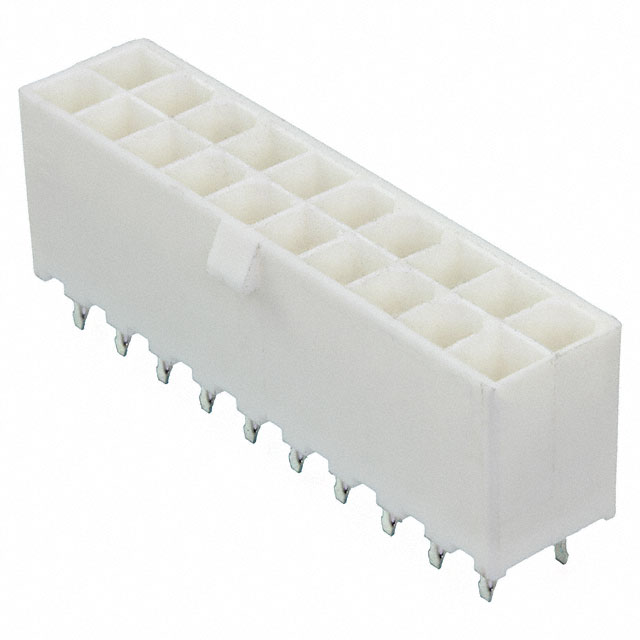

 TE Connectivity AMP Connectors | Board to Board Cable | -55 C | 105 ░C | UL94 V-0 | 12.8 mm | 0.504 " | 18 | Through Hole | Tin | Nylon Polyamide (PA) | All | Square | 600 VAC | 0.165 in | 4.2 mm | 0.138 in | 3.5 mm | Male Pin | Locking Ramp | White | Header | 0.165 in | 4.2 mm | Shrouded - 4 Wall | 118.1 µin | 3 µm | 2 | Solder | Copper Alloy |

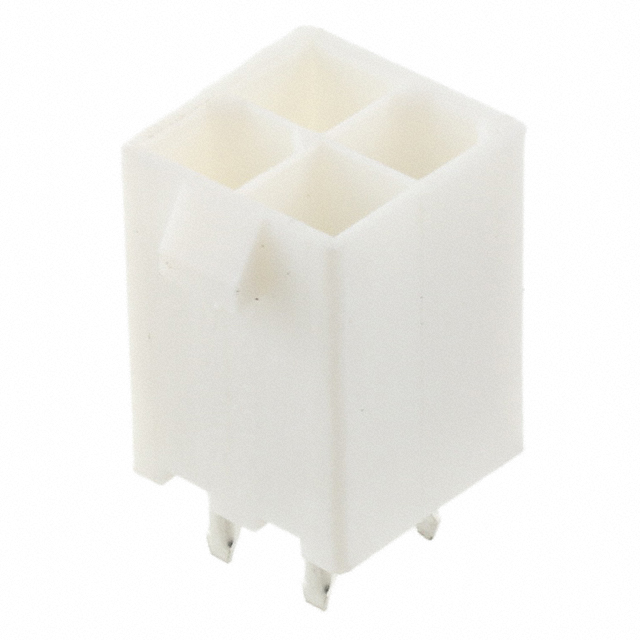

 TE Connectivity AMP Connectors | Board to Board Cable | -55 C | 105 ░C | UL94 V-0 | 12.8 mm | 0.504 " | 4 | Through Hole | Tin | Nylon Polyamide (PA) | All | Square | 600 VAC | 0.165 in | 4.2 mm | 0.138 in | 3.5 mm | Male Pin | Locking Ramp | White | Header | 0.165 in | 4.2 mm | Shrouded - 4 Wall | 118.1 µin | 3 µm | 2 | Solder | Copper Alloy |
 TE Connectivity AMP Connectors | Board to Board Cable | -55 C | 105 ░C | UL94 V-0 | 12.8 mm | 0.504 " | 16 | Through Hole | Tin | Nylon Polyamide (PA) | All | Square | 600 VAC | 0.165 in | 4.2 mm | 0.138 in | 3.5 mm | Male Pin | Locking Ramp | White | Header | 0.165 in | 4.2 mm | Shrouded - 4 Wall | 118.1 µin | 3 µm | 2 | Solder | Copper Alloy |

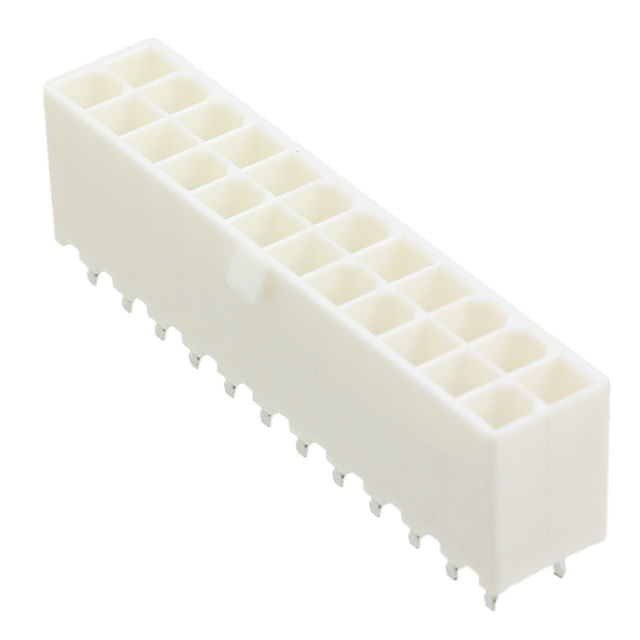

 TE Connectivity AMP Connectors | Board to Board Cable | -55 C | 105 ░C | UL94 V-0 | 12.8 mm | 0.504 " | 24 | Through Hole | Tin | Nylon Polyamide (PA) | All | Square | 600 VAC | 0.165 in | 4.2 mm | 0.138 in | 3.5 mm | Male Pin | Locking Ramp | White | Header | 0.165 in | 4.2 mm | Shrouded - 4 Wall | 118.1 µin | 3 µm | 2 | Solder | Copper Alloy |

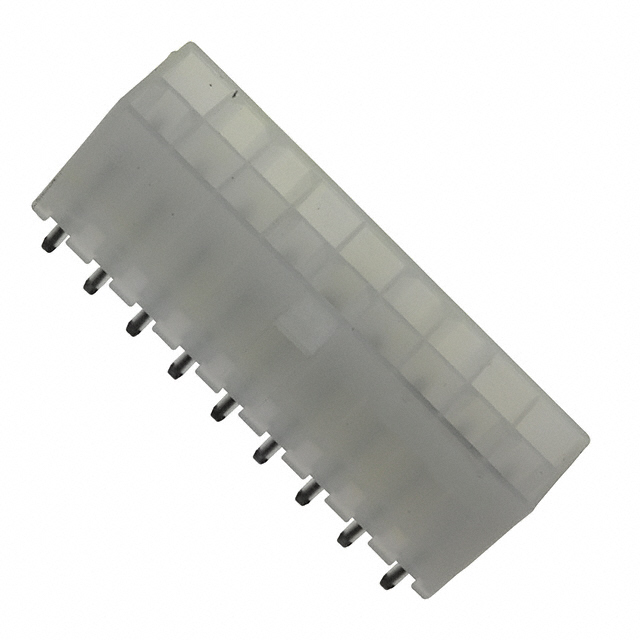

 TE Connectivity AMP Connectors | Board to Board Cable | -55 C | 105 ░C | UL94 V-0 | 12.8 mm | 0.504 " | 20 | Through Hole | Tin | Nylon Polyamide (PA) | All | Square | 600 VAC | 0.165 in | 4.2 mm | 0.138 in | 3.5 mm | Male Pin | Locking Ramp | White | Header | 0.165 in | 4.2 mm | Shrouded - 4 Wall | 118.1 µin | 3 µm | 2 | Solder | Copper Alloy |

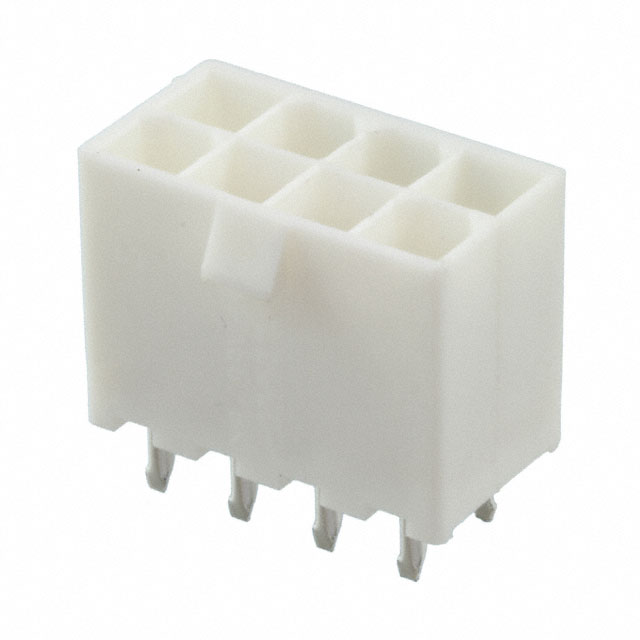

 TE Connectivity AMP Connectors | Board to Board Cable | -55 C | 105 ░C | UL94 V-0 | 12.8 mm | 0.504 " | 8 | Through Hole | Tin | Nylon Polyamide (PA) | All | Square | 600 VAC | 0.165 in | 4.2 mm | 0.138 in | 3.5 mm | Male Pin | Locking Ramp | White | Header | 0.165 in | 4.2 mm | Shrouded - 4 Wall | 118.1 µin | 3 µm | 2 | Solder | Copper Alloy |
