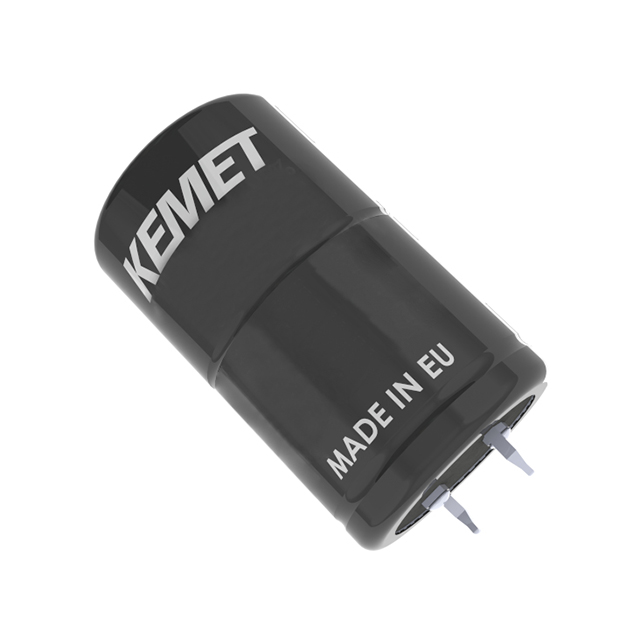

ALA8DD Series

Manufacturer: KEMET

Catalog

CAP ALUM 240UF 20% 450V SNAP TH

Part	Tolerance	Package / Case	ESR (Equivalent Series Resistance)	Size / Dimension	Size / Dimension [diameter]	Impedance	Lifetime @ Temp.	Capacitance	Mounting Type	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Voltage - Rated	Applications	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Polarization	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]
KEMET ALA8DD241CC450	20 %	Radial Can - Snap-In	566.4 mOhm	30 mm	1.181 "	193.6 mOhms	8000 Hrs	240 µF	Through Hole	6.12 A	-40 C	105 ░C	AEC-Q200	450 V	Automotive	37 mm	1.457 in	Polar	2.48 A
KEMET ALA8DD271CE500	20 %	Radial Can - Snap-In	763.6 mOhm	30 mm	1.181 "	190.8 mOhms	8000 Hrs	270 µF	Through Hole	5.91 A	-40 C	105 ░C	AEC-Q200	500 V	Automotive			Polar	2.37 A	1.85 in	47 mm
KEMET ALA8DD361DC450	20 %	Radial Can - Snap-In	386 mOhm		1.378 "	357.6 mOhms	8000 Hrs	360 µF	Through Hole	6.06 A	-40 C	105 ░C	AEC-Q200	450 V	Automotive	37 mm	1.457 in	Polar	2.68 A			35 mm
KEMET ALA8DD431DF500	20 %	Radial Can - Snap-In	484 mOhm		1.378 "	193.6 mOhms	8000 Hrs	430 µF	Through Hole	5.24 A	-40 C	105 ░C	AEC-Q200	500 V	Automotive			Polar	2.4 A	2.047 in	52 mm	35 mm
KEMET ALA8DD271CC400	20 %	Radial Can - Snap-In	558.2 mOhm	30 mm	1.181 "	228 mOhms	8000 Hrs	270 µF	Through Hole	5.43 A	-40 C	105 ░C	AEC-Q200	400 V	Automotive	37 mm	1.457 in	Polar	2.18 A
KEMET ALA8DD361DE500	20 %	Radial Can - Snap-In	577 mOhm		1.378 "	234.6 mOhms	8000 Hrs	360 µF	Through Hole	4.59 A	-40 C	105 ░C	AEC-Q200	500 V	Automotive			Polar	2.21 A	1.85 in	47 mm	35 mm
KEMET ALA8DD201CC500	20 %	Radial Can - Snap-In	1.0308 Ohm	30 mm	1.181 "	233.4 mOhms	8000 Hrs		Through Hole	5.4 A	-40 C	105 ░C	AEC-Q200	500 V	Automotive	37 mm	1.457 in	Polar	2.18 A
KEMET ALA8DD621DF400	20 %	Radial Can - Snap-In	248.2 mOhm		1.378 "	371.2 mOhms	8000 Hrs	620 µF	Through Hole	4.81 A	-40 C	105 ░C	AEC-Q200	400 V	Automotive			Polar	2.55 A	2.047 in	52 mm	35 mm
KEMET ALA8DD241DC500	20 %	Radial Can - Snap-In	863.2 mOhm		1.378 "	147 mOhms	8000 Hrs	240 µF	Through Hole	7.14 A	-40 C	105 ░C	AEC-Q200	500 V	Automotive	37 mm	1.457 in	Polar	2.91 A			35 mm
KEMET ALA8DD511DE450	20 %	Radial Can - Snap-In	273 mOhm		1.378 "	574 mOhms	8000 Hrs	510 µF	Through Hole	3.65 A	-40 C	105 ░C	AEC-Q200	450 V	Automotive			Polar	1.94 A	1.85 in	47 mm	35 mm
