MSI1380 Series

Catalog

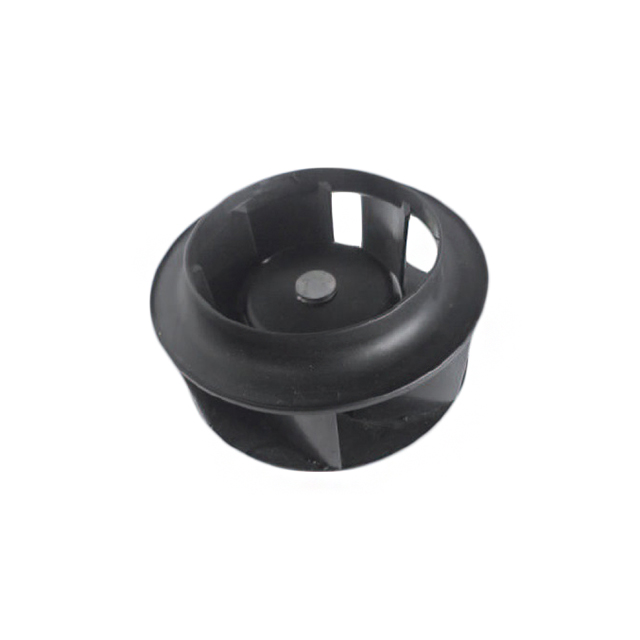

FAN IMP MTRZD 133X80.5MM 24VDC

Part	Current Rating (Amps)	Material - Blade	Approval Agency	Voltage - Rated	Features	Static Pressure	Static Pressure	Weight	Weight	RPM	Width [x]	Air Flow	Air Flow	Fan Type	Termination	Bearing Type	Size / Dimension [diameter]	Size / Dimension
Mechatronics Fan Group MSI1380H24B1-BBR	5 A	Plastic	CE cUL TUV UL	24 VDC	Auto Restart Speed Sensor (Tach)	443.4 Pa	1.78 in H2O	1.7 lbs	771.1 g	4500 RPM	80.5 mm	4.96 m³/min	177.1 CFM	Motorized Impellers	3 Wire Leads	Ball	133 mm	Round
Mechatronics Fan Group MSI1380H48B1+7-BBR	2.5 A	Plastic	CE cUL TUV UL	48 VDC	Auto Restart Speed Sensor (Tach) Voltage Control	443.4 Pa	1.78 in H2O	1.7 lbs	771.1 g	4500 RPM	80.5 mm	4.96 m³/min	177.1 CFM	Motorized Impellers	3 Wire Leads	Ball	133 mm	Round
Mechatronics Fan Group MSI1380H48B-BBR	2.5 A	Plastic	CE cUL TUV UL	48 VDC	Auto Restart	443.4 Pa	1.78 in H2O	1.7 lbs	771.1 g	4500 RPM	80.5 mm	4.96 m³/min	177.1 CFM	Motorized Impellers	2 Wire Leads	Ball	133 mm	Round
Mechatronics Fan Group MSI1380H48B2-BBR	2.5 A	Plastic	CE cUL TUV UL	48 VDC	Auto Restart Locked Rotor Sensor	443.4 Pa	1.78 in H2O	1.7 lbs	771.1 g	4500 RPM	80.5 mm	4.96 m³/min	177.1 CFM	Motorized Impellers	3 Wire Leads	Ball	133 mm	Round
Mechatronics Fan Group MSI1380H24B-BBR	5 A	Plastic	CE cUL TUV UL	24 VDC	Auto Restart	443.4 Pa	1.78 in H2O	1.7 lbs	771.1 g	4500 RPM	80.5 mm	4.96 m³/min	177.1 CFM	Motorized Impellers	2 Wire Leads	Ball	133 mm	Round
Mechatronics Fan Group MSI1380H24B2-BBR	5 A	Plastic	CE cUL TUV UL	24 VDC	Auto Restart Locked Rotor Sensor	443.4 Pa	1.78 in H2O	1.7 lbs	771.1 g	4500 RPM	80.5 mm	4.96 m³/min	177.1 CFM	Motorized Impellers	3 Wire Leads	Ball	133 mm	Round
Mechatronics Fan Group MSI1380H24B1+7-BBR	5 A	Plastic	CE cUL TUV UL	24 VDC	Auto Restart Speed Sensor (Tach)	443.4 Pa	1.78 in H2O	1.7 lbs	771.1 g	4500 RPM	80.5 mm	4.96 m³/min	177.1 CFM	Motorized Impellers	3 Wire Leads	Ball	133 mm	Round
Mechatronics Fan Group MSI1380H24B1+6-BBR	5 A	Plastic	CE cUL TUV UL	24 VDC	Auto Restart PWM Control Speed Sensor (Tach)	443.4 Pa	1.78 in H2O	1.7 lbs	771.1 g	4500 RPM	80.5 mm	4.96 m³/min	177.1 CFM	Motorized Impellers	4 Wire Leads	Ball	133 mm	Round
