EGG.00.304 Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Ingress Protection	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Orientation [custom]	Shell Finish	Number of Positions	Termination	Fastening Type	Mounting Type	Contact Finish - Mating	Material Flammability Rating	Current Rating (Amps)	Insert Material	Shell Material	Connector Type	Shielding	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Contact Material	Features
LEMO EGG.00.304.CLN	IP50 - Dust Protected	Silver	1.5 Ám	59 Áin	304	G	Chrome	4	Solder	Push-Pull	Panel Mount Through Hole	Gold	UL94 V-0	2 A	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Shielded	Bulkhead - Rear Side Nut	-55 C	250 °C	Metal	Bronze

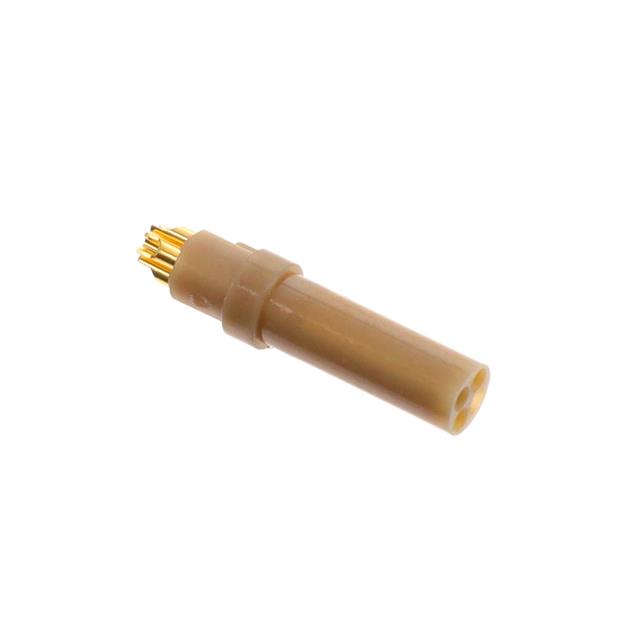

LEMO EGG.00.304.ZLL	IP50 - Dust Protected		1.5 Ám	59 Áin	304	G		4				Gold	UL94 V-0	2 A	Polyetheretherketone (PEEK)		Insert Female Sockets	Shielded		-55 C	250 °C		Bronze	Insert Only Requires Shell

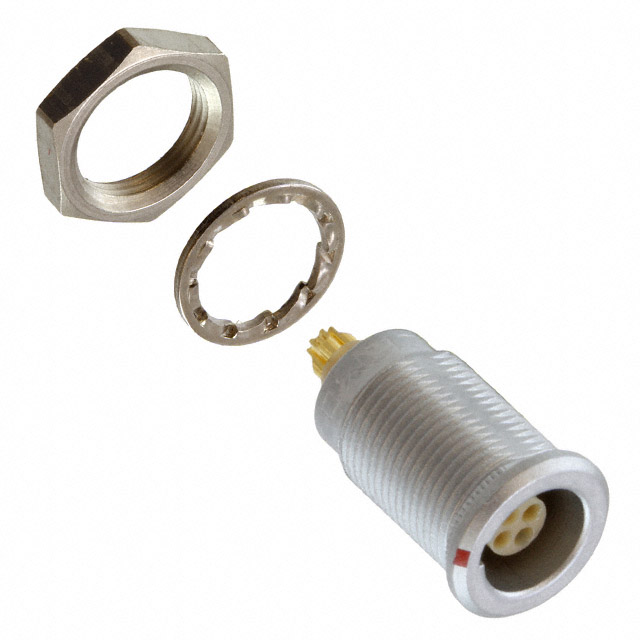

LEMO EGG.00.304.CLL	IP50 - Dust Protected	Silver	1.5 Ám	59 Áin	304	G	Chrome	4		Push-Pull	Panel Mount	Gold	UL94 V-0	2 A	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Shielded	Bulkhead - Rear Side Nut	-55 C	250 °C	Metal	Bronze

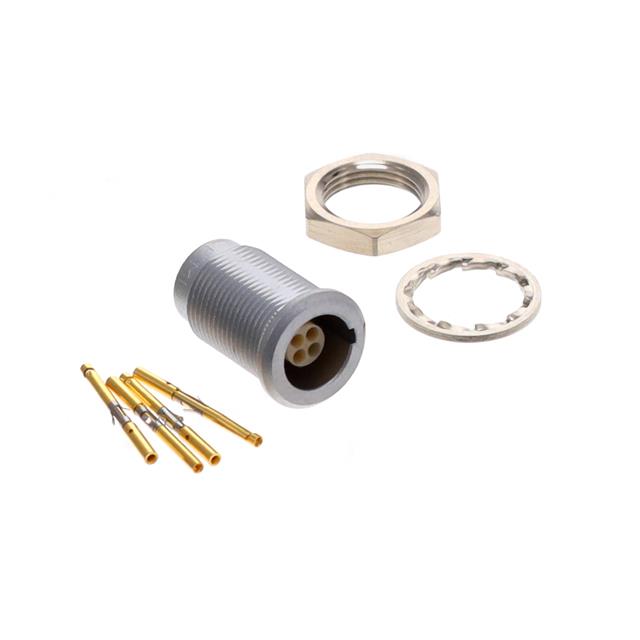

LEMO EGG.00.304.CYM	IP50 - Dust Protected	Silver	1.5 Ám	59 Áin	304	G	Chrome	4	Crimp	Push-Pull	Panel Mount	Gold	UL94 V-0	2 A	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Shielded	Bulkhead - Rear Side Nut	-55 C	250 °C	Metal	Bronze
