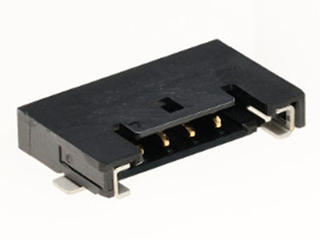

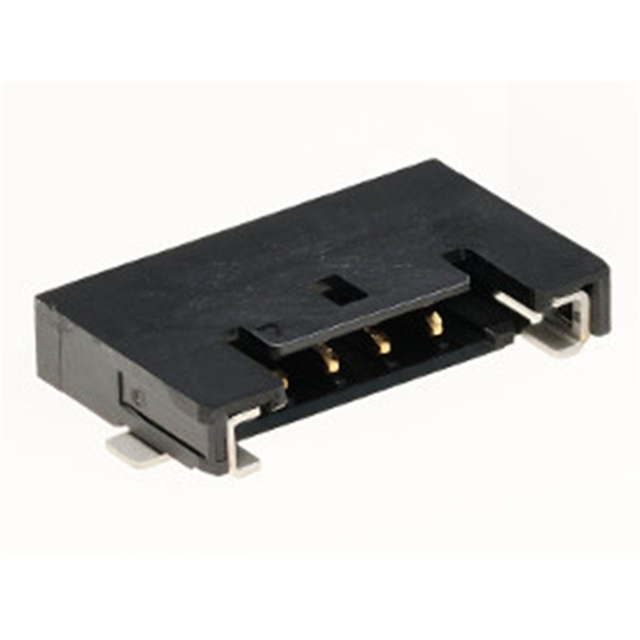

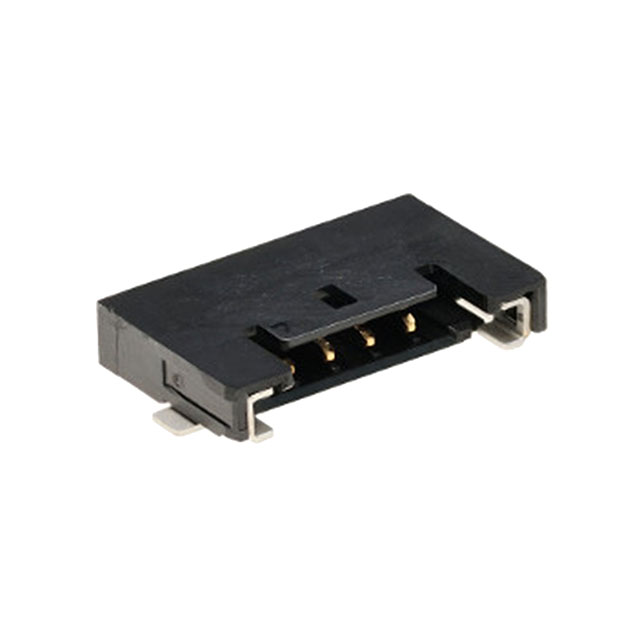

1.00mm Pitch, Pico-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Gold over Nickel Plating, Positive Lock, 5 Circuits, Tape and Reel
1.00mm Pitch, Pico-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Gold over Nickel Plating, Positive Lock, 5 Circuits, Tape and Reel
1.00mm Pitch, Pico-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Gold over Nickel Plating, Positive Lock, 5 Circuits, Tape and Reel
| Part | Contact Material | Insulation Material | Contact Type | Insulation Color | Mounting Type | Shrouding | Material Flammability Rating | Number of Positions Loaded | Voltage Rating | Style | Features | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Connector Type | Contact Finish - Mating | Fastening Type | Number of Rows | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Contact Shape | Current Rating (Amps) | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Copper Alloy | Nylon Polyamide (PA) | Male Pin | Black | Surface Mount Right Angle | Shrouded - 4 Wall | UL94 V-0 | All | 150 VDC | Board to Cable/Wire | Solder Retention | -40 °C | 105 ░C | 1.5 mm | 0.059 " | 0.039 in | 1 mm | Header | Gold | Detent Lock | 1 | Gold | 3.94 µin | 0.1 µm | Solder | Square | Varies by Wire Gauge | |
 Molex | Copper Alloy | Nylon Polyamide (PA) | Male Pin | Black | Surface Mount Right Angle | Shrouded - 4 Wall | UL94 V-0 | All | 150 VDC | Board to Cable/Wire | Solder Retention | -40 °C | 105 ░C | 1.5 mm | 0.059 " | 0.039 in | 1 mm | Header | Gold | Detent Lock | 1 | Gold | 3.94 µin | 0.1 µm | Solder | Square | Varies by Wire Gauge | |
 Molex | Copper Alloy | Nylon Polyamide (PA) | Male Pin | Black | Surface Mount Right Angle | Shrouded - 4 Wall | UL94 V-0 | All | 150 VDC | Board to Cable/Wire | Solder Retention | -40 °C | 105 ░C | 1.5 mm | 0.059 " | 0.039 in | 1 mm | Header | Gold | Detent Lock | 1 | Gold | 3.94 µin | 0.1 µm | Solder | Square | Varies by Wire Gauge | 2 |
