70236 Series

Catalog

CONN HEADER BLADE PWR 8POS PCB

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Layout, Typical	Pitch [x]	Pitch [x]	Termination	Connector Type	Color	Number of Positions Loaded	Current Rating (Amps)	Number of Positions	Connector Style	Contact Finish	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) 70236-142	0.76 Ám	30 Áin	Through Hole	8 Power	0.236 in	6 mm	Press-Fit	Header Male Blades	Natural	All	3 A	8	Blade Power	Gold	UL94 V-0	-55 °C	125 °C
Amphenol ICC (FCI) 70236-199LF	0.76 Ám	30 Áin	Through Hole	8 Power	0.236 in	6 mm	Press-Fit	Header Male Blades	Natural White	All	3 A	8	Blade Power	Gold	UL94 V-0	-55 °C	125 °C
Amphenol ICC (FCI) 70236-106	0.76 Ám	30 Áin	Through Hole	8 Power	0.236 in	6 mm	Press-Fit	Header Male Blades	Natural	All	3 A	8	Blade Power	Gold	UL94 V-0	-55 °C	125 °C

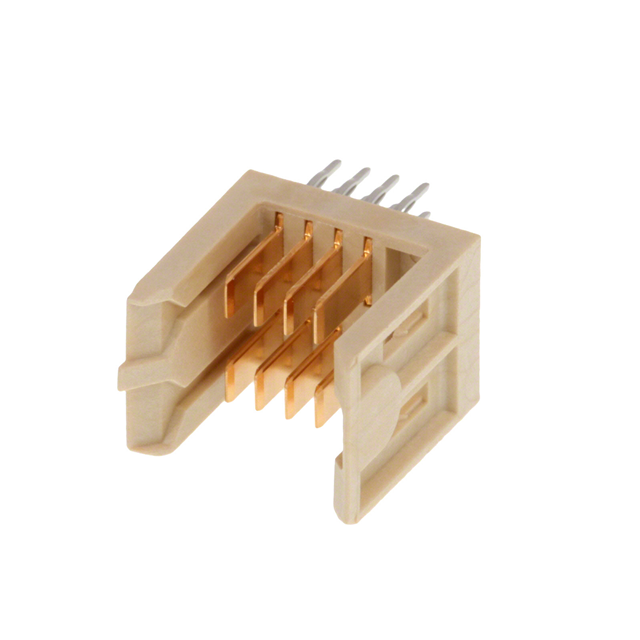

Amphenol ICC (FCI) 70236-101LF	0.76 Ám	30 Áin	Through Hole	8 Power	0.236 in	6 mm	Press-Fit	Header Male Blades	Natural White	All	3 A	8	Blade Power	Gold	UL94 V-0	-55 °C	125 °C
Amphenol ICC (FCI) 70236-901			Through Hole	8 Power	0.236 in	6 mm	Press-Fit	Header Male Blades	Natural	All	3 A	8	Blade Power		UL94 V-0	-55 °C	125 °C
Amphenol ICC (FCI) 70236-134	0.76 Ám	30 Áin	Through Hole	8 Power	0.236 in	6 mm	Press-Fit	Header Male Blades	Natural	All	3 A	8	Blade Power	Gold	UL94 V-0	-55 °C	125 °C
Amphenol ICC (FCI) 70236-121LF	0.76 Ám	30 Áin	Through Hole	8 Power	0.236 in	6 mm	Press-Fit	Header Male Blades	Natural White	All	3 A	8	Blade Power	Gold	UL94 V-0	-55 °C	125 °C
Amphenol ICC (FCI) 70236-105	0.76 Ám	30 Áin	Through Hole	8 Power	0.236 in	6 mm	Press-Fit	Header Male Blades	Natural	All	3 A	8	Blade Power	Gold	UL94 V-0	-55 °C	125 °C
Amphenol ICC (FCI) 70236-901LF			Through Hole	8 Power	0.236 in	6 mm	Press-Fit	Header Male Blades	Natural	All	3 A	8	Blade Power		UL94 V-0	-55 °C	125 °C
Amphenol ICC (FCI) 70236-103	0.76 Ám	30 Áin	Through Hole	8 Power	0.236 in	6 mm	Press-Fit	Header Male Blades	Natural	All	3 A	8	Blade Power	Gold	UL94 V-0	-55 °C	125 °C
