180-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB HD PLUG 15POS PNL MNT
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish Thickness | Contact Finish | Current Rating (Amps) | Contact Type | Material Flammability Rating | Connector Type | Mounting Type | Features | Number of Rows [custom] | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Number of Positions | Note | Shell Material, Finish | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

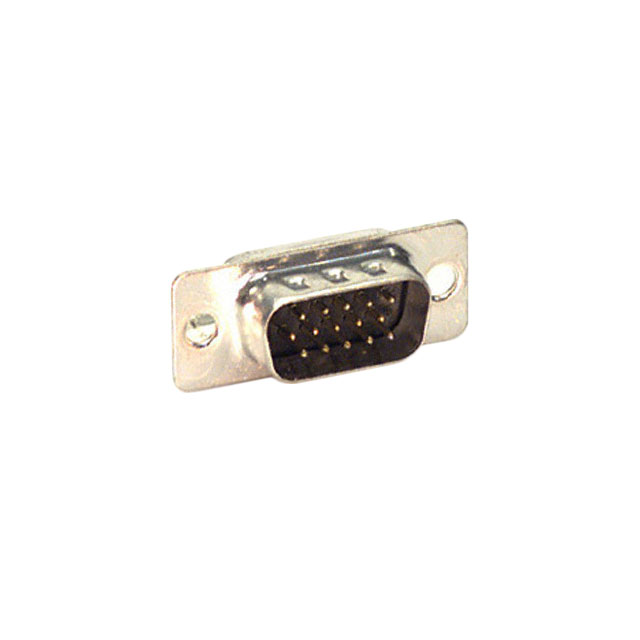

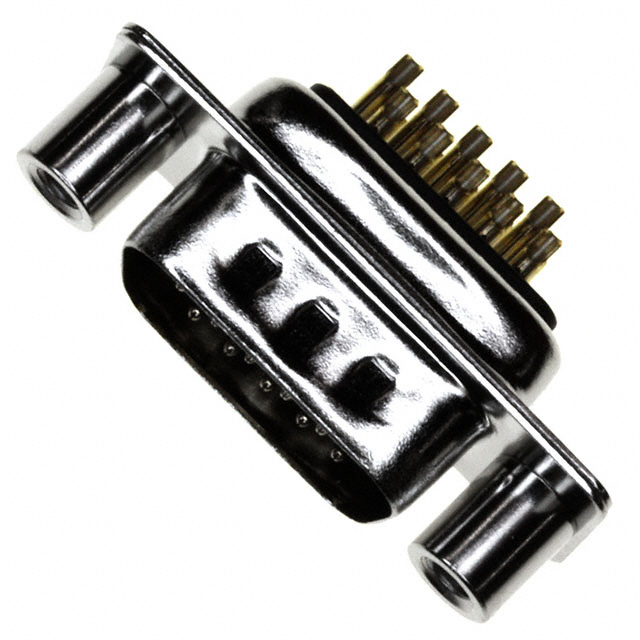

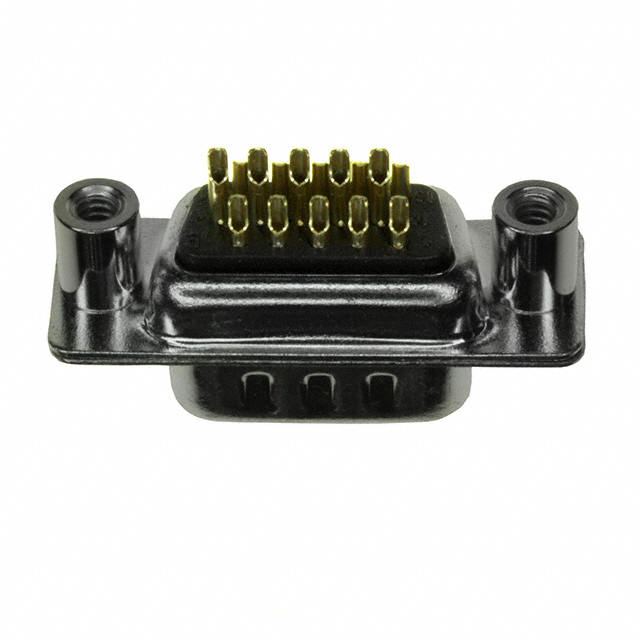

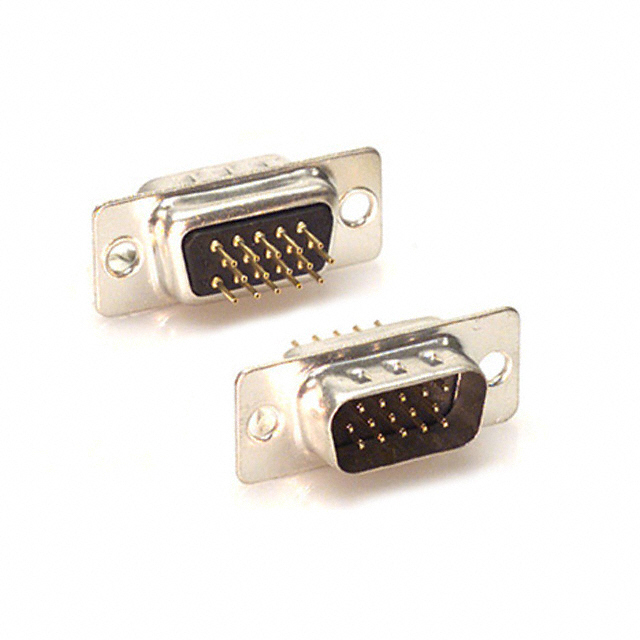

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Brass | Flash | Gold | 5 A | Signal | UL94 V-0 | Plug Male Pins | Panel Mount | Shielded | 3 | Steel | Yellow Chromate Plated | Cable Side (4-40) | (DE E) High Density | 1 | D-Sub High Density | 15 | |||
 NorComp Inc. | 100 °C | -50 °C | Signal | Plug for Male Contacts | Free Hanging (In-Line) | Shielded | 3 | Cable Side (4-40) | (DE E) High Density | 1 | D-Sub High Density | 15 | Contacts Not Included | ||||||||||

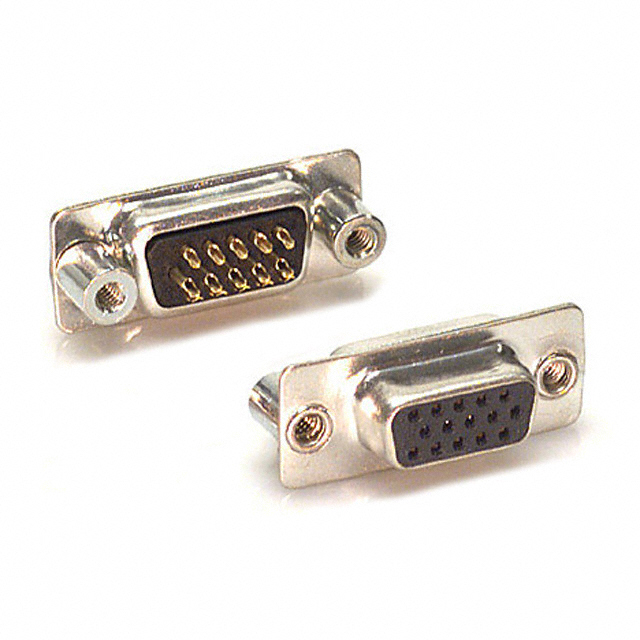

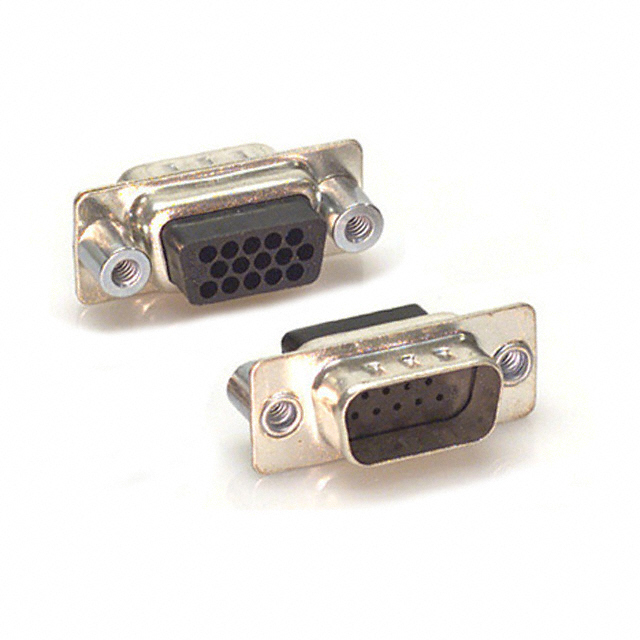

NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Brass | Flash | Gold | 5 A | Signal | UL94 V-0 | Receptacle Female Sockets | Panel Mount | Shielded | 3 | Steel | Yellow Chromate Plated | Cable Side (4-40) | (DE E) High Density | 1 | D-Sub High Density | 15 | |||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Brass | Flash | Gold | 5 A | Signal | UL94 V-0 | Plug Male Pins | Panel Mount | Grounding Indents Shielded | 3 | 4-40 | (DE E) High Density | 1 | D-Sub High Density | 15 | Nickel Plated Steel | ||||
 NorComp Inc. | 100 °C | -50 °C | Signal | Receptacle for Female Contacts | Free Hanging (In-Line) | 3 | Cable Side (4-40) | (DE E) High Density | 1 | D-Sub High Density | 15 | Contacts Not Included | Nickel Plated Steel | ||||||||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Brass | Flash | Gold | 5 A | Signal | UL94 V-0 | Receptacle Female Sockets | Panel Mount | Shielded | 3 | Cable Side (4-40) | (DE E) High Density | 1 | D-Sub High Density | 15 | Nickel Plated Steel | ||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Brass | Flash | Gold | 5 A | Signal | UL94 V-0 | Plug Male Pins | Panel Mount | Grounding Indents Shielded | 3 | Housing/Shell (Unthreaded) | (DE E) High Density | 1 | D-Sub High Density | 15 | |||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Brass | Flash | Gold | 5 A | Signal | UL94 V-0 | Plug Male Pins | Panel Mount | Grounding Indents Shielded | 3 | Cable Side (4-40) | (DE E) High Density | 1 | D-Sub High Density | 15 | |||||
NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Brass | Flash | Gold | 5 A | Signal | UL94 V-0 | Receptacle Female Sockets | Panel Mount | Shielded | 3 | Steel | Yellow Chromate Plated | Housing/Shell (Unthreaded) | (DE E) High Density | 1 | D-Sub High Density | 15 | |||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | Flash | Gold | 2 A | Signal | UL94 V-0 | Receptacle Female Sockets | Panel Mount | 3 | Cable Side (4-40) | (DE E) High Density | 1 | D-Sub High Density | 15 | Black |
