SWC27 Series

Manufacturer: CUI Inc.

Catalog

WALL MOUNT AC ADAPTERS 27W 5V 3A, 9V 3A, OR 12V2.25A NA USB C BK

Part	Input Connector	Efficiency	Input Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output	Output Connector	Approval Agency	Power (Watts)	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Current - Output (Max)	Form	No Load Power Consumption
CUI Inc. SWC27-T5912-NB	NEMA 1-15P	CoC Tier 2 Level VI	Fixed Blade	33.2 mm	1.31 "	52.5 mm	2.07 "	1.74 in	44.2 mm	5 V 9 V 12 V	USB C Receptacle	cULus FCC PSE	27 W	North America	40 °C	0 °C	88.9 g	0.196 lb	264 VAC	90 VAC	ITE (Commercial)	2.25 A 3 A	Wall Mount	75 mW

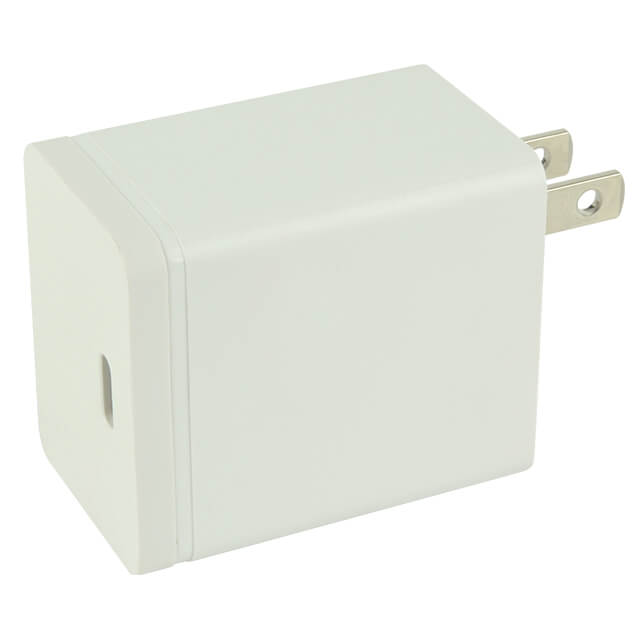

CUI Inc. SWC27-T5912-NW	NEMA 1-15P	CoC Tier 2 Level VI	Fixed Blade	33.2 mm	1.31 "	52.5 mm	2.07 "	1.74 in	44.2 mm	5 V 9 V 12 V	USB C Receptacle	cULus FCC PSE	27 W	North America	40 °C	0 °C	88.9 g	0.196 lb	264 VAC	90 VAC	ITE (Commercial)	2.25 A 3 A	Wall Mount	75 mW
