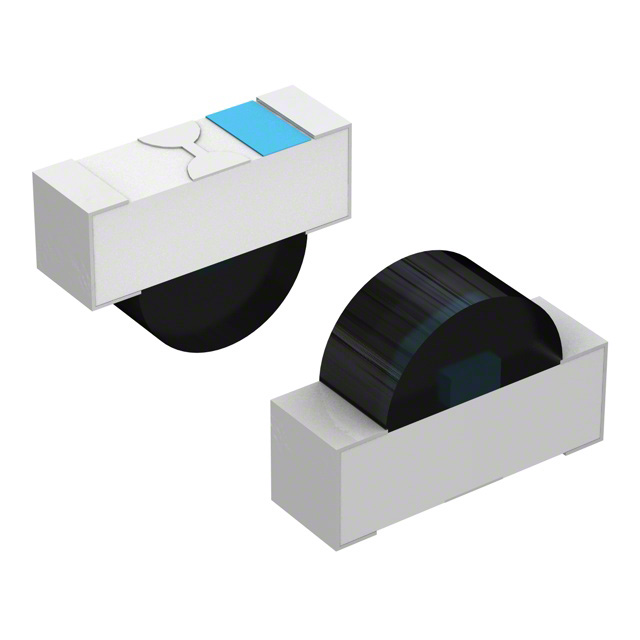

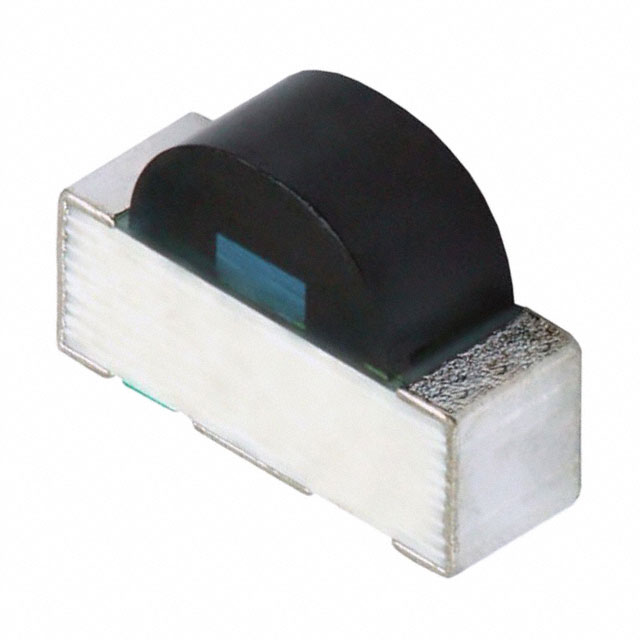

VEMD10940 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
SENSOR PHOTODIODE 920NM 2SMD
| Part | Active Area | Current - Dark (Typ) | Diode Type | Mounting Type | Package / Case | Wavelength | Voltage - DC Reverse (Vr) (Max) [Max] | Viewing Angle | Spectral Range [Min] [x] | Spectral Range [Max] [x] | Operating Temperature [Max] | Operating Temperature [Min] | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 0.23 mm² | 1 nA | PIN | Surface Mount Right Angle | 2-SMD No Lead | 920 nm | 60 V | 150 ° | 780 nm | 1050 nm | 100 °C | -40 °C | ||
 Vishay General Semiconductor - Diodes Division | 0.23 mm² | 1 nA | PIN | Surface Mount Right Angle | 2-SMD No Lead | 920 nm | 60 V | 150 ° | 780 nm | 1050 nm | 100 °C | -40 °C | AEC-Q101 | Automotive |
