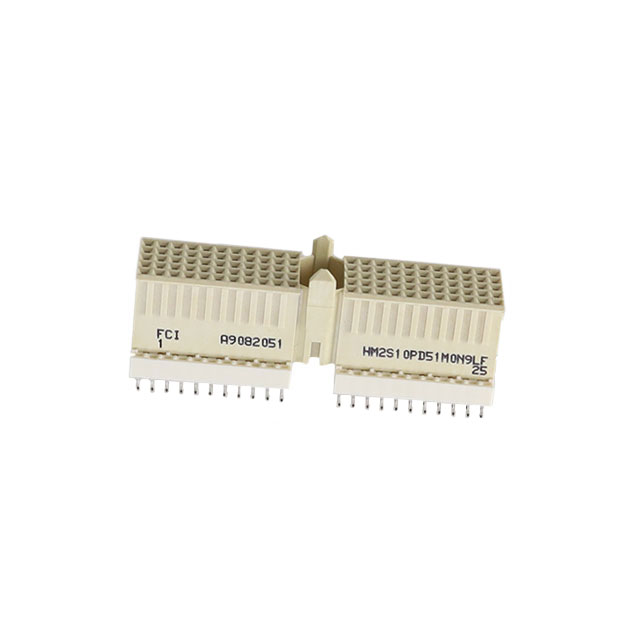

HM2S10 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
MPACS 5R STR REC
| Part | Current Rating (Amps) | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Number of Positions Loaded | Connector Style | Number of Rows | Connector Type | Pitch [x] | Pitch [x] | Termination | Mounting Type | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 1.5 A | Board Guide | -55 C | 125 °C | 500 VAC | All | A 22 | 5 | Receptacle Female Sockets | 0.079 in | 2 mm | Press-Fit | Through Hole | 110 | Gold | ||
Amphenol ICC (FCI) | 1.5 A | 500 VAC | |||||||||||||||
Amphenol ICC (FCI) | |||||||||||||||||
Amphenol ICC (FCI) | 1.5 A | Board Guide | -55 C | 125 °C | 750 Vrms | All | A 22 | 5 | Receptacle Female Sockets | 0.079 in | 2 mm | Press-Fit | Through Hole | 110 | Gold | ||
 Amphenol ICC (FCI) | 1.5 A | Upper and Lower Shield | -55 C | 125 °C | 750 Vrms | All | A 22 | 5 | Receptacle Female Sockets | 0.079 in | 2 mm | Press-Fit | Through Hole | 110 | Gold | 1 Ám | 39.4 Áin |
Amphenol ICC (FCI) | 1.5 A | -55 C | 125 °C | 750 Vrms | All | A 22 | 5 | Receptacle Female Sockets | 0.079 in | 2 mm | Press-Fit | Through Hole | 110 | Gold | 0.76 Ám | 30 Áin | |
Amphenol ICC (FCI) | |||||||||||||||||
Amphenol ICC (FCI) | 1.5 A | Upper and Lower Shield | -55 C | 125 °C | 500 V | All | A 22 | 5 | Receptacle Female Sockets | 0.079 in | 2 mm | Press-Fit | Through Hole | 110 | Gold | 0.76 Ám | 30 Áin |
 Amphenol ICC (FCI) | 1.5 A | -55 C | 125 °C | 750 Vrms | All | A 22 | 5 | Receptacle Female Sockets | 0.079 in | 2 mm | Press-Fit | Through Hole | 110 | Gold |
