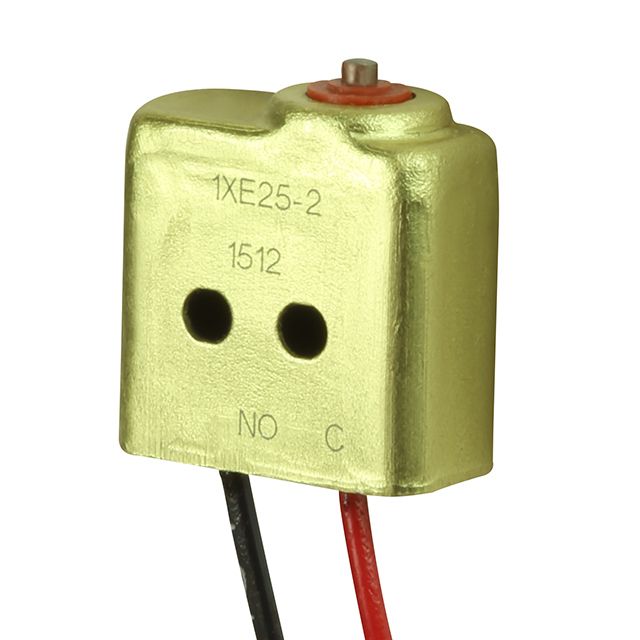

1XE25 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT SPST-NO 7A 115V
| Part | Pretravel | Pretravel | Voltage Rating - AC | Mounting Type | Current Rating (Amps) | Actuator Type | Switch Function | Release Force | Operating Force [Max] | Operating Force [Min] | Operating Position | Operating Position | Operating Temperature [Max] | Operating Temperature [Min] | Overtravel [custom] | Overtravel [custom] | Termination Style | Voltage Rating - DC | Differential Travel | Differential Travel | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 0.05 in | 1.27 mm | 115 V | Chassis Mount | 7 A | Round (Pin Plunger) | Off-Mom | 113 gf | 482 gf | 141 gf | 10.8 mm | 0.425 in | 105 ░C | -54 °C | 0.004 in | 0.1 mm | Wire Leads | 28 V | 0.005 in | 0.13 mm | SPST-NO |
