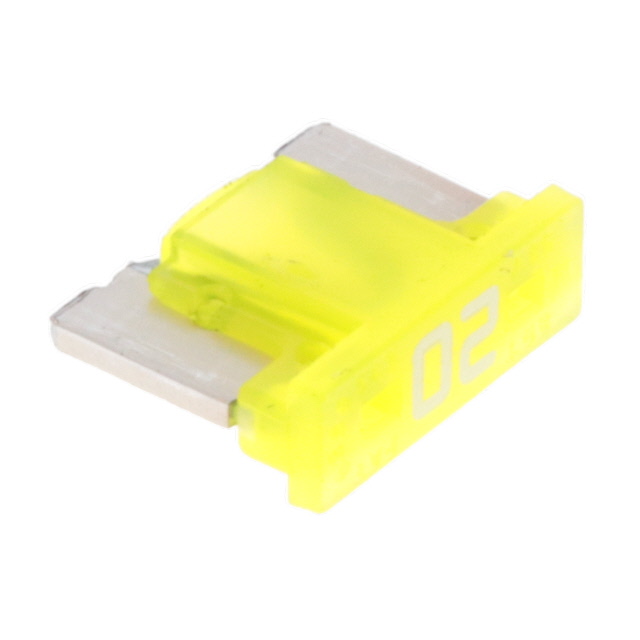

0891020.NXWS Series

Fuse - LP Mini 58VDC 10.9mm Blade Ag 20A

Catalog

Fuse - LP Mini 58VDC 10.9mm Blade Ag 20A

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	DC Cold Resistance	Fuse Type	Package / Case	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Breaking Capacity @ Rated Voltage	Melting I²t	Color
Littelfuse/Commercial Vehicle Products 0891020.NXWS	0.429 "	0.15 in	3.81 mm	8.73 mm	0.344 "	10.9 mm	125 °C	-40 °C	3.35 Ohms	Automotive	Blade Miniature (Low Profile)	58 VDC	20 A	Requires Holder	1 kA	420	Yellow

Fuse - LP Mini 58VDC 10.9mm Blade Ag 20A

• Fast-acting

• Yellow housing indicates 20 A rating

• Silver-plated zinc terminals

• Net weight 0.4 g ±15 %

• Complies with ISO 8820-9

• UL Recognized as a UL 248 Special Purpose Fuse

This 20 A Low Profile MINI® 10.9 mm fuse protects circuit protection as well as larger and heavier MINI 58V blade fuses.
