DVF14 Series

Catalog

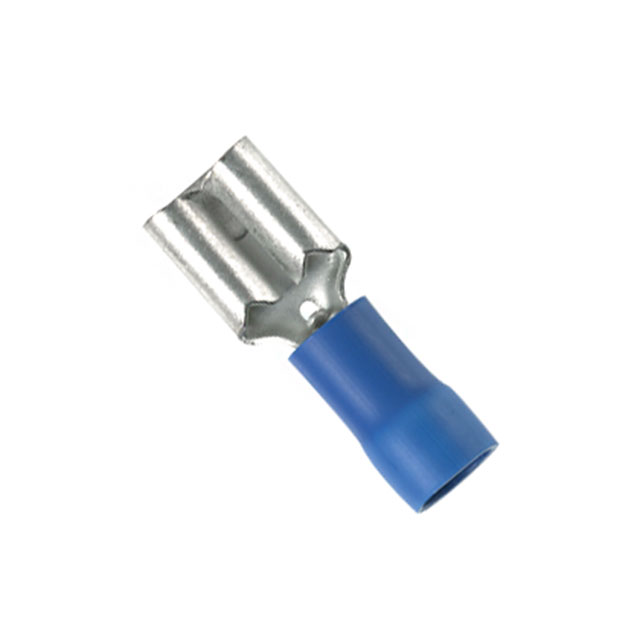

CONN QC RCPT 14-16AWG 0.250

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Color	Contact Finish	Tab Thickness	Tab Thickness	Contact Material	Tab Width [x]	Tab Width [x]	Gender	Insulation	Mounting Type	Termination	Length - Overall [x]	Length - Overall [x]	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]
Panduit Corp DVF14-250-M	4.11 mm	0.162 in	Blue	Tin	0.81 mm	0.032 in	Brass	6.35 mm	0.25 in	Female	Non-Mating End Insulated	Free Hanging (In-Line)	Crimp	0.81 "	20.57 mm	Standard	14 AWG	16 AWG
Panduit Corp DVF14-188-M	4.11 mm	0.162 in	Blue	Tin	0.51 mm	0.02 in	Brass	4.75 mm	0.187 in	Female	Non-Mating End Insulated	Free Hanging (In-Line)	Crimp	0.76 "	19.3 mm	Standard	14 AWG	16 AWG
Panduit Corp DVF14-250-C	4.11 mm	0.162 in	Blue	Tin	0.81 mm	0.032 in	Brass	6.35 mm	0.25 in	Female	Non-Mating End Insulated	Free Hanging (In-Line)	Crimp	0.81 "	20.57 mm	Standard	14 AWG	16 AWG
