3500 Series

Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power

Manufacturer: Keystone Electronics

Catalog

Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power

Catalog

Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power

Part	Tail Type	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Termination	Contact Finish	Contact Material	Flange Diameter	Contact Finish Thickness	Socket Depth	Mounting Hole Diameter	Length - Overall	Type	Between Board Height	Screw Thread Size	Gender	Length - Overall (Max)	Length - Overall (Min)	Material	Threaded/Unthreaded	Plating	Diameter - Outside (Nominal)	Diameter - Outside	Tail Diameter	Mounting Type	Insulation	Tab Thickness	Terminal Type	Tab Length

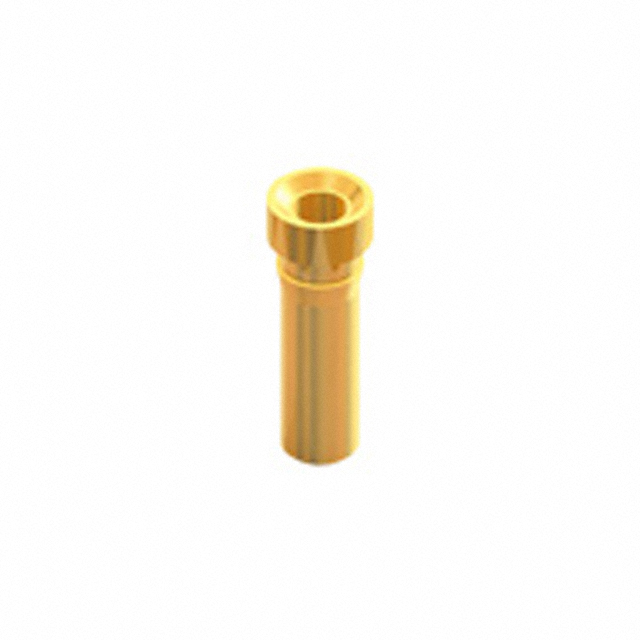

Keystone Electronics 3507	No Tail	0.015 in	0.025 in	Press-Fit	Tin-Lead	Beryllium Copper	0.072 in	200 µin	0.16 in	0.055 in	0.203 in

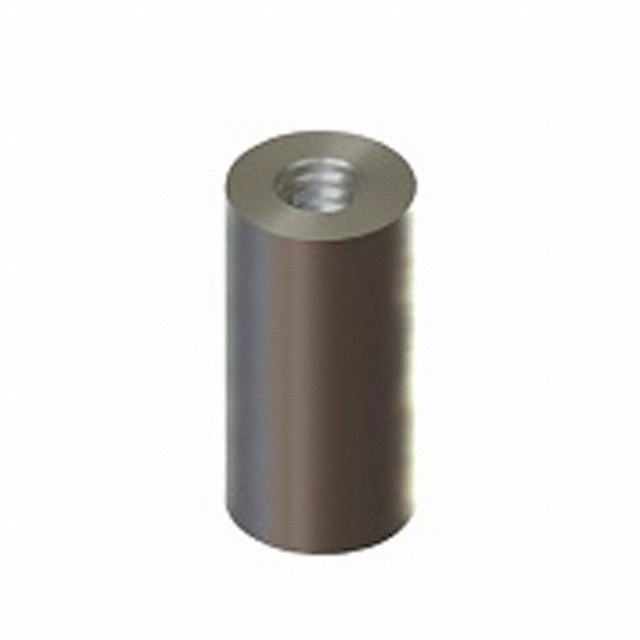

Keystone Electronics 3500D											0.75 in	Round Standoff	0.75 in	#10-32	Female	0.75 in	0.75 in	Aluminum	Threaded	Iridite	0.3125 in	0.313 in
Keystone Electronics 3591	Standard Tail	0.025 in	0.037 in	Solder	Tin	Beryllium Copper	0.078 in	200 µin	0.18 in	0.065 in	0.397 in												0.062 in
Keystone Electronics 3500F											1 in	Round Standoff	1 in	#10-32	Female			Aluminum	Threaded	Iridite	0.3125 in	0.313 in
Keystone Electronics 3593	No Tail	0.032 in	0.046 in	Crimp	Gold	Beryllium Copper		10 Ąin	0.2 in		0.53 in

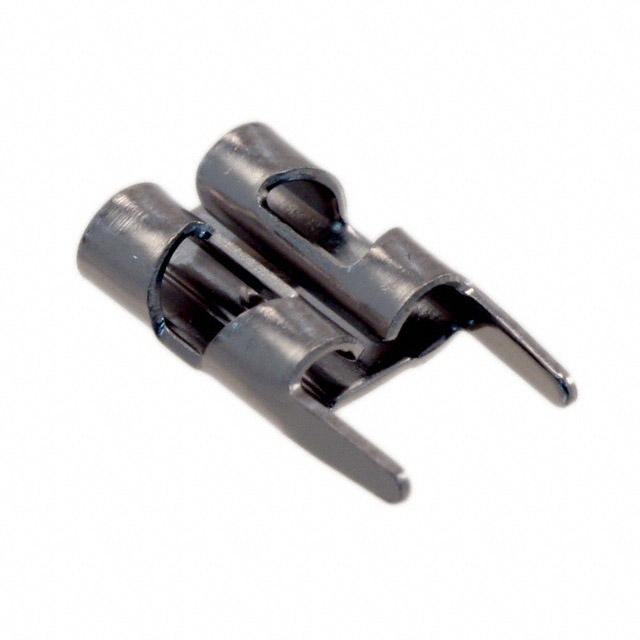

Keystone Electronics 3578				Solder	Tin	Brass					0.42 in				Female									Through Hole	Non-Insulated	0.016 in	Standard	0.27 in
