AFV10700 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

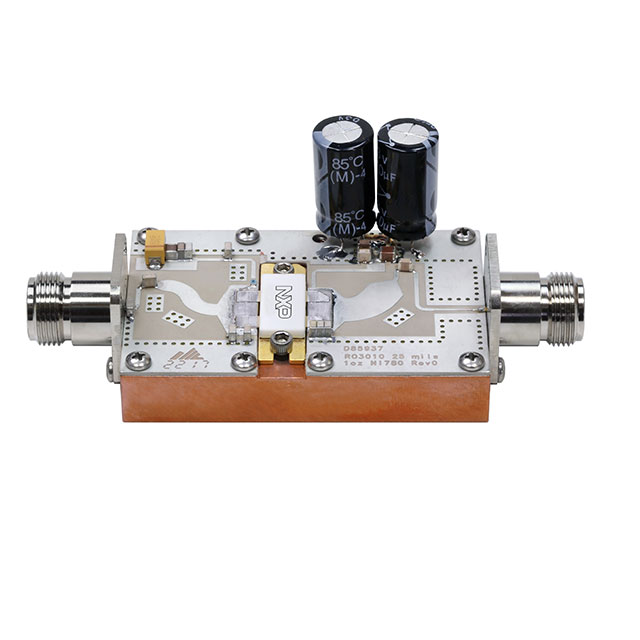

AFV10700H 960-1215 MHZ REFERENCE CIRCUIT ROHS COMPLIANT: YES
| Part | Supplied Contents | For Use With/Related Products | Utilized IC / Part | Type | Frequency (Min) | Frequency (Max) | Contents | Power - Output | Current Rating | Technology | Current - Test | Mounting Type | Voltage - Rated | Configuration | Package / Case | Voltage - Test | Package Name | Gain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | Board(s) | AFV10700H | AFV10700H | Transistor | 1.03 GHz | 1.09 GHz | Board | |||||||||||
 NXP USA Inc. | 1.03 GHz | 1.09 GHz | 770 W | 10 µA | LDMOS | 100 mA | Surface Mount | 105 V | Dual | NI-780S-4L | 50 V | NI-780S-4L | 19.2 dB | |||||
 NXP USA Inc. | 1.03 GHz | 1.09 GHz | 770 W | 1 µA | LDMOS | 100 mA | Chassis Mount | 105 V | Dual | NI-780-4 | 50 V | NI-780-4 | 19.2 dB | |||||
 NXP USA Inc. | 1.03 GHz | 1.09 GHz | 700 W | 10 µA | LDMOS | 100 mA | Chassis Mount | 105 V | Dual | NI-780GS-4L | 50 V | NI-780GS-4L | 19.2 dB |
