172299 Series

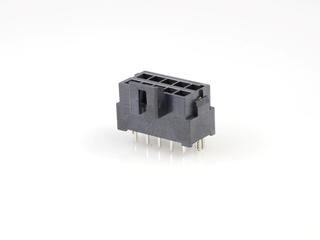

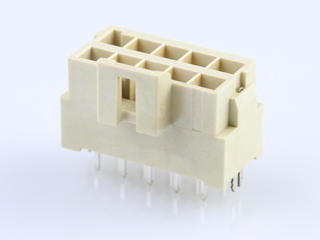

Ultra-Fit Vertical Header, 3.50mm Pitch, Dual Row, 10 Circuits, with Solder Clips, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable
Manufacturer: Molex
Catalog
Ultra-Fit Vertical Header, 3.50mm Pitch, Dual Row, 10 Circuits, with Solder Clips, 0.38µm Gold (Au) Plating, Natural, Glow-Wire Capable

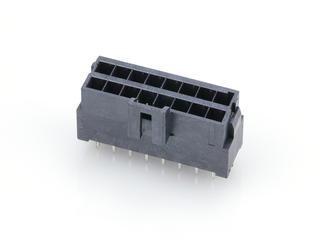

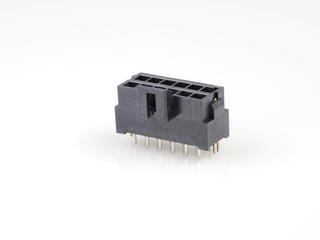

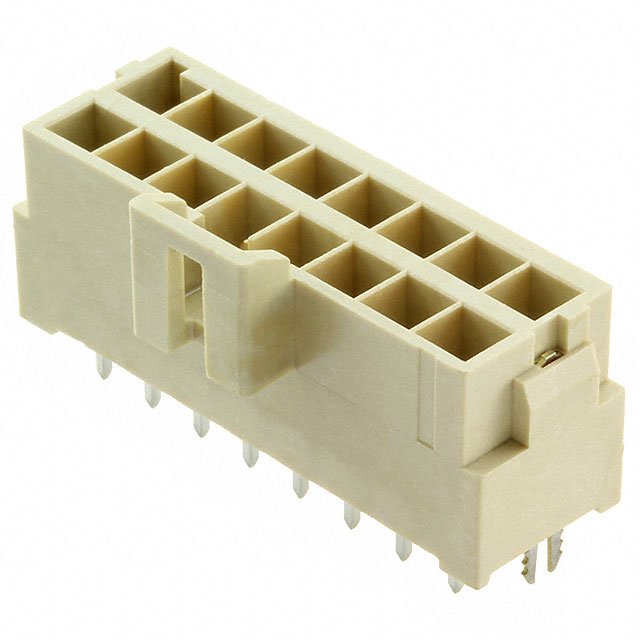

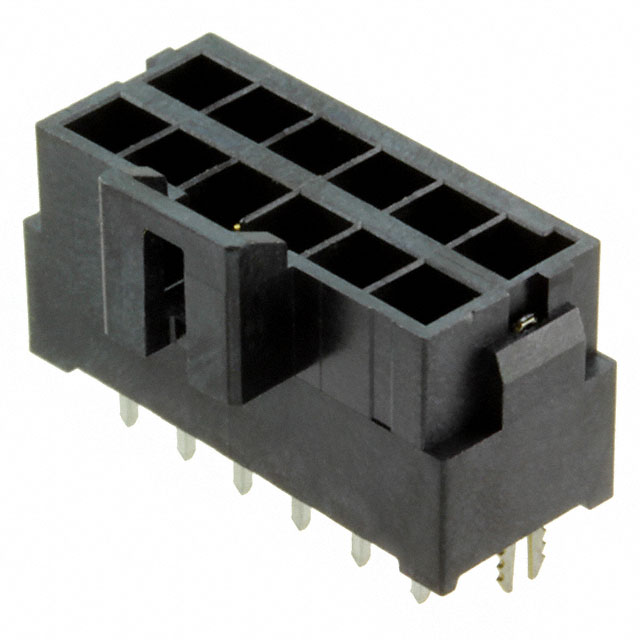

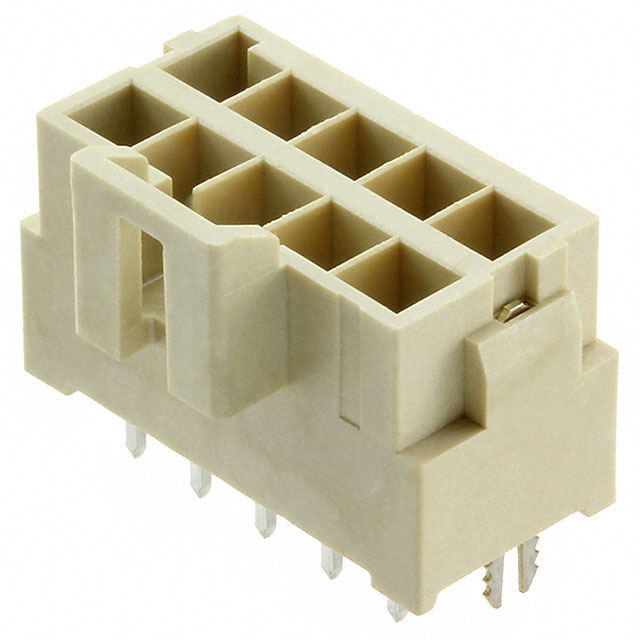

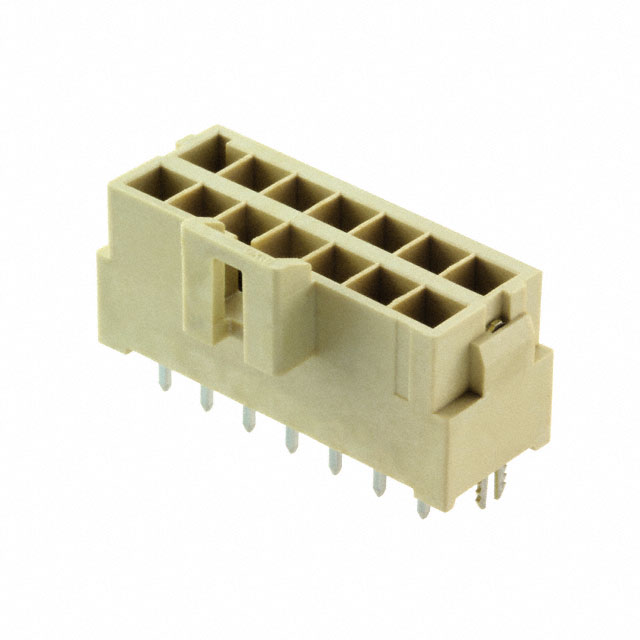

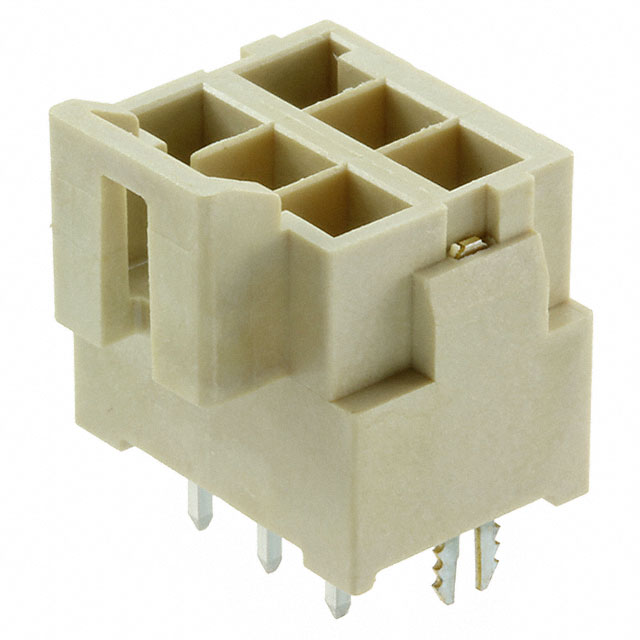

| Part | Insulation Height | Insulation Height | Contact Type | Contact Length - Post | Contact Length - Post [x] | Insulation Color | Material Flammability Rating | Applications | Features | Number of Rows | Style | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Mating | Connector Type | Shrouding | Termination | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Number of Positions Loaded | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insulation Material | Mated Stacking Heights | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.465 in | 11.8 mm | Male Pin | 3.2 mm | 0.126 in | Natural | UL94 V-0 | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Board Guide Solder Retention | 2 | Board to Cable/Wire | Through Hole | 4.6 mm | 0.181 in | Gold | Header | Shrouded - 4 Wall | Solder | Latch Holder | -40 °C | 120 °C | 8 | 0.138 in | 3.5 mm | 400 V | 60 µin | 1.52 µm | Square | All | Tin | 15 µin | 0.38 µm | Copper Alloy | Liquid Crystal Polymer (LCP) | 26.99 mm | |
 Molex | 0.465 in | 11.8 mm | Male Pin | 3.2 mm | 0.126 in | Black | UL94 V-0 | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Board Guide Solder Retention | 2 | Board to Cable/Wire | Through Hole | 4.6 mm | 0.181 in | Gold | Header | Shrouded - 4 Wall | Solder | Latch Holder | -40 °C | 120 °C | 12 | 0.138 in | 3.5 mm | 400 V | 60 µin | 1.52 µm | Square | All | Tin | 15 µin | 0.38 µm | Copper Alloy | Liquid Crystal Polymer (LCP) | 26.99 mm | |
 Molex | 0.465 in | 11.8 mm | Male Pin | 3.2 mm | 0.126 in | Natural | UL94 V-0 | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Board Guide Solder Retention | 2 | Board to Cable/Wire | Through Hole | 4.6 mm | 0.181 in | Gold | Header | Shrouded - 4 Wall | Solder | Latch Holder | -40 °C | 120 °C | 0.138 in | 3.5 mm | 400 V | 60 µin | 1.52 µm | Square | All | Tin | 30 Áin | 0.76 Ám | Copper Alloy | Liquid Crystal Polymer (LCP) | 26.99 mm | 16 | |
Molex | 0.465 in | 11.8 mm | Male Pin | 3.2 mm | 0.126 in | Black | UL94 V-0 | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Board Guide Solder Retention | 2 | Board to Cable/Wire | Through Hole | 4.6 mm | 0.181 in | Gold | Header | Shrouded - 4 Wall | Solder | Latch Holder | -40 °C | 120 °C | 12 | 0.138 in | 3.5 mm | 400 V | 60 µin | 1.52 µm | Square | All | Tin | 30 Áin | 0.76 Ám | Copper Alloy | Liquid Crystal Polymer (LCP) | 26.99 mm | |
 Molex | 0.465 in | 11.8 mm | Male Pin | 3.2 mm | 0.126 in | Natural | UL94 V-0 | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Board Guide Solder Retention | 2 | Board to Cable/Wire | Through Hole | 4.6 mm | 0.181 in | Gold | Header | Shrouded - 4 Wall | Solder | Latch Holder | -40 °C | 120 °C | 10 | 0.138 in | 3.5 mm | 400 V | 60 µin | 1.52 µm | Square | All | Tin | 15 µin | 0.38 µm | Copper Alloy | Liquid Crystal Polymer (LCP) | 26.99 mm | |
 Molex | 0.465 in | 11.8 mm | Male Pin | 3.2 mm | 0.126 in | Natural | UL94 V-0 | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Board Guide Solder Retention | 2 | Board to Cable/Wire | Through Hole | 4.6 mm | 0.181 in | Gold | Header | Shrouded - 4 Wall | Solder | Latch Holder | -40 °C | 120 °C | 14 | 0.138 in | 3.5 mm | 400 V | 60 µin | 1.52 µm | Square | All | Tin | 15 µin | 0.38 µm | Copper Alloy | Liquid Crystal Polymer (LCP) | 26.99 mm | |
 Molex | 0.465 in | 11.8 mm | Male Pin | 3.2 mm | 0.126 in | Black | UL94 V-0 | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Board Guide Solder Retention | 2 | Board to Cable/Wire | Through Hole | 4.6 mm | 0.181 in | Header | Shrouded - 4 Wall | Solder | Latch Holder | -40 °C | 105 ░C | 6 | 0.138 in | 3.5 mm | 400 V | 60 µin | 1.52 µm | Square | All | Tin | 60 Áin | 1.52 Ám | Copper Alloy | Liquid Crystal Polymer (LCP) | 26.99 mm | ||
 Molex | 0.465 in | 11.8 mm | Male Pin | 3.2 mm | 0.126 in | Black | UL94 V-0 | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Board Guide Solder Retention | 2 | Board to Cable/Wire | Through Hole | 4.6 mm | 0.181 in | Gold | Header | Shrouded - 4 Wall | Solder | Latch Holder | -40 °C | 120 °C | 10 | 0.138 in | 3.5 mm | 400 V | 60 µin | 1.52 µm | Square | All | Tin | 30 Áin | 0.76 Ám | Copper Alloy | Liquid Crystal Polymer (LCP) | 26.99 mm | |
 Molex | 0.465 in | 11.8 mm | Male Pin | 3.2 mm | 0.126 in | Natural | UL94 V-0 | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Board Guide Solder Retention | 2 | Board to Cable/Wire | Through Hole | 4.6 mm | 0.181 in | Gold | Header | Shrouded - 4 Wall | Solder | Latch Holder | -40 °C | 120 °C | 6 | 0.138 in | 3.5 mm | 400 V | 60 µin | 1.52 µm | Square | All | Tin | 15 µin | 0.38 µm | Copper Alloy | Liquid Crystal Polymer (LCP) | 26.99 mm | |
 Molex | 0.465 in | 11.8 mm | Male Pin | 3.2 mm | 0.126 in | Black | UL94 V-0 | Automotive General Purpose Industrial Lighting Medical Military Telecommunications | Board Guide Solder Retention | 2 | Board to Cable/Wire | Through Hole | 4.6 mm | 0.181 in | Header | Shrouded - 4 Wall | Solder | Latch Holder | -40 °C | 105 ░C | 10 | 0.138 in | 3.5 mm | 400 V | 60 µin | 1.52 µm | Square | All | Tin | 60 Áin | 1.52 Ám | Copper Alloy | Liquid Crystal Polymer (LCP) | 26.99 mm |
