H9020 Series
Manufacturer: Harwin Inc.
Beta
⌘K

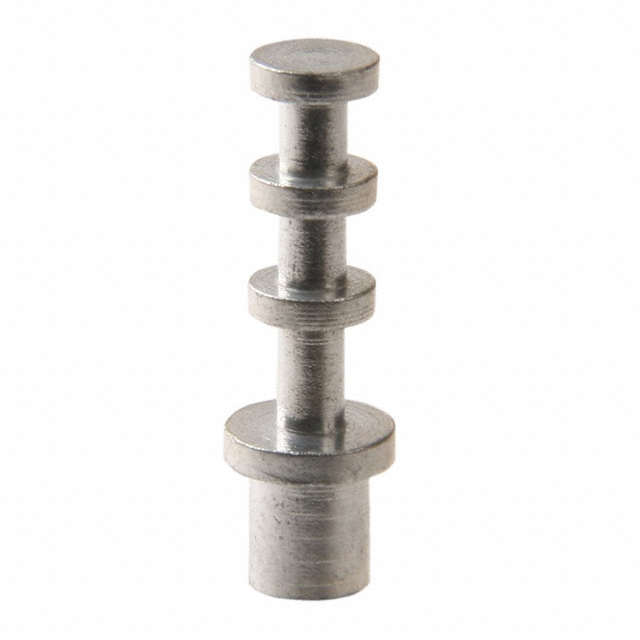

TURRET SOLDER / PRESS MOUNT TERMINAL, NON INSULATED, 2.45 MM, TIN, 10.04 MM, 2.39 MM
| Part | Length - Overall [x] | Length - Overall [x] | Contact Finish | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Number of Turrets | Insulation | Termination | Length - Above Board [x] | Length - Above Board [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Terminal Type | Mounting Type | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Board Thickness | Board Thickness | Staking Side ID [diameter] | Staking Side ID [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 10.03 mm | 0.395 " | Tin | 2.36 mm | 0.093 in | 2.39 mm | 0.094 " | Triple | Non-Insulated | Swage | 0.301 in | 7.65 mm | 0.125 in | 3.18 mm | Brass Alloy | Single End | Through Hole | 0.092 in | 2.44 mm | 0.096 in | 2.34 mm | 0.063 in | 1.6 mm | 1.63 mm | 0.064 " |
