627-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

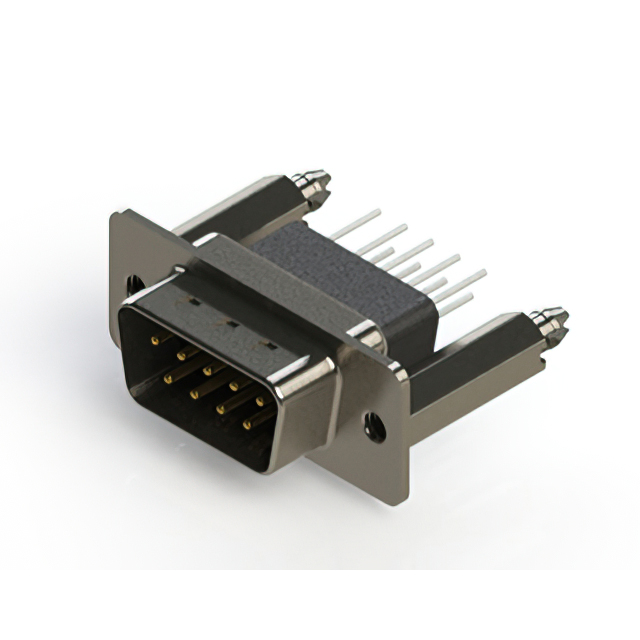

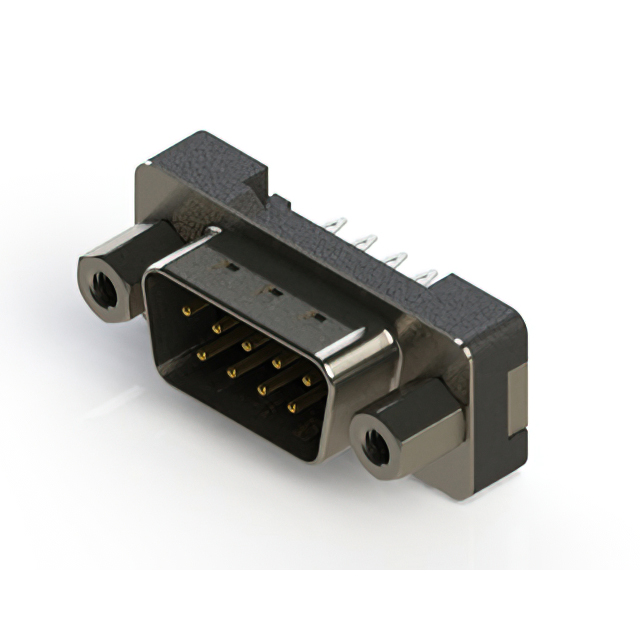

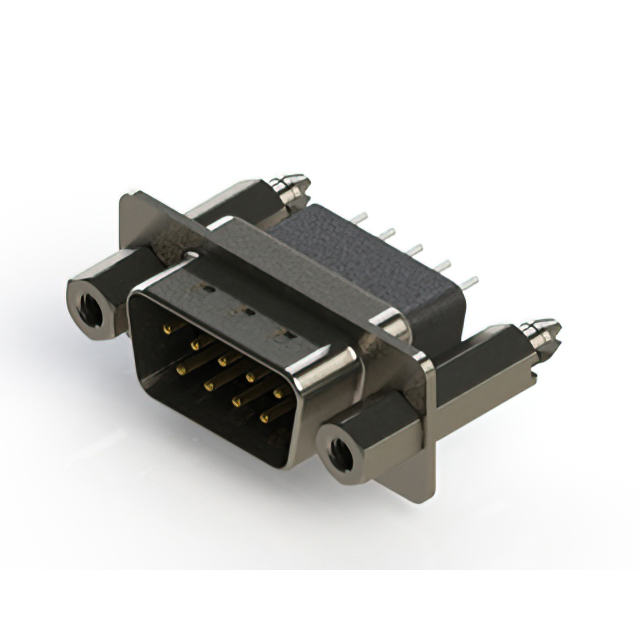

627 SERIES VERTICAL D-SUB PLUG C
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Material Flammability Rating | Current Rating (Amps) | Number of Positions | Shell Material, Finish | Termination | Features | Contact Finish | Number of Rows [custom] | Contact Type | Flange Feature | Contact Finish Thickness | Connector Type | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass | Black | UL94 V-0 | 3 A | 9 | Nickel Plated Steel | Solder | Board Lock Grounding Indents Shielded | Gold | 2 | Signal | Board Side (4-40) | Flash | Plug Male Pins | D-Sub | 1 | DE E | Through Hole | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass | Black | UL94 V-0 | 3 A | 9 | Nickel Plated Steel | Solder | Grounding Indents Shielded | Gold | 2 | Signal | Board Side (4-40) | Plug Male Pins | D-Sub | 1 | DE E | Through Hole | 30 Áin | 0.76 Ám | |
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass | Black | UL94 V-0 | 3 A | 9 | Nickel Plated Steel | Solder | Grounding Indents Shielded | Gold | 2 | Signal | Board Side (4-40) | Plug Male Pins | D-Sub | 1 | DE E | Through Hole | 30 Áin | 0.76 Ám | |
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass | Black | UL94 V-0 | 3 A | 9 | Solder | Board Lock Grounding Indents Shielded | Gold | 2 | Signal | Board Side (4-40) | Plug Male Pins | D-Sub | 1 | DE E | Through Hole | 15 µin | 0.38 µm | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass | Black | UL94 V-0 | 3 A | 9 | Solder | Board Lock Grounding Indents Shielded | Gold | 2 | Signal | Board Side (4-40) | Plug Male Pins | D-Sub | 1 | DE E | Through Hole | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass | Black | UL94 V-0 | 3 A | 9 | Solder | Board Lock Grounding Indents Shielded | Gold | 2 | Signal | Board Side (4-40) | Flash | Plug Male Pins | D-Sub | 1 | DE E | Through Hole | |||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass | Black | UL94 V-0 | 3 A | 9 | Nickel Plated Steel | Solder | Shielded | Gold | 2 | Signal | Board Side (4-40) | Plug Male Pins | D-Sub | 1 | DE E | Through Hole | 30 Áin | 0.76 Ám | |
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass | Black | UL94 V-0 | 3 A | 9 | Nickel Plated Steel | Press-Fit | Board Lock Grounding Indents Shielded | Gold | 2 | Signal | Board Side (4-40) | Flash | Plug Male Pins | D-Sub | 1 | DE E | Through Hole | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass | Black | UL94 V-0 | 3 A | 9 | Solder | Board Lock Grounding Indents Shielded | Gold | 2 | Signal | Board Side (4-40) | Plug Male Pins | D-Sub | 1 | DE E | Through Hole | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 85 °C | Polyester Thermoplastic | Brass | Black | UL94 V-0 | 3 A | 9 | Solder | Grounding Indents Shielded | Gold | 2 | Signal | Board Side (4-40) | Plug Male Pins | D-Sub | 1 | DE E | Through Hole | 15 µin | 0.38 µm |
