1.5M24 Series
Manufacturer: ULTRAVOLT / Advanced Energy
Beta
⌘K
DC DC CONVERTER 1500V 1W
| Part | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Mounting Type | Number of Outputs | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Type | Current - Output (Max) [Max] | Features | Package / Case | Approval Agency | Voltage - Input (Min) [Min] | Applications | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

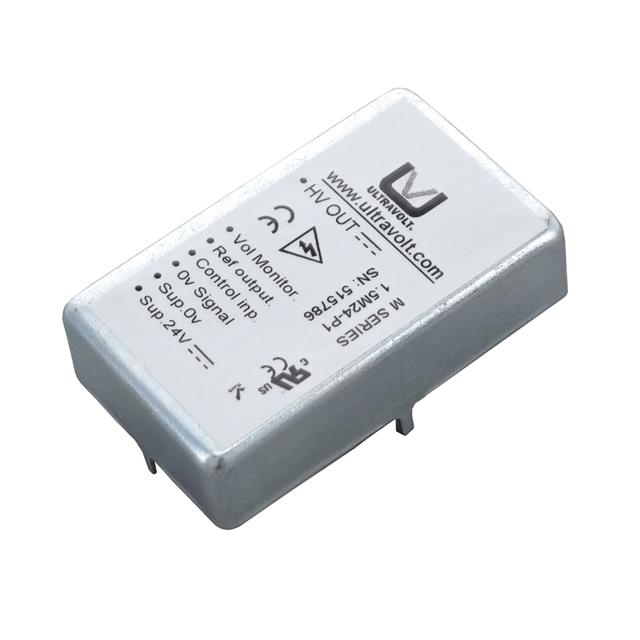

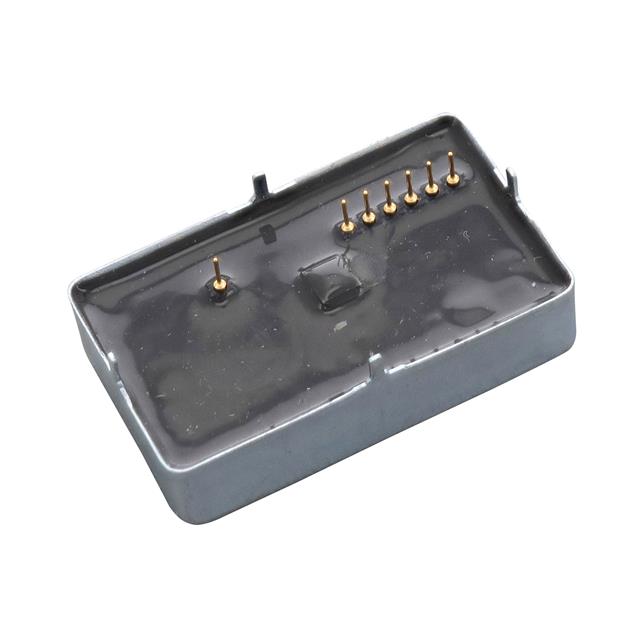

 ULTRAVOLT / Advanced Energy | 1500 V | 65 °C | -10 °C | Active High Enable | Through Hole | 1 | 47 mm | 12.5 mm | 28 mm | 1.85 in | 0.49 " | 1.1 in | 26 V | High Voltage - Non-Isolated Module | 670 µA | SCP | 9-SIP Module 7 Leads | CE cURus | 22 V | ITE (Commercial) | |

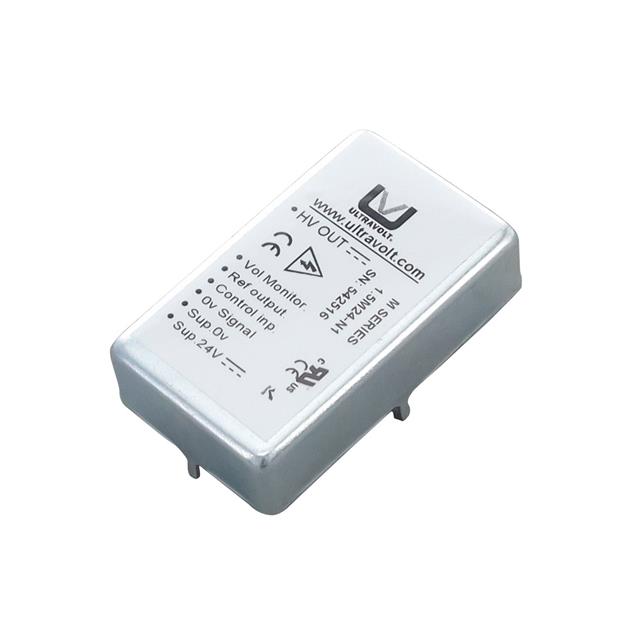

 ULTRAVOLT / Advanced Energy | 1500 V | 65 °C | -10 °C | Active Low Enable | Through Hole | 1 | 47 mm | 12.5 mm | 28 mm | 1.85 in | 0.49 " | 1.1 in | 26 V | High Voltage - Non-Isolated Module | 670 µA | SCP | 9-SIP Module 7 Leads | CE cURus | 22 V | ITE (Commercial) | |

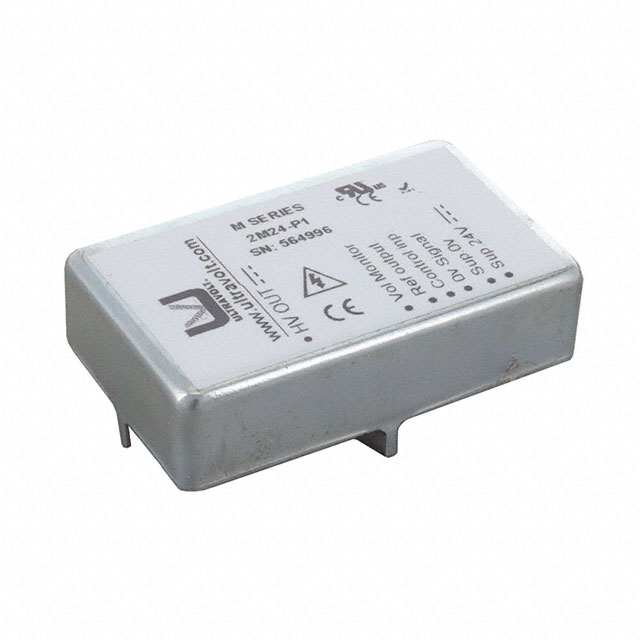

 ULTRAVOLT / Advanced Energy | 1500 V | 65 °C | -10 °C | Through Hole | 1 | 47 mm | 12.5 mm | 28 mm | 1.85 in | 0.49 " | 1.1 in | 26 V | High Voltage - Isolated Module | 670 µA | Adjustable Output | 9-SIP Module 7 Leads | CE cUL cURus UL | 22 V | ITE (Commercial) | 15 W |
