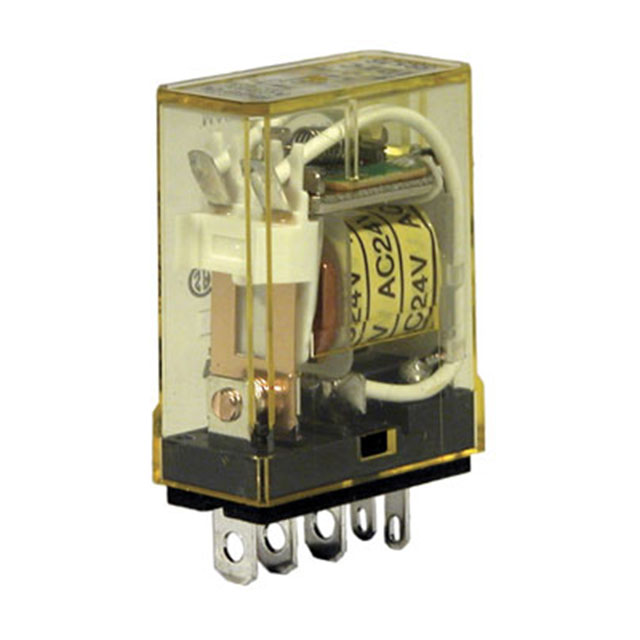

RH1B-U Series
Manufacturer: IDEC
Beta
⌘K
POWER RELAY, SPDT, 24 VAC, 10 A, RH SERIES, SOCKET, NON LATCHING
| Part | Coil Resistance | Termination Style | Termination Style | Approval Agency | Load - Max Switching | Contact Material | Coil Type | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage | Release Time | Mounting Type | Must Release Voltage | Switching Voltage | Contact Form | Contact Rating (Current) | Operate Time | Relay Type | Coil Current | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 83 Ohms | 0.187 in 4.7 mm | Plug In Quick Connect | CE CSA cURus TUV | 300 W 2400 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 19.2 VAC | -25 °C | 70 °C | 24 VAC | 20 ms | Socketable | 7.2 VAC | 30 VDC 240 VAC | SPDT (1 Form C) | 10 A | 20 ms | General Purpose | 37 mA | |
 IDEC | 0.187 in 4.7 mm | Plug In Quick Connect | CE CSA cURus TUV | 300 W 2400 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 38.4 VAC | -25 °C | 70 °C | 48 VAC | 20 ms | Socketable | 14.4 VAC | 30 VDC 240 VAC | SPDT (1 Form C) | 10 A | 20 ms | General Purpose | |||
 IDEC | 83 Ohms | 0.187 in 4.7 mm | Plug In Quick Connect | CE CSA cURus TUV | 300 W 2400 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 19.2 VAC | -25 °C | 70 °C | 24 VAC | 20 ms | Socketable | 7.2 VAC | 30 VDC 240 VAC | SPDT (1 Form C) | 10 A | 20 ms | General Purpose | 37 mA | Lighted Indicator Test Button |
IDEC | 750 Ohms | 0.187 in 4.7 mm | Plug In Quick Connect | CE CSA cURus TUV | 300 W 2400 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 19.2 VDC | -25 °C | 70 °C | 24 VDC | 20 ms | Socketable | 2.4 VDC | 30 VDC 240 VAC | SPDT (1 Form C) | 10 A | 20 ms | General Purpose | 32 mA | Lighted Indicator |
IDEC | 76.8 Ohms | 0.187 in 4.7 mm | Plug In Quick Connect | CE CSA cURus TUV | 300 W 2400 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 9.6 VAC/DC | -25 °C | 70 °C | 12 VAC | 20 ms | Socketable | 3.6 VAC | 30 VDC 240 VAC | SPDT (1 Form C) | 10 A | 20 ms | General Purpose | 0.075 A | Lighted Indicator Test Button |
IDEC | 750 Ohms | 0.187 in 4.7 mm | Plug In Quick Connect | CE CSA cURus TUV | 300 W 2400 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 19.2 VDC | -25 °C | 70 °C | 24 VDC | 20 ms | Socketable | 2.4 VDC | 30 VDC 240 VAC | SPDT (1 Form C) | 10 A | 20 ms | General Purpose | 32 mA | Diode |
IDEC | 47 Ohms | 0.187 in 4.7 mm | Plug In Quick Connect | CE CSA cURus TUV | 300 W 2400 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 9.6 VDC | -25 °C | 70 °C | 12 VDC | 20 ms | Socketable | 1.2 VDC | 30 VDC 240 VAC | SPDT (1 Form C) | 10 A | 20 ms | General Purpose | 64 mA | |
 IDEC | 16.5 Ohms | 0.187 in 4.7 mm | Plug In Quick Connect | CE CSA cURus TUV | 300 W 2400 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 96 VAC | -25 °C | 70 °C | 120 VAC | 20 ms | Socketable | 36 VAC | 30 VDC 240 VAC | SPDT (1 Form C) | 10 A | 20 ms | General Purpose | 7.5 mA | Lighted Indicator Test Button |
 IDEC | 188 Ohms | 0.187 in 4.7 mm | Plug In Quick Connect | CE CSA cURus TUV | 300 W 2400 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 9.6 VDC | -25 °C | 70 °C | 12 VDC | 20 ms | Socketable | 1.2 VDC | 30 VDC 240 VAC | SPDT (1 Form C) | 10 A | 20 ms | General Purpose | 64 mA | Diode |
IDEC | 47 Ohms | 0.187 in 4.7 mm | Plug In Quick Connect | CE CSA cURus TUV | 300 W 2400 VA | Silver Cadmium Oxide (AgCdO) | Non Latching | 9.6 VDC | -25 °C | 70 °C | 12 VDC | 20 ms | Socketable | 1.2 VDC | 30 VDC 240 VAC | SPDT (1 Form C) | 10 A | 20 ms | General Purpose | 64 mA | Lighted Indicator |
