SSL-LX3044 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED WHITE CLEAR T-1 T/H

Part	Millicandela Rating	Current - Test	Height (Max) [z]	Package / Case	Configuration	Lens Size	Lens Size	Lens Style	Lens Color	Mounting Type	Lens Transparency	Color	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Viewing Angle	Wavelength - Peak	Size / Dimension [diameter]	Wavelength - Peak	Current - Test [custom]	Current - Test [custom]
Lumex Opto/Components Inc. SSL-LX3044UWC	1700 mcd	20 mA	4.6 mm	Radial	Standard	3 mm	T-1	Round with Domed Top	Colorless	Through Hole	Clear	White	T-1	3.6 V	60 °
Lumex Opto/Components Inc. SSL-LX3044SOD	100 mcd	20 mA	4.6 mm	Radial	Standard	3 mm	T-1	Round with Domed Top	Orange	Through Hole	Diffused		T-1	2 V	60 °	610 nm

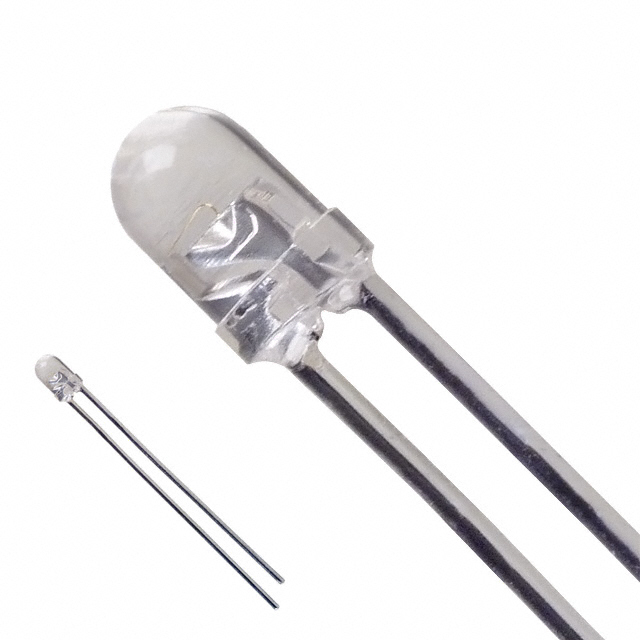

Lumex Opto/Components Inc. SSL-LX3044USBC	1000 mcd	20 mA	4.6 mm	Radial	Standard	3 mm	T-1	Round with Domed Top	Colorless	Through Hole	Clear	Blue	T-1	3.5 V	30 °	470 nm
Lumex Opto/Components Inc. SSL-LX3044SIC	1800 mcd	20 mA	4.6 mm	Radial	Independent	3 mm	T-1	Round with Domed Top	Colorless	Through Hole	Clear	Red	T-1 (3mm)	2.1 V	30 °	636 nm	2.9 mm
Lumex Opto/Components Inc. SSL-LX3044SGT	200 mcd	20 mA	4.6 mm	Radial	Standard	3 mm	T-1	Round with Domed Top	Green	Through Hole	Clear	Green	T-1	2.2 V	30 °	565 nm

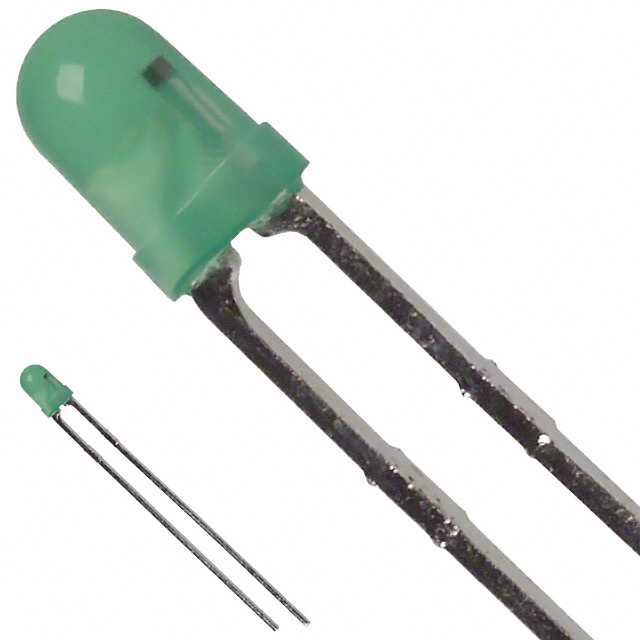

Lumex Opto/Components Inc. SSL-LX3044PGD	20 mcd	20 mA	4.6 mm	Radial	Standard	3 mm	T-1	Round with Domed Top	Green	Through Hole	Diffused	Green	T-1	2.2 V	60 °	555 nm
Lumex Opto/Components Inc. SSL-LX3044SID	100 mcd	20 mA	4.6 mm	Radial	Standard	3 mm	T-1	Round with Domed Top	Red	Through Hole	Diffused	Red	T-1	2.1 V	60 °	636 nm
Lumex Opto/Components Inc. SSL-LX3044SRSGW	30 mcd 60 mcd		4.6 mm	Radial	Common Cathode	3 mm	T-1	Round with Domed Top	White	Through Hole	Diffused	Green Red	T-1	1.7 V 2.2 V	60 °			565nm Green 660nm Red	20 mA	20 mA

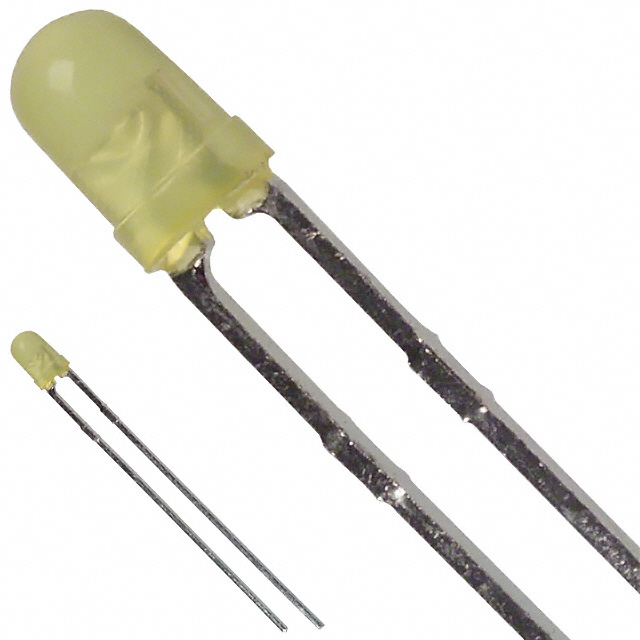

Lumex Opto/Components Inc. SSL-LX3044YD-5V	6 mcd		4.6 mm	Radial	Standard	3 mm	T-1	Round with Domed Top	Yellow	Through Hole	Diffused	Yellow	T-1	5 V	60 °	585 nm
Lumex Opto/Components Inc. SSL-LX3044SYD	100 mcd	20 mA	4.6 mm	Radial	Standard	3 mm	T-1	Round with Domed Top	Yellow	Through Hole	Diffused	Yellow	T-1	2.1 V	60 °	590 nm
