GBC09S Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

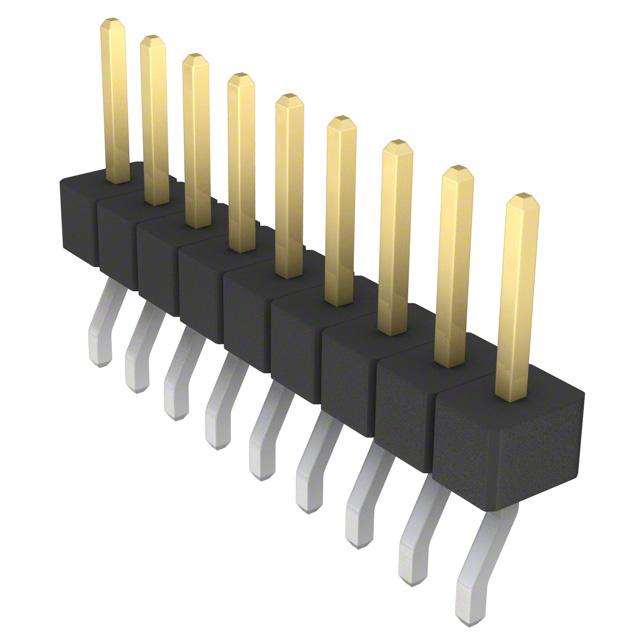

CONN HEADER SMD R/A 9POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Number of Positions Loaded | Style | Insulation Height | Insulation Height | Contact Shape | Number of Rows | Contact Length - Mating | Contact Length - Mating | Insulation Material | Number of Positions | Contact Finish - Mating | Insulation Color | Current Rating (Amps) | Shrouding | Termination | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Finish - Post | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 2.54 µm | 100 µin | Male Pin | All | Board to Board Cable | 3.56 mm | 0.14 in | Square | 1 | 0.23 in | 5.84 mm | Nylon 9T Polyamide (PA9T) | 9 | Gold | Black | 3 A | Unshrouded | Solder | 0.1 " | 2.54 mm | UL94 V-0 | Tin | Phosphor Bronze | 0.25 µm | 10 µin | Push-Pull | Header Breakaway | 150 °C | -65 ░C | Right Angle Surface Mount |
