PYBE20 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 15V 20W
| Part | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Features | Voltage - Output 1 | Package / Case | Standard Number | Type | Voltage - Isolation | Applications | Approval Agency | Efficiency | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Power (Watts) | Input Type | DC Voltage - Input (Max) [Max] | DC Voltage - Input (Min) [Min] | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

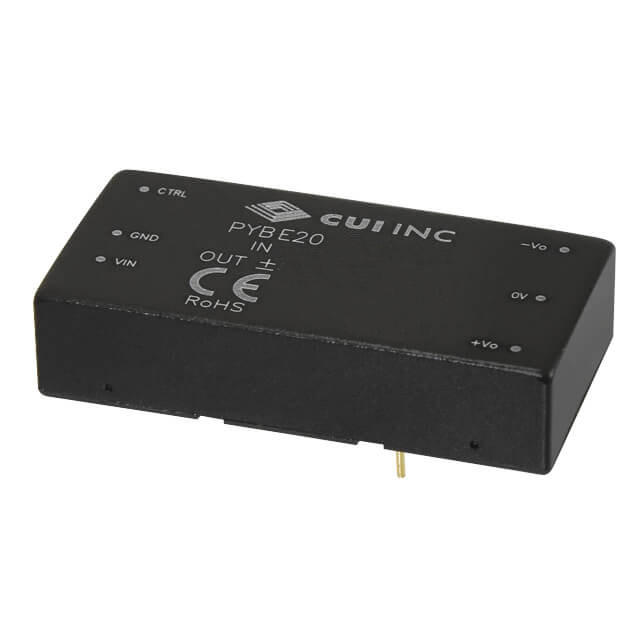

 CUI Inc. | Through Hole | 75 V | 18 V | 1 | OCP OVP Remote On/Off SCP | 15 V | 6-DIP Module | 55024 55032 Class A 60950-1 | Isolated Module | 1.5 kV | ITE (Commercial) | CB Scheme EN IEC UL | 90 % | 1.333 A | -40 °C | 85 °C | 2 in | 1 " | 50.8 mm | 25.4 mm | 0.46 in | 11.8 mm | 20 W | ||||||
CUI Inc. | Through Hole | 36 V | 9 V | 1 | OCP OVP Remote On/Off SCP | 24 V | 6-DIP Module | 55024 55032 Class A 60950-1 | Isolated Module | 1.5 kV | ITE (Commercial) | CB Scheme EN IEC UL | 90 % | 834 mA | -40 °C | 85 °C | 2 in | 1 " | 50.8 mm | 25.4 mm | 0.46 in | 11.8 mm | 20 W | ||||||

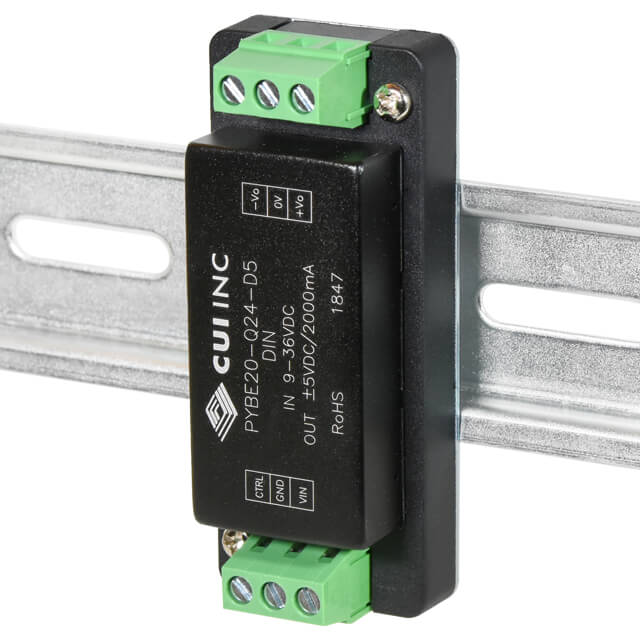

 CUI Inc. | 1 | Adjustable Output Remote On/Off | 24 V | 1.5 kV | ITE (Commercial) | CE cURus | 88 % | 834 mA | -40 °C | 85 °C | 2.99 in | 1.24 in | 76 mm | 31.5 mm | 0.87 in | 22.2 mm | 20 W | DC | 75 V | 18 V | |||||||||

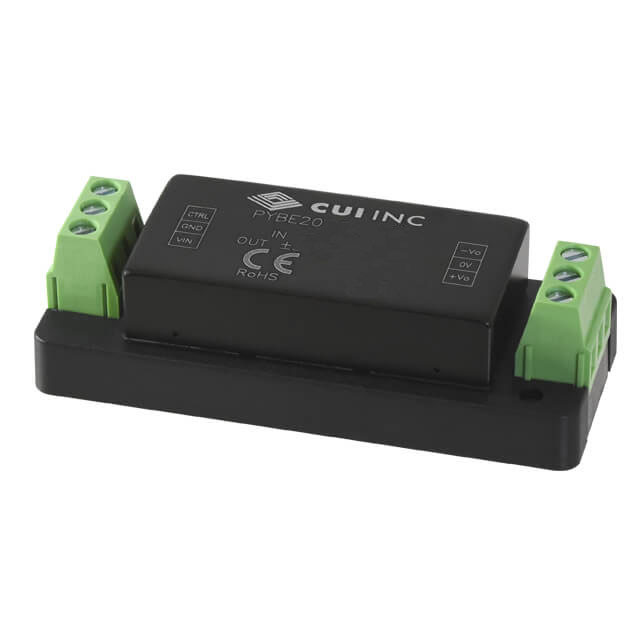

 CUI Inc. | Chassis Mount | 36 V | 9 V | 1 | 15 V | 55024 55032 | Enclosed | 1.5 kV | ITE (Commercial) | EN | 90 % | 1.333 A | -40 °C | 85 °C | 2.99 in | 1.24 in | 76 mm | 31.5 mm | 0.83 " | 21.2 mm | 20 W | ||||||||
CUI Inc. | 1 | Adjustable Output Remote On/Off | 9 V | 1.5 kV | ITE (Commercial) | CE cURus | 89 % | 2.222 A | -40 °C | 85 °C | 2.99 in | 1.24 in | 76 mm | 31.5 mm | 0.87 in | 22.2 mm | 20 W | DC | 75 V | 18 V | |||||||||
CUI Inc. | Through Hole | 36 V | 9 V | 1 | OCP OVP Remote On/Off SCP | 3.3 V | 6-DIP Module | 55024 55032 Class A 60950-1 | Isolated Module | 1.5 kV | ITE (Commercial) | CB Scheme EN IEC UL | 86 % | -40 °C | 85 °C | 2 in | 1 " | 50.8 mm | 25.4 mm | 0.46 in | 11.8 mm | 17 W | 5 A | ||||||
CUI Inc. | Through Hole | 36 V | 9 V | 2 | OCP OVP Remote On/Off SCP | 5 V | 6-DIP Module | 55024 55032 Class A 60950-1 | Isolated Module | 1.5 kV | ITE (Commercial) | CB Scheme EN IEC UL | 86 % | 2 A | -40 °C | 85 °C | 2 in | 1 " | 50.8 mm | 25.4 mm | 0.46 in | 11.8 mm | 20 W | -5 V | |||||
CUI Inc. | 1 | Adjustable Output Remote On/Off | 24 V | 1.5 kV | ITE (Commercial) | CE cURus | 90 % | 834 mA | -40 °C | 85 °C | 2.99 in | 1.24 in | 76 mm | 31.5 mm | 0.87 in | 22.2 mm | 20 W | DC | 36 V | 9 V | |||||||||
CUI Inc. | Chassis Mount | 75 V | 18 V | 2 | 12 V | 55024 55032 | Enclosed | 1.5 kV | ITE (Commercial) | EN | 88 % | -40 °C | 85 °C | 2.99 in | 1.24 in | 76 mm | 31.5 mm | 0.83 " | 21.2 mm | 20 W | 834 mA | -12 V | 834 mA | ||||||
CUI Inc. | 1 | Adjustable Output Remote On/Off | 3.3 V | 1.5 kV | ITE (Commercial) | CE cURus | 86 % | -40 °C | 85 °C | 2.99 in | 1.24 in | 76 mm | 31.5 mm | 0.87 in | 22.2 mm | 17 W | DC | 75 V | 18 V | 5 A |
