316-012 Series
Manufacturer: EDAC Inc.
Beta
⌘K

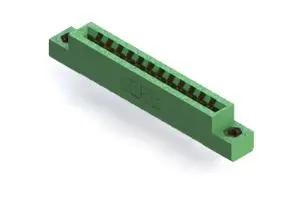

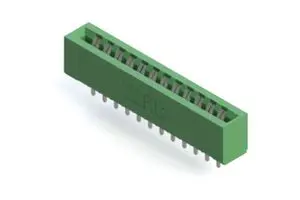

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Read Out | Termination | Number of Positions/Bay/Row | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Gender | Number of Rows [custom] | Card Type | Contact Material | Color | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 24 | Dual | Solder | 12 | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | Female | 2 | Non Specified - Dual Edge | Copper Alloy | Green | Panel Mount Through Hole | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | -40 C | 105 ░C | Cantilever | |
EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 24 | Dual | Solder | 12 | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | Female | 2 | Non Specified - Dual Edge | Copper Alloy | Green | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Cantilever | Card Guides | ||
EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 24 | Dual | Solder Eyelet(s) | 12 | 3.96 mm | 0.156 in | Tin | Female | 2 | Non Specified - Dual Edge | Copper Alloy | Green | Panel Mount | Flush Mount M3 Threaded Insert Top Opening | -40 C | 105 ░C | Cantilever | |||||
EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 24 | Dual | Solder Eyelet(s) | 12 | 3.96 mm | 0.156 in | Tin | Female | 2 | Non Specified - Dual Edge | Copper Alloy | Green | Panel Mount | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | -40 C | 105 ░C | Cantilever | |||
EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 24 | Dual | Solder | 12 | 3.96 mm | 0.156 in | Tin | Female | 2 | Non Specified - Dual Edge | Copper Alloy | Green | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Cantilever | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 24 | Dual | Solder | 12 | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | Female | 2 | Non Specified - Dual Edge | Copper Alloy | Green | Panel Mount Through Hole | Flush Mount M3 Threaded Insert Top Opening | -40 C | 105 ░C | Cantilever | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 24 | Dual | Solder | 12 | 3.96 mm | 0.156 in | Tin | Female | 2 | Non Specified - Dual Edge | Copper Alloy | Green | Through Hole | -40 C | 105 ░C | Cantilever | ||||||
EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 24 | Dual | Solder Eyelet(s) | 12 | 3.96 mm | 0.156 in | Tin | Female | 2 | Non Specified - Dual Edge | Copper Alloy | Green | Panel Mount | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | -40 C | 105 ░C | Cantilever | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 24 | Dual | Solder | 12 | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | Female | 2 | Non Specified - Dual Edge | Copper Alloy | Green | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Cantilever | Card Guides | ||
EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 24 | Dual | Solder | 12 | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | Female | 2 | Non Specified - Dual Edge | Copper Alloy | Green | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Cantilever |
