19039 Series

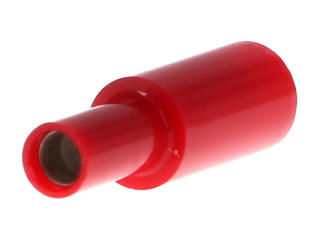

Avikrimp Snap Receptacle, for 22-18 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm, Mylar Tape Carrier
Manufacturer: Molex
Catalog
Avikrimp Snap Receptacle, for 22-18 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm, Mylar Tape Carrier
Avikrimp Snap Receptacle, for 22-18 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm, Mylar Tape Carrier
Avikrimp Snap Receptacle, for 22-18 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm, Mylar Tape Carrier
Avikrimp Snap Receptacle, for 22-18 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm, Mylar Tape Carrier
| Part | Terminal Type | Material - Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Color | Contact Finish | Termination | Contact Material | Length - Barrel [x] | Length - Barrel [x] | Length - Overall | Length - Overall | Diameter - Barrel [diameter] | Diameter - Barrel [diameter] | Insulation | Insulation Diameter [diameter] | Insulation Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Female Receptacle (Socket) | Poly-Vinyl Chloride (PVC) | 22 AWG | 17.5 AWG | Red | Tin | Crimp | Brass | 0.426 " | 10.82 mm | 25.78 mm | 1.015 in | 3.96 mm | 0.156 in | Fully Insulated | 0.125 in | 3.18 mm |
