BZV04/Z Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

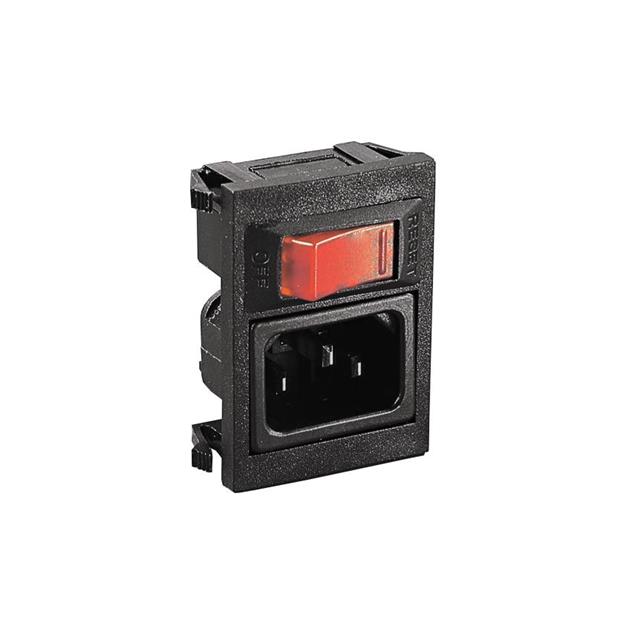

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Connector Style | Accomodates a Fuse | Material Flammability Rating | Connector Type | Termination | Termination | Termination | Filter Type | Approval Agency | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Fuse Holder, Drawer | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Voltage Rating - Appliance Inlet | Mounting Type | Current Rating - Appliance Inlet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | IEC 320-C14 | UL94 V-0 | Receptacle Male Blades - Module | Quick Connect | 2.8 mm | 0.11 " | Unfiltered - Commercial | CSA ENEC UL VDE | 34.4 mm | 48.4 mm | Twin Fused | 0.118 in | 3 mm | 1 mm | 0.039 in | 250 VAC | Panel Mount Snap-In | 10 A |
