9942 Series
Manufacturer: Belden Inc.
Beta
⌘K

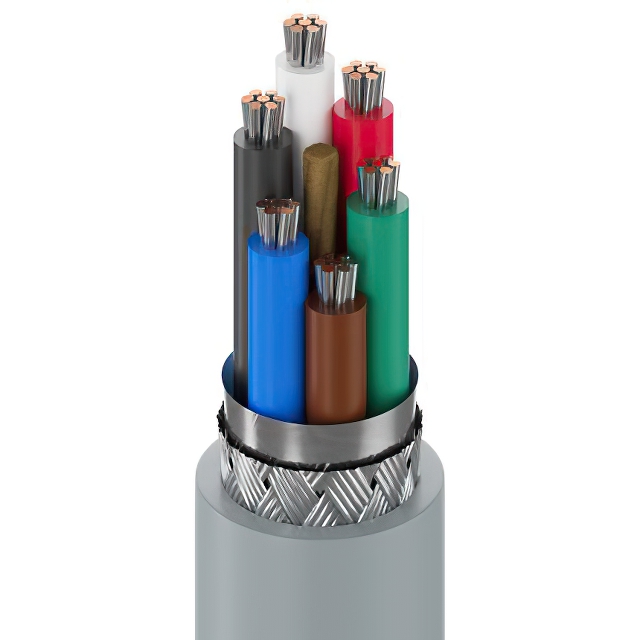

CABLE 6CON 22AWG CHROME SHLD
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Jacket Color | Length | Length | Number of Conductors | Cable Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Ratings | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 30 AWG | 7 | 22 AWG | Copper Tinned | 0.245 " | 6.22 mm | Braid Foil | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | Chrome | 152.4 m | 500 ft | 6 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | Computer | ||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 30 AWG | 7 | 22 AWG | Copper Tinned | 0.245 " | 6.22 mm | Braid Foil | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | Chrome | 6 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | Computer | UL Style 2464 | 300 VDC | ||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 30 AWG | 7 | 22 AWG | Copper Tinned | 0.245 " | 6.22 mm | Braid Foil | 80 °C | -30 ░C | Poly-Vinyl Chloride (PVC) | Chrome | 304.8 m | 1000 ft | 6 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | Computer | UL Style 2464 | 300 VDC |
