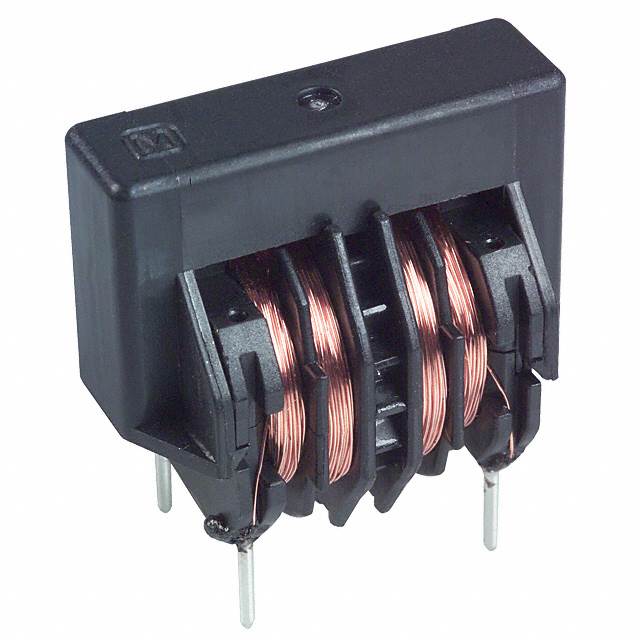

ELF-15 Series

Catalog

CMC 3A 2LN TH

Part	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Mounting Type	Current Rating (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Number of Lines	DC Resistance (DCR) (Max) [Max]	DC Resistance (DCR) (Max)
Panasonic Industrial Automation Sales ELF-15N030A	0.886 in	22.5 mm	Through Hole	3 A	0.894 in	0.591 in	22.7 mm	15 mm	4 Lead	Vertical	2	52 mOhm
Panasonic Industrial Automation Sales ELF-15N005A	0.886 in	22.5 mm	Through Hole	500 mA	0.894 in	0.591 in	22.7 mm	15 mm	4 Lead	Vertical	2		1.324 Ohm
Panasonic Industrial Automation Sales ELF-15N002A	0.886 in	22.5 mm	Through Hole	200 mA	0.894 in	0.591 in	22.7 mm	15 mm	4 Lead	Vertical	2		7.543 Ohm
Panasonic Industrial Automation Sales ELF-15N008A	0.886 in	22.5 mm	Through Hole	800 mA	0.894 in	0.591 in	22.7 mm	15 mm	4 Lead	Vertical	2		548 mOhm
Panasonic Industrial Automation Sales ELF-15N022A	0.886 in	22.5 mm	Through Hole	2.2 A	0.894 in	0.591 in	22.7 mm	15 mm	4 Lead	Vertical	2		78 mOhm
