1376113 Series

Catalog

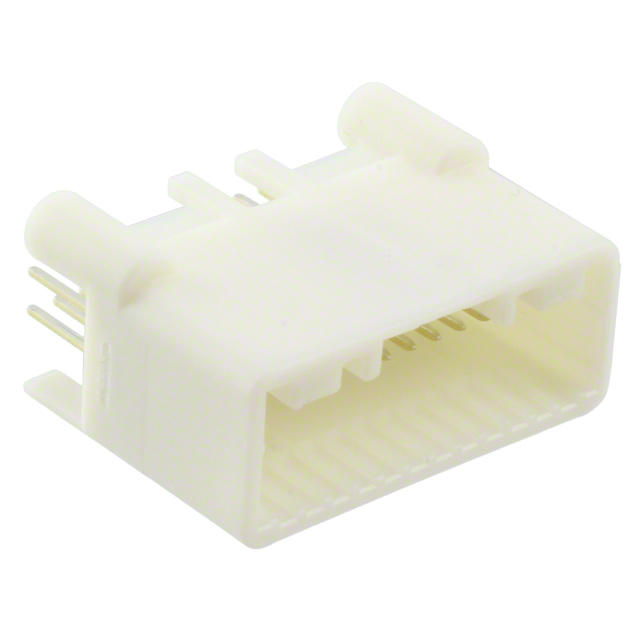

CONN HEADER VERT 40POS 2.2MM

Part	Applications	Insulation Color	Pitch - Mating	Pitch - Mating	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post	Termination	Insulation Height [z]	Insulation Height [z]	Features	Voltage Rating	Fastening Type	Contact Type	Number of Positions	Mounting Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Style
TE Connectivity AMP Connectors 1376113-5	Automotive	Natural	0.087 in	2.2 mm	Shrouded - 4 Wall	-30 ░C	105 ░C	2	Square	0.118 in	3 mm	All	0.157 in	4 mm	Solder	23.39 mm	0.921 in	Mounting Flange	12 VDC	Latch Holder	Male Pin	40	Through Hole	Header	0.217 in	5.5 mm	Brass	Board to Cable/Wire
TE Connectivity AMP Connectors 1-1376113-3
