767057 Series

Catalog

CONN PLUG 114P SMD PALLAD-NICKEL

Part	Number of Positions	Mated Stacking Heights	Mounting Type	Number of Rows [custom]	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch	Pitch
TE Connectivity AMP Connectors 767057-3	114	12.57 mm 21.6 mm	Surface Mount	2	Board Guide Ground Bus (Plane)	Plug Outer Shroud Contacts	5 µin	0.127 µm	Palladium-Nickel	0.64 mm	0.025 in
TE Connectivity AMP Connectors 767057-1	38	12.57 mm 21.6 mm	Surface Mount	2	Board Guide Ground Bus (Plane)	Plug Outer Shroud Contacts	5 µin	0.127 µm	Palladium-Nickel	0.64 mm	0.025 in

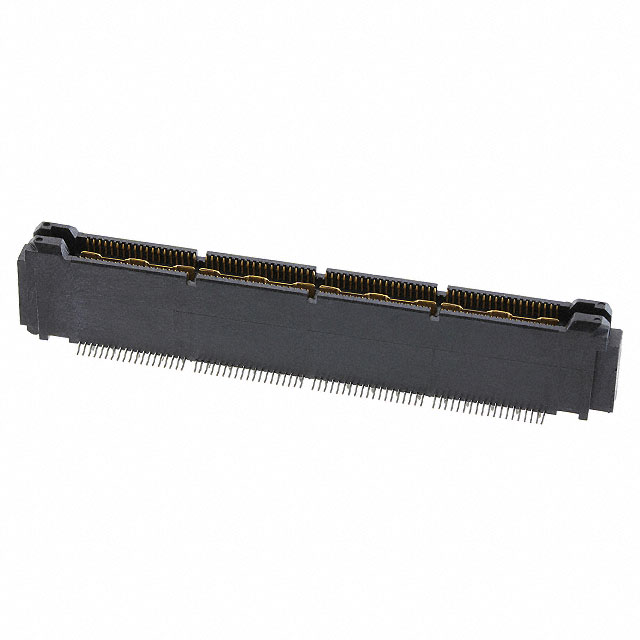

TE Connectivity AMP Connectors 767057-4	152	12.57 mm 21.6 mm	Surface Mount	2	Board Guide Ground Bus (Plane)	Plug Outer Shroud Contacts	5 µin	0.127 µm	Palladium-Nickel	0.64 mm	0.025 in

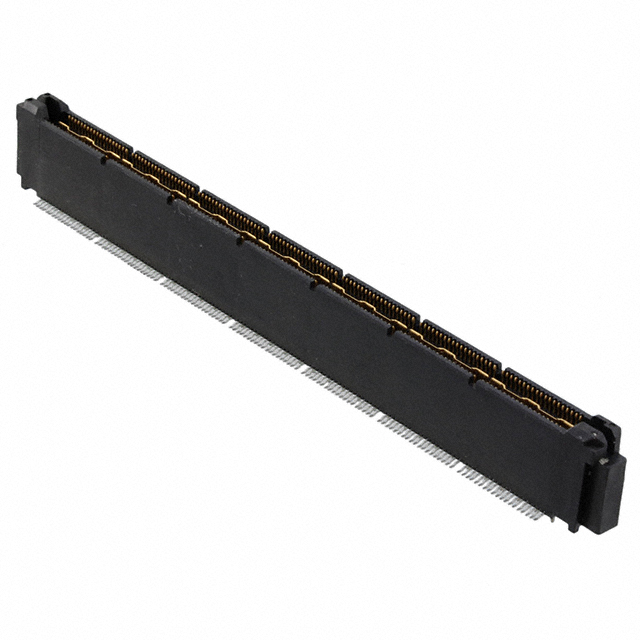

TE Connectivity AMP Connectors 767057-7	266	12.57 mm 21.6 mm	Surface Mount	2	Board Guide Ground Bus (Plane)	Plug Outer Shroud Contacts	5 µin	0.127 µm	Palladium-Nickel	0.64 mm	0.025 in
