95C06B Series

Catalog

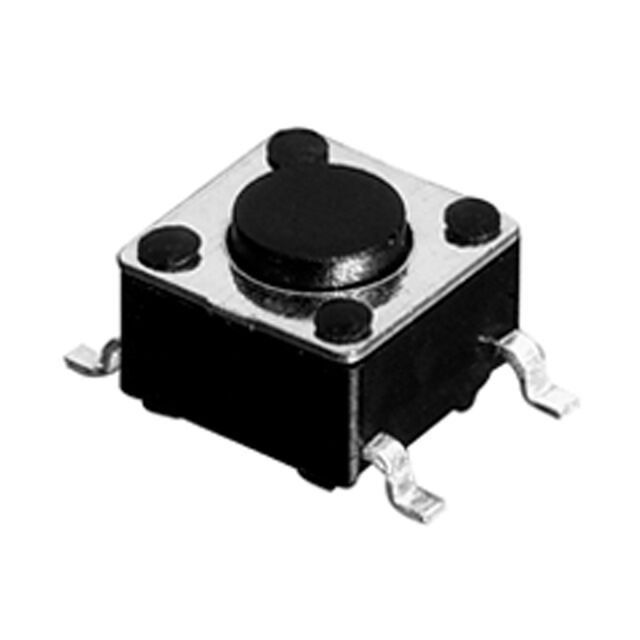

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Actuator Material	Features	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Outline [x]	Outline [y]	Mounting Type	Illumination	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Circuit	Operating Force	Contact Rating @ Voltage
Grayhill Inc. 95C06B6GWT	300000 Cycles	0.25 mm	Polyamide (PA) Nylon	Tactile Feedback	Off-Mom	-25 °C	70 °C	Gull Wing	Standard	6.2 mm	6.2 mm	Surface Mount	Non-Illuminated	Top Actuated	5 mm	SPST-NO	520 gf	0.05 A 12 VDC
Grayhill Inc. 95C06B5GWT	300000 Cycles	0.25 mm	Polyamide (PA) Nylon	Tactile Feedback	Off-Mom	-25 °C	70 °C	Gull Wing	Standard	6.2 mm	6.2 mm	Surface Mount	Non-Illuminated	Top Actuated	5 mm	SPST-NO	320 gf	0.05 A 12 VDC
Grayhill Inc. 95C06B6T	300000 Cycles	0.25 mm	Polyamide (PA) Nylon	Tactile Feedback	Off-Mom	-25 °C	70 °C	PC Pin	Standard	6.2 mm	6.2 mm	Through Hole	Non-Illuminated	Top Actuated	5 mm	SPST-NO	520 gf	0.05 A 12 VDC
Grayhill Inc. 95C06B4T	500000 Cycles	0.25 mm	Polyamide (PA) Nylon	Tactile Feedback	Off-Mom	-25 °C	70 °C	PC Pin	Standard	6.2 mm	6.2 mm	Through Hole	Non-Illuminated	Top Actuated	5 mm	SPST-NO	260 gf	0.05 A 12 VDC
