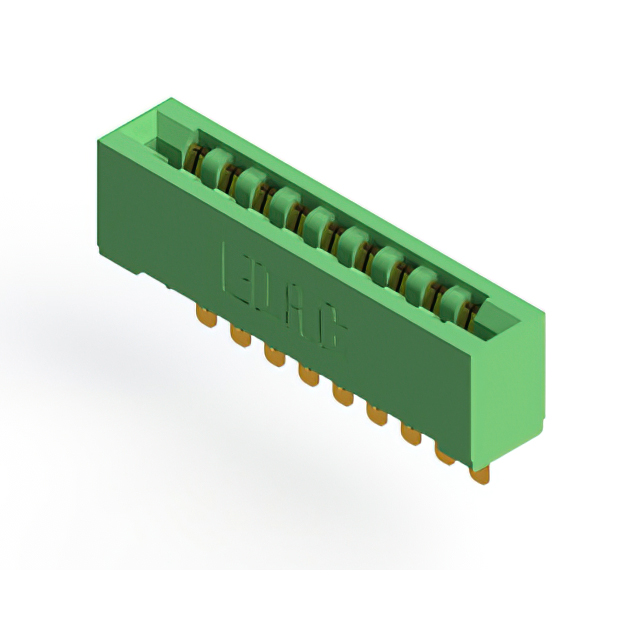

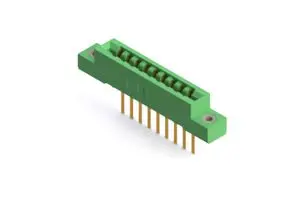

307-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 9POS 0.156
| Part | Termination Rows | Material - Insulation | Pitch | Pitch | Mounting Type | Read Out | Termination | Gender | Card Type | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Finish | Number of Positions | Number of Rows | Contact Type | Color | Flange Feature | Number of Rows [custom] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

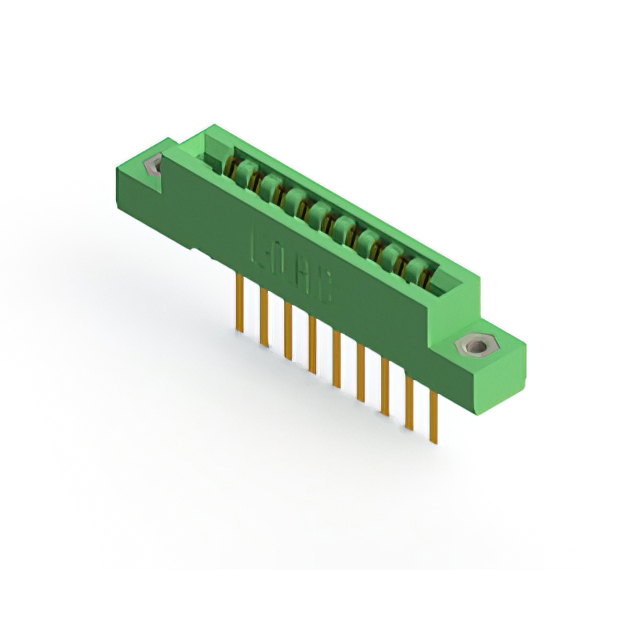

 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Through Hole | Single | Solder Eyelet(s) | Female | Non Specified - Single Edge | 9 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Gold | 9 | 1 | Semi Bellows | Green | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Right Angle Through Hole | Dual | Solder | Female | Non Specified - Dual Edge | 9 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Gold | 18 | Semi Bellows | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Card Guides | |||

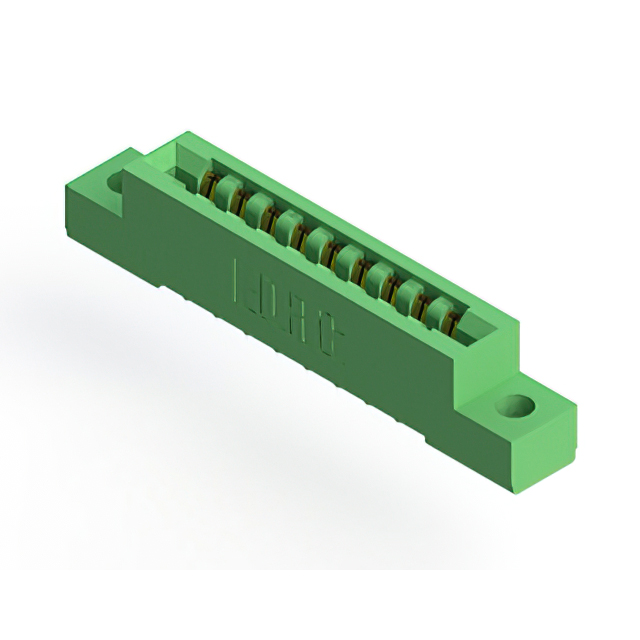

 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Through Hole | Single | Solder | Female | Non Specified - Single Edge | 9 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Gold | 9 | 1 | Semi Bellows | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Through Hole | Single | Solder | Female | Non Specified - Single Edge | 9 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Gold | 9 | 1 | Semi Bellows | Green | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Through Hole | Dual | Wire Wrap | Female | Non Specified - Dual Edge | 9 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Gold | 18 | Semi Bellows | Green | Flush Mount Top Opening Unthreaded | 2 | 3.96 mm | 0.156 " | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Through Hole | Single | Wire Wrap | Female | Non Specified - Single Edge | 9 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Gold | 9 | 1 | Semi Bellows | Green | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Surface Mount | Dual | Solder Eyelet(s) | Female | Non Specified - Dual Edge | 9 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Gold | 18 | Semi Bellows | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Card Guides | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Through Hole | Single | Solder | Female | Non Specified - Single Edge | 9 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Gold | 9 | 1 | Semi Bellows | Green | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Through Hole | Dual | Wire Wrap | Female | Non Specified - Dual Edge | 9 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Gold | 18 | Semi Bellows | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Through Hole | Single | Wire Wrap | Female | Non Specified - Single Edge | 9 | -40 C | 105 ░C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Gold | 9 | 1 | Semi Bellows | Green | Flush Mount M3 Threaded Insert Top Opening |
