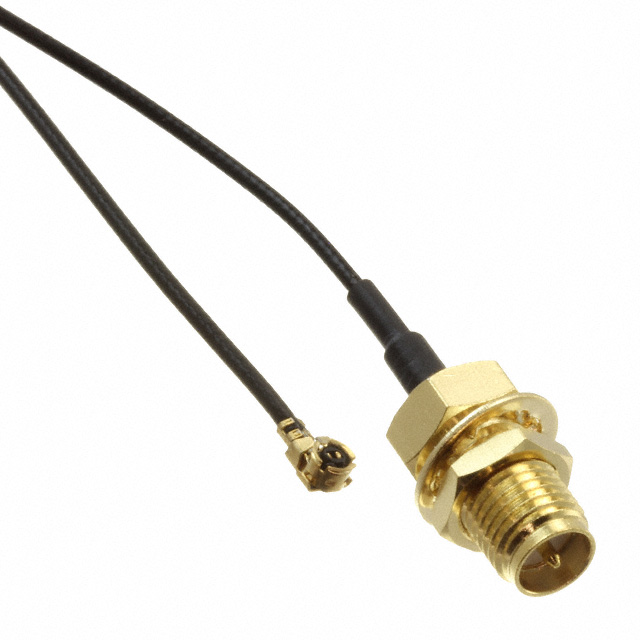

CBL ASSY U.FL-RPSMA JACK-PLUG 3"

Part	Length	Length	1st Connector	1st Contact Gender	2nd Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Cable Type	Cable Type [diameter]	2nd Connector	1st Connector Mounting Feature	2nd Contact Gender	1st Connector Mounting Type	Style	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Power - Max [Max]	Frequency (Center/Band)	Mounting Type	Height (Max) [Max] [z]	Height (Max) [z]	Gain	Number of Bands	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Return Loss	Fastening Type	Cable Group	Frequency - Max [Max]	Impedance	Contact Termination	Number of Ports	Connector Type	Shield Termination	Housing Color	Connector Style	Height (Max) [diameter]	Height (Max) [Max] [diameter]	Convert To (Adapter End)	Adapter Series	Convert From (Adapter End)	Fastening Type	Center Gender	Adapter Type	Conversion Type	Cable Group
Pulse Electronics W9003	3 in	76.2 mm	RP-SMA Jack	Male	Free Hanging (In-Line)	85 °C	-40 C	Black	Coaxial Cable	1.13 mm	U.FL (UMCC) Plug Right Angle	Bulkhead - Front Side Nut	Female	Panel Mount	U.FL (UMCC) to RP-SMA
Pulse Electronics Q900B																Whip Straight	960 MHz	890 MHz	200 W	925 MHz	Magnetic	3.5 in	88.9 mm	2 dBi	1	1 GHz	UHF	300 MHz	-10 dB
Pulse Electronics W9009	9 in	228.6 mm	RP-SMA Jack	Male	Free Hanging (In-Line)	85 °C	-40 C	Black	Coaxial Cable	1.13 mm	U.FL (UMCC) Plug Right Angle	Bulkhead - Front Side Nut	Female	Panel Mount	U.FL (UMCC) to RP-SMA

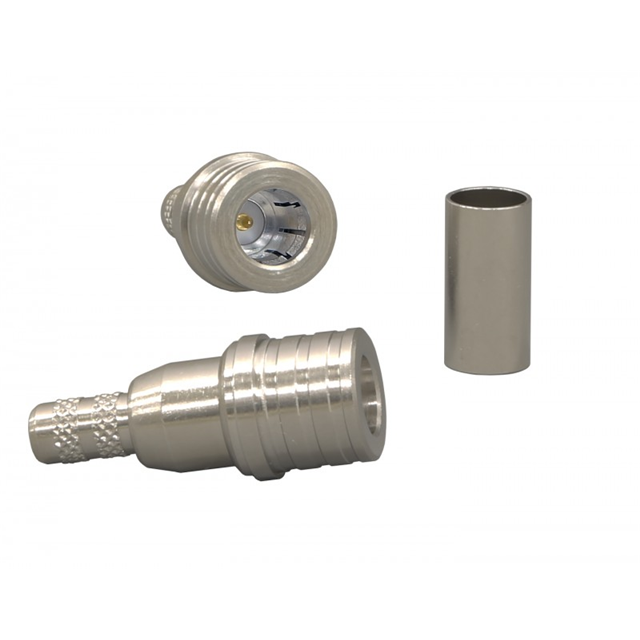

Pulse Electronics QMACRIMP1																					Free Hanging (In-Line)									Snap-On	RG-58	6000 MHz	50 Ohms	Crimp	1	Plug Male Pin	Crimp	Silver
Pulse Electronics TNCCRIMP																					Free Hanging (In-Line)									Threaded	RG-58			Crimp	1	Plug Male Pin	Crimp		TNC
Pulse Electronics QB																Whip Straight	512 MHz	136 MHz	200 W	324 MHz	Magnetic			2 dBi	1	1 GHz	UHF	300 MHz	-10 dB											558.8 mm	22 in
Pulse Electronics BNC174																					Free Hanging (In-Line)									Bayonet Lock	RG-174			Crimp	1	Plug Male Pin	Crimp		BNC
Pulse Electronics FB															Straight						Free Hanging (In-Line)									Bayonet Lock												FME Plug Male Pin	BNC to FME	BNC Plug Male Pin	Threaded	Male to Male	Plug to Plug	Between Series

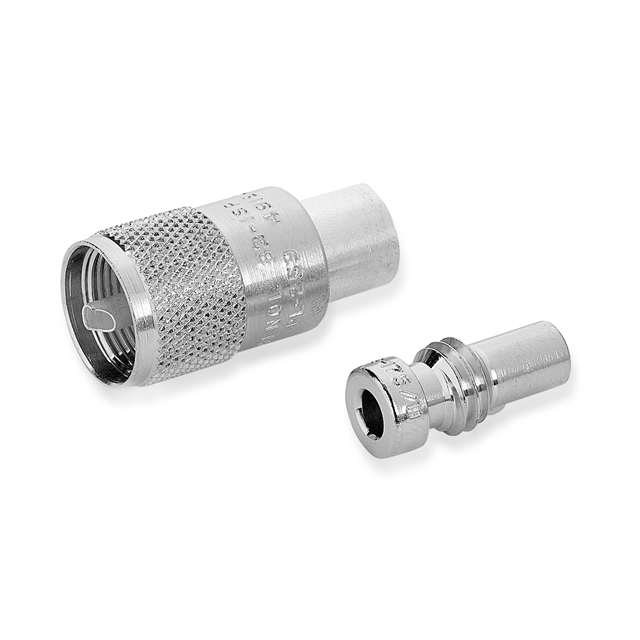

Pulse Electronics PL259																					Free Hanging (In-Line)									Threaded	RG-8			Solder	1	Plug Male Pin	Solder	Silver	UHF										58
Pulse Electronics SMACP58																					Free Hanging (In-Line)									Threaded	RG-58			Crimp	1	Plug Male Pin	Crimp		SMA
