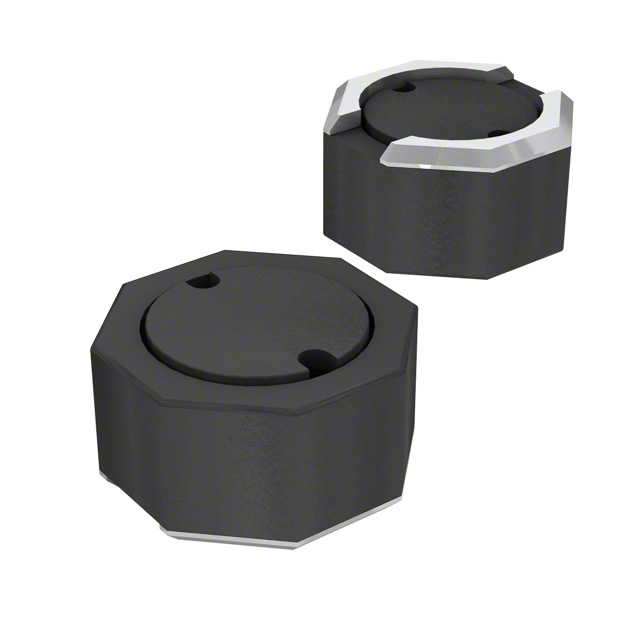

SRU2016 Series

Catalog

IND2.8X2.8X1.65MM,4.7UH30%1.15A,SHDSMD /TAPE & REEL - 7" REEL

Part	DC Resistance (DCR) [Max]	Inductance	Type	Shielding	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Amps)	Inductance Frequency - Test	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq	Material - Core	Mounting Type	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRU2016-4R7Y	215 mOhm	4.7 ÁH	Drum Core Wirewound	Shielded	0.11 in	2.8 mm	2.8 mm	0.11 "	1.15 A	100 kHz	740 mA	80 MHz	125 °C	-40 C	7.96 MHz 8	Ferrite	Surface Mount	30 %	1.8 mm	0.071 in	Nonstandard
Bourns Inc. SRU2016-101Y		100 µH	Drum Core Wirewound	Shielded	0.11 in	2.8 mm	2.8 mm	0.11 "	190 mA	100 kHz	150 mA	10 MHz	125 °C	-40 C	2.52 MHz 8	Ferrite	Surface Mount	30 %	1.8 mm	0.071 in	Nonstandard	4.9 Ohm
Bourns Inc. SRU2016-100Y	430 mOhm	10 µH	Drum Core Wirewound	Shielded	0.11 in	2.8 mm	2.8 mm	0.11 "	0.87 A	100 kHz	520 mA	45 MHz	125 °C	-40 C		Ferrite	Surface Mount	30 %	1.8 mm	0.071 in	Nonstandard		2.52 MHz	9
Bourns Inc. SRU2016-470Y	1.65 Ohm	47 µH	Drum Core Wirewound	Shielded	0.11 in	2.8 mm	2.8 mm	0.11 "	0.31 A	100 kHz	220 mA	20 MHz	125 °C	-40 C	2.52 MHz 15	Ferrite	Surface Mount	30 %	1.8 mm	0.071 in	Nonstandard
Bourns Inc. SRU2016-3R0Y	135 mOhm	3 ÁH	Drum Core Wirewound	Shielded	0.11 in	2.8 mm	2.8 mm	0.11 "	1.5 A	100 kHz	870 mA	90 MHz	125 °C	-40 C	7.96 MHz 8	Ferrite	Surface Mount	30 %	1.8 mm	0.071 in	Nonstandard
Bourns Inc. SRU2016-2R2Y		2.2 µH	Drum Core Wirewound	Shielded	0.11 in	2.8 mm	2.8 mm	0.11 "	1.6 A	100 kHz	1 A	120 MHz	125 °C	-40 C	7.96 MHz 8	Ferrite	Surface Mount	30 %	1.8 mm	0.071 in	Nonstandard	105 mOhm
Bourns Inc. SRU2016-6R0Y	250 mOhm	6 ÁH	Drum Core Wirewound	Shielded	0.11 in	2.8 mm	2.8 mm	0.11 "	900 mA	100 kHz	630 mA		125 °C	-40 C		Ferrite	Surface Mount	30 %	1.8 mm	0.071 in	Nonstandard		7.96 MHz	9
Bourns Inc. SRU2016-330Y	1.47 Ohm	33 µH	Drum Core Wirewound	Shielded	0.11 in	2.8 mm	2.8 mm	0.11 "	410 mA	100 kHz	290 mA	20 MHz	125 °C	-40 C		Ferrite	Surface Mount	30 %	1.8 mm	0.071 in	Nonstandard			12	2.52 MHz
