087264 Series

Manufacturer: Molex

Catalog

CONN RCPT 32P 0.079 GOLD PCB R/A

Part	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height [custom]	Insulation Height [custom]	Applications	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Termination	Style	Number of Positions Loaded	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Contact Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Insulation Color	Contact Shape	Connector Type	Number of Positions
Molex 0872643250	0.079 in	2 mm	0.157 in	4 mm	Automotive General Purpose Telecommunications	125 VAC	15 µin	0.38 µm	2	Solder	Board to Board Cable	All	Push-Pull	2.54 µm	100 µin	Tin-Lead	Female Socket	Gold	2.54 mm	0.1 in	105 ░C	-55 °C	0.079 in	2 mm	Through Hole Right Angle	Black	Square	Receptacle

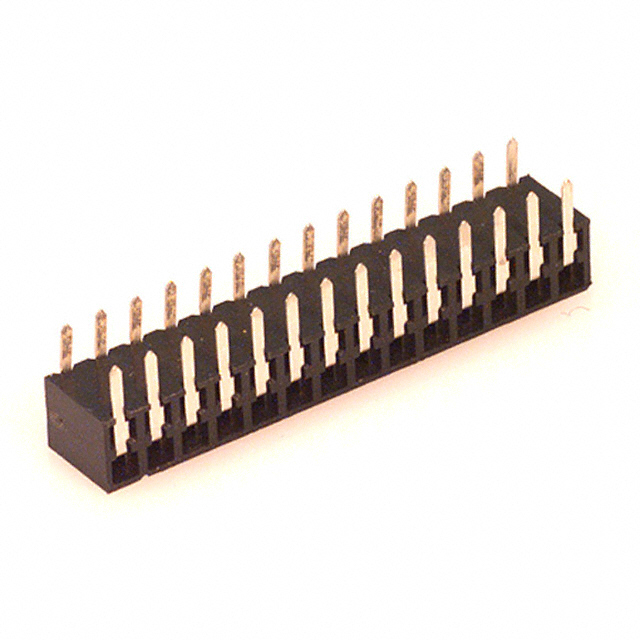

Molex 0872642850	0.079 in	2 mm	0.157 in	4 mm	Automotive General Purpose Telecommunications	125 VAC	15 µin	0.38 µm	2	Solder	Board to Board Cable	All	Push-Pull	2.54 µm	100 µin	Tin-Lead	Female Socket	Gold	2.54 mm	0.1 in	105 ░C	-55 °C	0.079 in	2 mm	Through Hole Right Angle	Black	Square	Receptacle	28
Molex 0872644052	0.079 in	2 mm	0.157 in	4 mm	Automotive General Purpose Telecommunications	125 VAC	15 µin	0.38 µm	2	Solder	Board to Board Cable	All	Push-Pull	2.54 µm	100 µin	Tin	Female Socket	Gold	2.54 mm	0.1 in	105 ░C	-55 °C	0.079 in	2 mm	Through Hole Right Angle	Black	Square	Receptacle	40
Molex 0872643053	0.079 in	2 mm	0.157 in	4 mm	Automotive General Purpose Telecommunications	125 VAC	30 Áin	0.76 Ám	2	Solder	Board to Board Cable	All	Push-Pull	2.54 µm	100 µin	Tin	Female Socket	Gold	2.54 mm	0.1 in	105 ░C	-55 °C	0.079 in	2 mm	Through Hole Right Angle	Black	Square	Receptacle	30

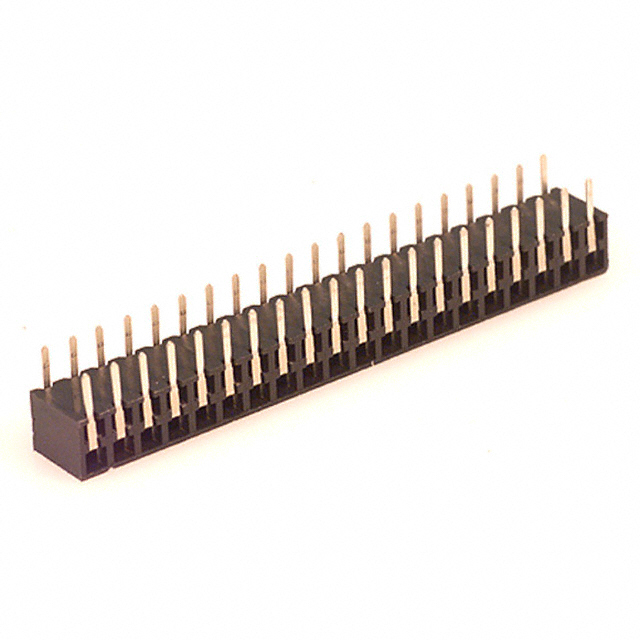

Molex 0872644050	0.079 in	2 mm	0.157 in	4 mm	Automotive General Purpose Telecommunications	125 VAC	15 µin	0.38 µm	2	Solder	Board to Board Cable	All	Push-Pull	2.54 µm	100 µin	Tin-Lead	Female Socket	Gold	2.54 mm	0.1 in	105 ░C	-55 °C	0.079 in	2 mm	Through Hole Right Angle	Black	Square	Receptacle	40
Molex 0872640858	0.079 in	2 mm	0.157 in	4 mm	Automotive General Purpose Telecommunications	125 VAC	15 µin	0.38 µm	2	Solder	Board to Board Cable	All	Push-Pull	2.54 µm	100 µin	Tin	Female Socket	Gold	2.54 mm	0.1 in	105 ░C	-55 °C	0.079 in	2 mm	Through Hole Right Angle	Black	Square	Receptacle	8
Molex 0872644453	0.079 in	2 mm	0.157 in	4 mm	Automotive General Purpose Telecommunications	125 VAC	30 Áin	0.76 Ám	2	Solder	Board to Board Cable	All	Push-Pull	2.54 µm	100 µin	Tin	Female Socket	Gold	2.54 mm	0.1 in	105 ░C	-55 °C	0.079 in	2 mm	Through Hole Right Angle	Black	Square	Receptacle	44
Molex 0872644850	0.079 in	2 mm	0.157 in	4 mm	Automotive General Purpose Telecommunications	125 VAC	15 µin	0.38 µm	2	Solder	Board to Board Cable	All	Push-Pull	2.54 µm	100 µin	Tin-Lead	Female Socket	Gold	2.54 mm	0.1 in	105 ░C	-55 °C	0.079 in	2 mm	Through Hole Right Angle	Black	Square	Receptacle	48

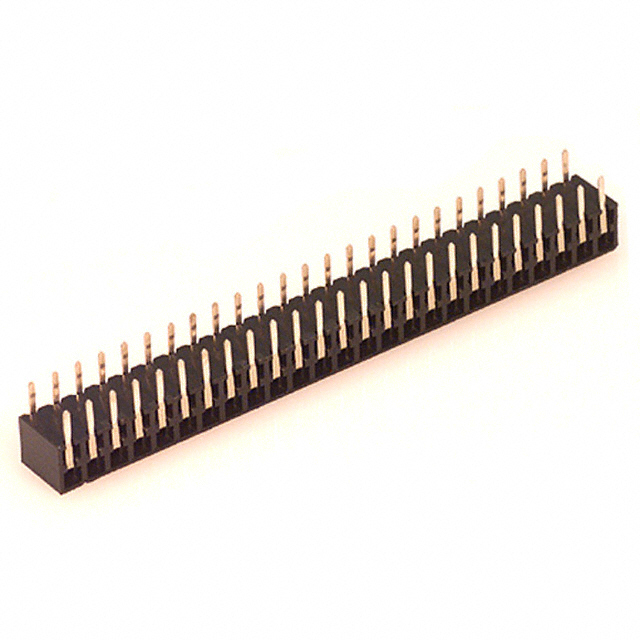

Molex 0872645050	0.079 in	2 mm	0.157 in	4 mm	Automotive General Purpose Telecommunications	125 VAC	15 µin	0.38 µm	2	Solder	Board to Board Cable	All	Push-Pull	2.54 µm	100 µin	Tin-Lead	Female Socket	Gold	2.54 mm	0.1 in	105 ░C	-55 °C	0.079 in	2 mm	Through Hole Right Angle	Black	Square	Receptacle	50
Molex 0872644250	0.079 in	2 mm	0.157 in	4 mm	Automotive General Purpose Telecommunications	125 VAC	15 µin	0.38 µm	2	Solder	Board to Board Cable	All	Push-Pull	2.54 µm	100 µin	Tin-Lead	Female Socket	Gold	2.54 mm	0.1 in	105 ░C	-55 °C	0.079 in	2 mm	Through Hole Right Angle	Black	Square	Receptacle	42
