745-039 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 39POS 0.100

Part	Termination Rows	Material - Insulation	Pitch	Pitch	Termination	Mounting Type	Contact Material	Gender	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Type	Read Out	Card Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 745-039-540-106	1	Polyester Thermoplastic	0.1 "	2.54 mm	Press-Fit Wire Wrap	Through Hole	Copper Alloy	Female	39	0.07 in 1.78 mm	0.054 in 1.37 mm	39	Gold	-40 C	105 ░C	Black	Cantilever	Single	Non Specified - Single Edge	1	30 Áin	0.76 Ám
EDAC Inc. 745-039-522-106	1	Polyester Thermoplastic	0.1 "	2.54 mm	Press-Fit	Through Hole	Copper Alloy	Female	39	0.07 in 1.78 mm	0.054 in 1.37 mm	39	Gold	-40 C	105 ░C	Black	Cantilever	Single	Non Specified - Single Edge	1	30 Áin	0.76 Ám

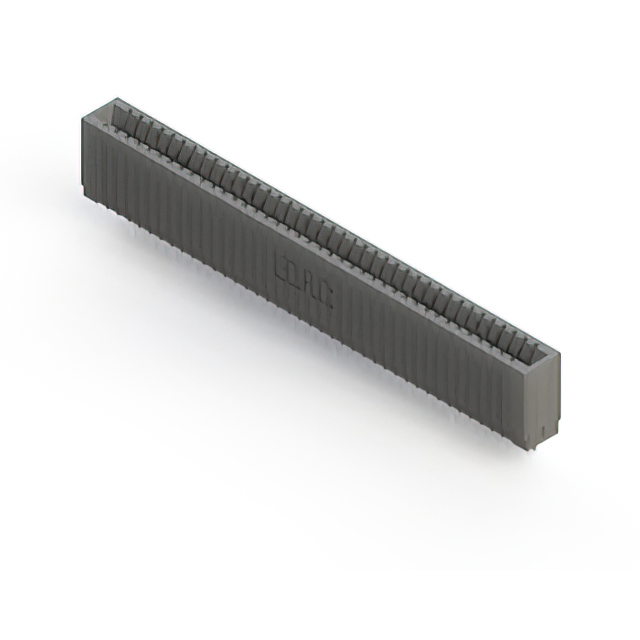

EDAC Inc. 745-039-541-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	Press-Fit Wire Wrap	Through Hole	Copper Alloy	Female	39	0.07 in 1.78 mm	0.054 in 1.37 mm	39	Gold	-40 C	105 ░C	Black	Cantilever	Single	Non Specified - Single Edge	1	30 Áin	0.76 Ám
EDAC Inc. 745-039-540-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	Press-Fit Wire Wrap	Through Hole	Copper Alloy	Female	39	0.07 in 1.78 mm	0.054 in 1.37 mm	39	Gold	-40 C	105 ░C	Black	Cantilever	Single	Non Specified - Single Edge	1	30 Áin	0.76 Ám

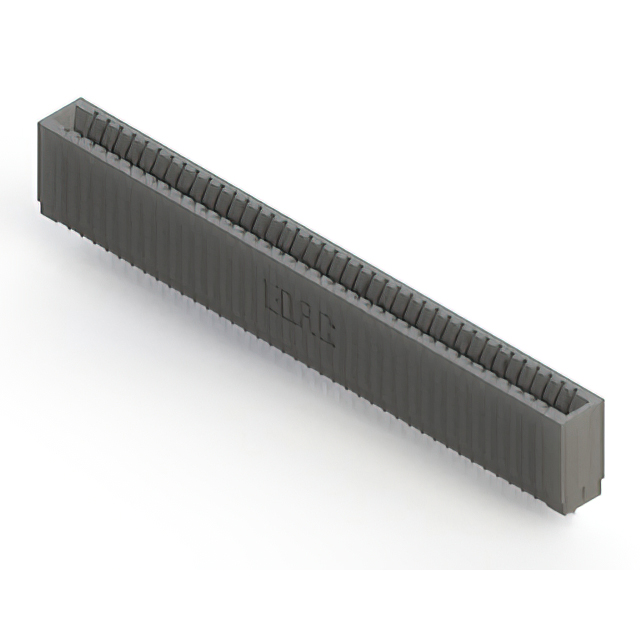

EDAC Inc. 745-039-520-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	Press-Fit	Through Hole	Copper Alloy	Female	39	0.07 in 1.78 mm	0.054 in 1.37 mm	39	Gold	-40 C	105 ░C	Black	Cantilever	Single	Non Specified - Single Edge	1	30 Áin	0.76 Ám
EDAC Inc. 745-039-545-106	1	Polyester Thermoplastic	0.1 "	2.54 mm	Press-Fit	Through Hole	Copper Alloy	Female	39	0.07 in 1.78 mm	0.054 in 1.37 mm	39	Gold	-40 C	105 ░C	Black	Cantilever	Single	Non Specified - Single Edge	1	30 Áin	0.76 Ám
EDAC Inc. 745-039-522-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	Press-Fit	Through Hole	Copper Alloy	Female	39	0.07 in 1.78 mm	0.054 in 1.37 mm	39	Gold	-40 C	105 ░C	Black	Cantilever	Single	Non Specified - Single Edge	1	30 Áin	0.76 Ám

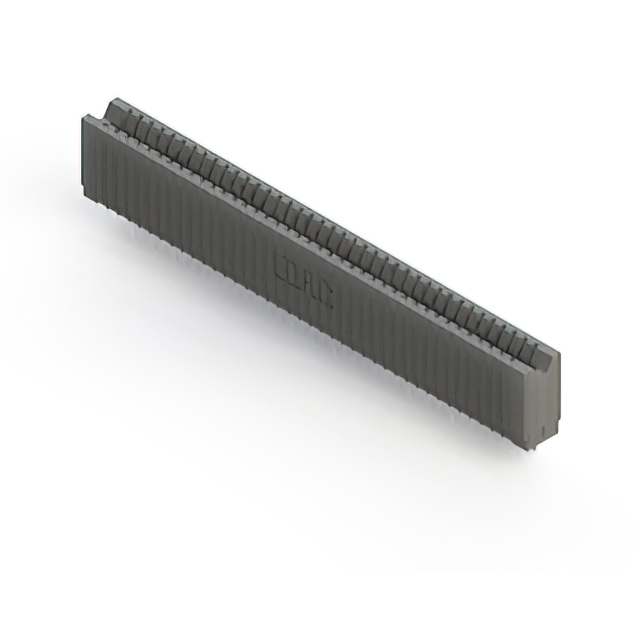

EDAC Inc. 745-039-541-106	1	Polyester Thermoplastic	0.1 "	2.54 mm	Press-Fit Wire Wrap	Through Hole	Copper Alloy	Female	39	0.07 in 1.78 mm	0.054 in 1.37 mm	39	Gold	-40 C	105 ░C	Black	Cantilever	Single	Non Specified - Single Edge	1	30 Áin	0.76 Ám
EDAC Inc. 745-039-525-106	1	Polyester Thermoplastic	0.1 "	2.54 mm	Press-Fit	Through Hole	Copper Alloy	Female	39	0.07 in 1.78 mm	0.054 in 1.37 mm	39	Gold	-40 C	105 ░C	Black	Cantilever	Single	Non Specified - Single Edge	1	30 Áin	0.76 Ám
