ECW-F2685 Series

Catalog

CAP FILM 6.8UF 3% 250VDC RADIAL

Part	Package / Case	Mounting Type	Dielectric Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lead Spacing [x]	Lead Spacing [x]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Applications	Tolerance	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

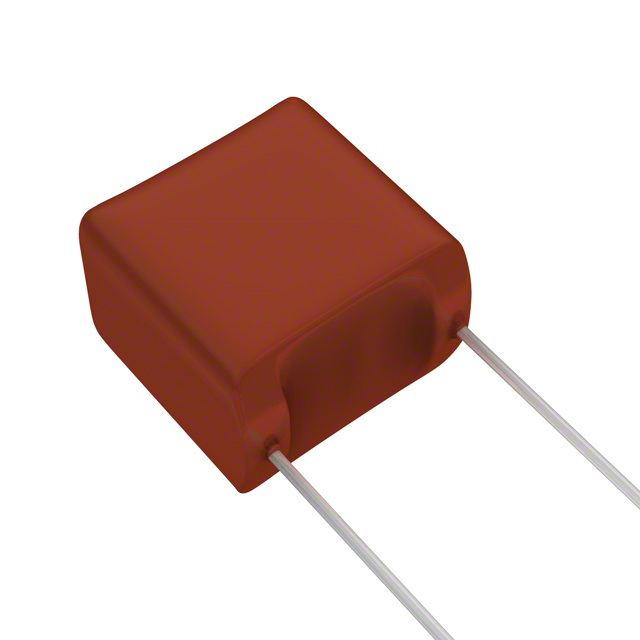

Panasonic Electronic Components ECW-F2685HA	Radial	Through Hole	Polypropylene (PP) Metallized	0.701 in	23.8 mm	0.937 "	17.8 mm	0.787 in	20 mm	250 V	-40 C	105 ░C	0.984 in	25 mm	PC Pins	High Frequency Switching	3 %	6.8 µF

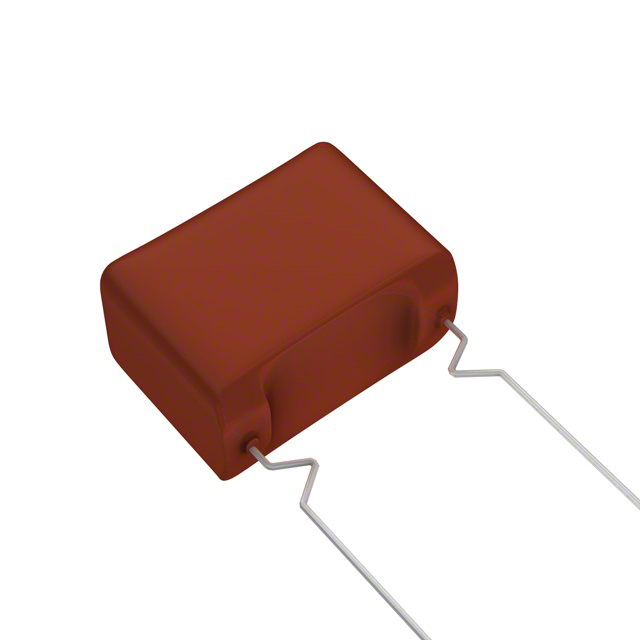

Panasonic Electronic Components ECW-F2685JAQ	Radial	Through Hole	Polypropylene (PP) Metallized	0.701 in	23.8 mm	0.937 "	17.8 mm	0.787 in	20 mm	250 V	-40 C	105 ░C			PC Pins	High Frequency Switching	5 %	6.8 µF	1.26 in	32 mm
